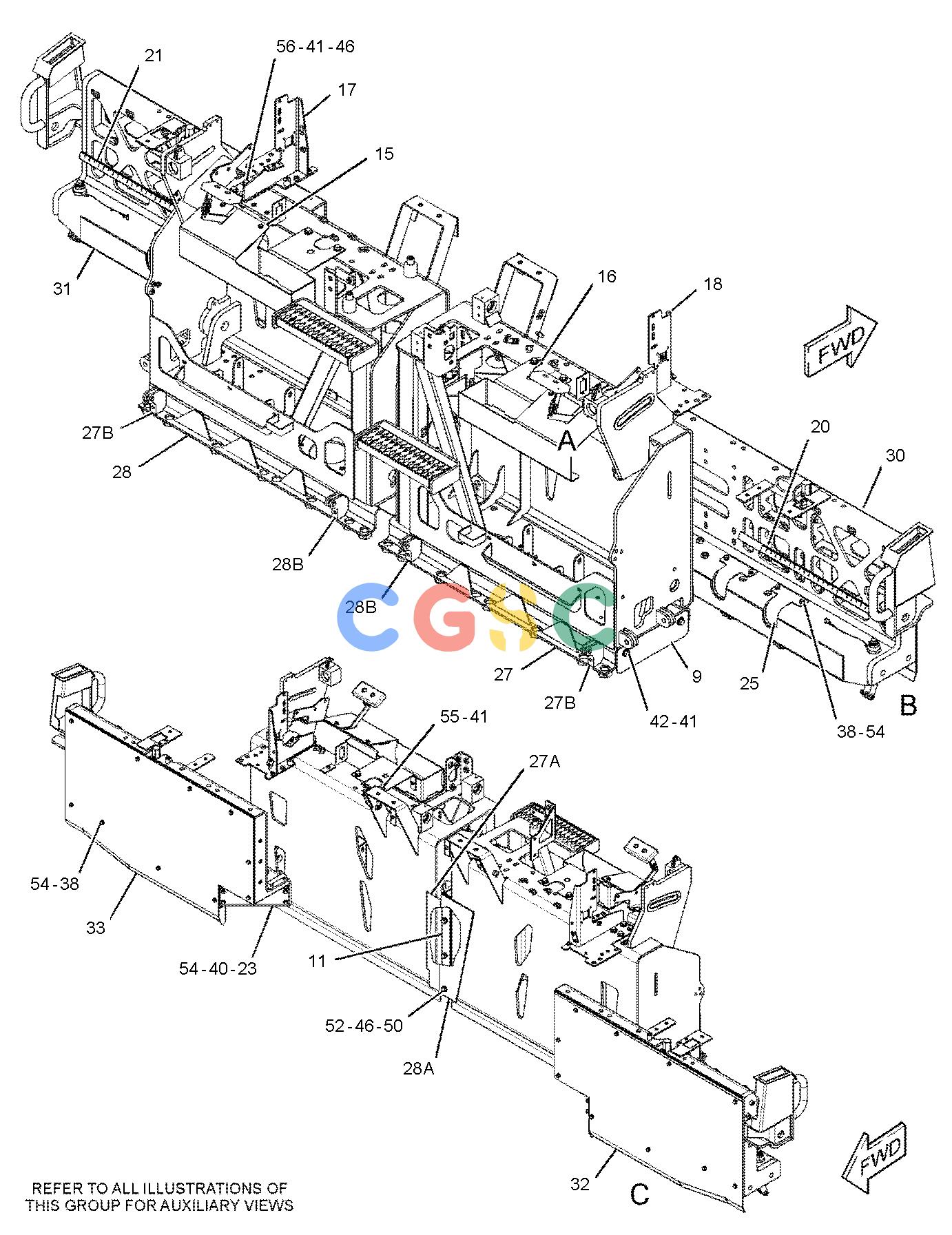

卡特零件查询（AP-655D） 295-3080: FRAME GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
1004 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 253-9037 | [4] | BOLT(3/4-16X1.75-IN) | |
| 2. | 3B-8489 | [2] | FITTING-GREASE(1/8-27 PTF) | |
| 3. | 3P-8680 | [4] | CUP-BEARING | |
| 4. | 3P-8681 | [4] | CONE-BEARING | |
| 5. | 6I-2424 | [2] | PLUG | |
| 6. | 8I-0184 | [6] | NUT-ADJUSTMENT(1-1/4-12-THD) | |
| 7. | 8I-0902 | [4] | SPACER(0.75X1.50X1-IN THK) | |
| 8. | 8I-0903 | [2] | BLOCK-BEARING | |
| 9. | 196-2512 | [2] | PLATE | |
| 10. | 205-6459 | [2] | PIN-LOCK | |
| 11. | 215-1859 | [1] | PLATE | |
| 12. | 252-5218 | [2] | LANYARD(371-MM) | |
| 13. | 254-3792 | [2] | SHAFT AS | |
| 14. | 254-3796 | [2] | SLEEVE AS-ADJUSTMENT | |
| 15. | 254-5939 | [1] | BOX AS(LH) | |
| 16. | 254-5942 | [1] | BOX AS(RH) | |
| 17. | 337-9993C | [1] | BRACKET AS(LH) | |
| 18. | 337-9994C | [1] | BRACKET AS(RH) | |
| 19. | 276-9666 | [2] | BRACKET | |
| 20. | 277-3185 | [1] | FILM-SCALE(1-IN TO 28-IN) | |
| 21. | 277-3187 | [1] | FILM-SCALE(1-IN TO 28-IN) | |
| 22. | 281-6687 | [2] | PAD | |
| 23. | 281-7824 | [2] | PLATE | |
| 24. | 282-1889 | [4] | ADJUSTER AS | |
| 25. | 282-2495 | [4] | COVER | |
| 26. | 285-8408 | [2] | ARM | |
| 27. | 292-6956 | [1] | FRAME AS-MAIN(RH) | |
| 27A. | 215-1860 | [1] | PLATE | |
| 27B. | 256-7273 | [2] | HINGE | |
| 28. | 292-6957 | [1] | FRAME AS-MAIN(LH) | |
| 28A. | 215-1861 | [1] | PLATE | |
| 28B. | 256-7273 | [2] | HINGE | |
| 29. | 294-7378 | [2] | NUT-JAM(1-1/4-12-THD) | |
| 30. | 295-5602 | [1] | FRAME AS(EXTENDER, RH) | |
| 31. | 302-5705 | [1] | FRAME AS(EXTENDER, LH) | |
| 32. | 303-5171 | [1] | COVER AS(LH) | |
| 33. | 303-5172 | [1] | COVER AS(RH) | |
| 34. | 307-0002 | [2] | NUT-ADJUSTING | |
| 35. | 1D-6306 | [4] | NUT(1-8-THD) | |
| 36. | 3E-9865 | [2] | LOCKNUT(1/4-20-THD) | |
| 37. | 3K-0360 | [2] | SEAL-O-RING | |
| 38. | 4L-6454 | [28] | BOLT(3/8-16X1-IN) | |
| 39. | 4M-6425 | [4] | BOLT(5/16-18X1-IN) | |
| 40. | 5M-3062 | [8] | BOLT(3/8-16X0.75-IN) | |
| 41. | 5P-1076 | [30] | WASHER-HARD(13.5X30X4-MM THK) | |
| 42. | 5P-2228 | [4] | BOLT(1/2-13X1-IN) | |
| 43. | 5P-2675 | [2] | BOLT(1/4-20X1.75-IN) | |
| 44. | 6D-2928 | [2] | BOLT(1/4-20X1.125-IN) | |
| 45. | 6V-4432 | [2] | BOLT(1/2-13X4-IN) | |
| 46. | 6V-8188 | [15] | NUT(1/2-13-THD) | |
| 47. | 6V-8189 | [8] | NUT(5/16-18-THD) | |
| 48. | 6V-8801 | [8] | NUT(3/8-16-THD) | |
| 49. | 6V-8918 | [4] | BOLT(5/16-18X1.25-IN) | |
| 50. | 8C-4436 | [3] | BOLT(1/2-13X1.375-IN) | |
| 51. | 8T-4205 | [4] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 52. | 8T-4223 | [6] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 53. | 8T-4224 | [16] | WASHER-HARD(8.8X16X2-MM THK) | |
| 54. | 8T-4896 | [44] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 55. | 8T-8917 | [4] | BOLT(1/2-13X1.25-IN) | |
| 56. | 8T-8919 | [8] | BOLT(1/2-13X1.75-IN) | |
| 57. | 9X-6270 | [8] | BOLT-SPECIAL | |
| 58. | 4M-5281 | [4] | BOLT(1/4-20X0.75-IN) | |
| 59. | 5P-4115 | [4] | WASHER-HARD(7.2X19X2-MM THK) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
