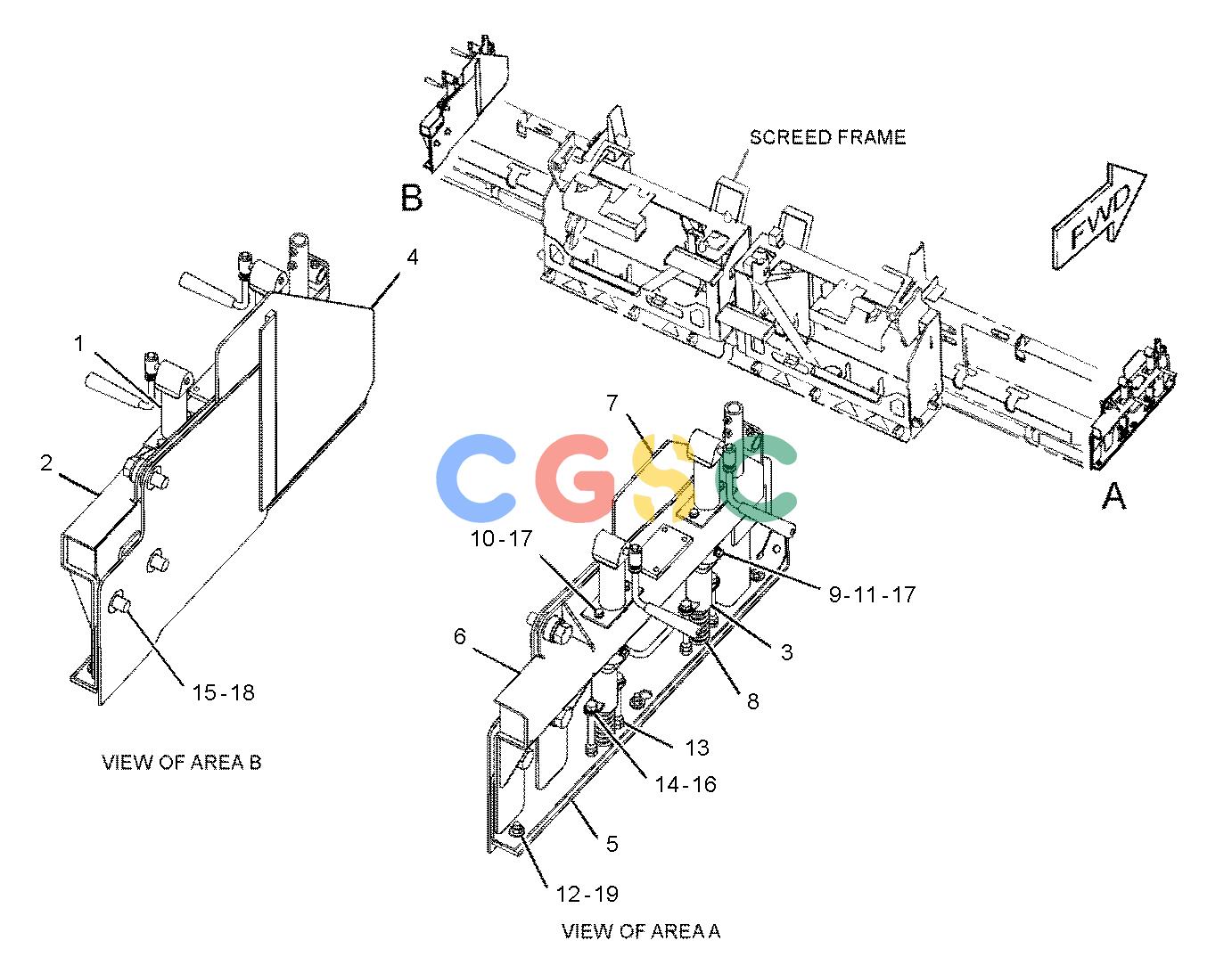

卡特零件查询（AP-655D） 253-4735: GATE GP-END
广数供应链运营团队, 17 02月, 2025，浏览：
540 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 247-7616 | [4] | ACTUATOR GP(END GATE) | |
| 2. | 366-2487 | [1] | SUPPORT AS(LH) | |
| 3. | 254-6836 | [4] | SUPPORT AS | |
| 4. | 254-6841 | [1] | PLATE AS(LH) | |
| 5. | 351-4472 | [2] | SHOE AS | |
| | | | (EACH INCLUDES) |
| | 112-9073M | [3] | STUD-WELD(M12X1.75X21.1-MM) | |
| 6. | 366-2488 | [1] | SUPPORT AS(RH) | |
| 7. | 256-4920 | [1] | PLATE AS(RH) | |
| 8. | 258-0735 | [4] | SPRING | |
| 9. | 2K-4973 | [4] | LOCKNUT(3/8-16-THD) | |
| 10. | 4L-6454 | [8] | BOLT(3/8-16X1-IN) | |
| 11. | 4L-6459 | [4] | BOLT(3/8-16X2.5-IN) | |
| 12. | 5P-1076 | [6] | WASHER-HARD(13.5X30X4-MM THK) | |
| 13. | 6V-8188 | [8] | NUT(1/2-13-THD) | |
| 14. | 7X-0335 | [8] | BOLT(1/2-13X5.25-IN) | |
| 15. | 7X-0405 | [6] | BOLT(1-8X2.75-IN) | |
| 16. | 8T-4223 | [8] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 17. | 8T-4896B | [24] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 18. | 8T-5361 | [6] | WASHER-HARD(28X49X5-MM THK) | |
| 19. | 8T-4244M | [6] | NUT(M12X1.75-THD) | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
