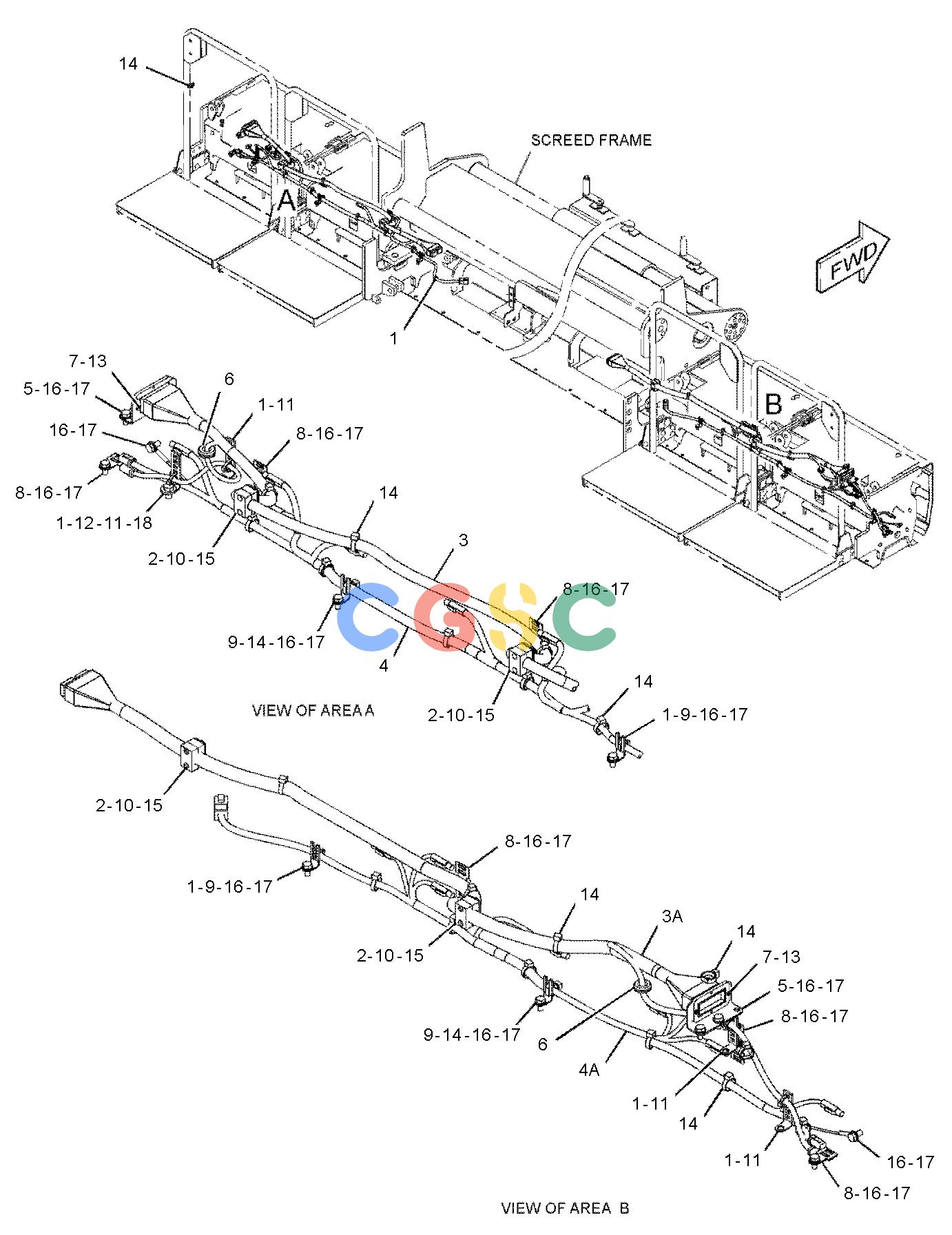

| 1. | 3S-2093 | [7] | STRAP-CABLE | |
| 2. | 7V-5628 | [4] | PLATE | |
| 3. | 354-2411 | [1] | HARNESS AS-SCREED(EXTENSION CONTROL, LH) | |
| 3A. | 354-2411 | [1] | HARNESS AS-SCREED(EXTENSION CONTROL, RH) | |
| | | | (EACH HARNESS AS-SCREED INCLUDES) |
| | 6I-4348 | [2] | BOOT(40-PIN) | |
| | 9X-3401 | [31] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 9X-0141 | [1] | PLUG AS-CONNECTOR(40-PIN) | |
| | 3E-8557M | [1] | BOLT(M5X0.8X39.37-MM) | |
| | 3E-4367 | [1] | RING-RETAINING | |
| | 9X-3490 | [2] | SEAL-CONNECTOR(40-PIN) | |
| | 155-2270 | [1] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 8T-8737 | [14] | PLUG-SEAL | |
| | 9X-1343 | [1] | RECEPTACLE AS-CONNECTOR(40-PIN) | |
| | 180-9340 | [37] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| | 108-1304E | | TUBE-HEAT SHRINK(33-MM DIA)(21-CM) | |
| 4. | | [1] | HARNESS AS-SCREED(EXTENSION, HEATER, TAMPER, LH) |
| 4A. | | [1] | HARNESS AS-SCREED(EXTENSION, HEATER, TAMPER, RH) |
| | | | (EACH HARNESS AS-SCREED INCLUDES) |
| | 7T-0093 | [3] | PIN-CONNECTOR(12-GA TO 14-GA) | |
| | 129-7163 | [8] | PLUG AS-CONNECTOR(1-PIN) | |
| | 177-9648 | [1] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 8T-8737 | [3] | PLUG-SEAL | |
| | 177-9645 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | 177-9653 | [1] | KIT-RECEPTACLE(4-PIN) | |
| | | | (EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE) |
| | 7T-0094 | [2] | SOCKET-CONNECTOR(12-GA TO 14-GA) | |
| | 8N-1541 | [8] | SOCKET-CONNECTOR(12-GA TO 14-GA) | |
| | 2L-8069 | [2] | TERMINAL-RING(2-GA TO 10-GA, 3/8-IN SCREW) | |
| | 119-3662E | | TUBE-HEAT SHRINK(10.85-MM DIA)(13-CM) | |
| 5. | 354-2415 | [2] | PLATE AS | |
| 6. | 061-8844 | [2] | GROMMET | |
| 7. | 096-6166 | [4] | WASHER-HARD(4.5X9X1-MM THK) | |
| 8. | 130-5300 | [12] | CLIP | |
| 9. | 132-5789 | [4] | CLIP(LADDER) | |
| 10. | 1G-9959 | [8] | CLAMP | |
| 11. | 352-3969 | [4] | CLIP(LADDER) | |
| 12. | 5P-1076 | [1] | WASHER-HARD(13.5X30X4-MM THK) | |
| 13. | 6V-9491M | [4] | SCREW-MACHINE(M4X0.7X20-MM) | |
| 14. | 7K-1181 | [24] | STRAP-CABLE | |
| 15. | 8C-8451M | [8] | BOLT(M6X1X40-MM) | |
| 16. | 8T-4121 | [16] | WASHER-HARD(11X21X2.5-MM THK) | |
| 17. | 8T-4137M | [16] | BOLT(M10X1.5X20-MM) | |
| 18. | 8T-4179M | [1] | BOLT(M12X1.75X20-MM) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
