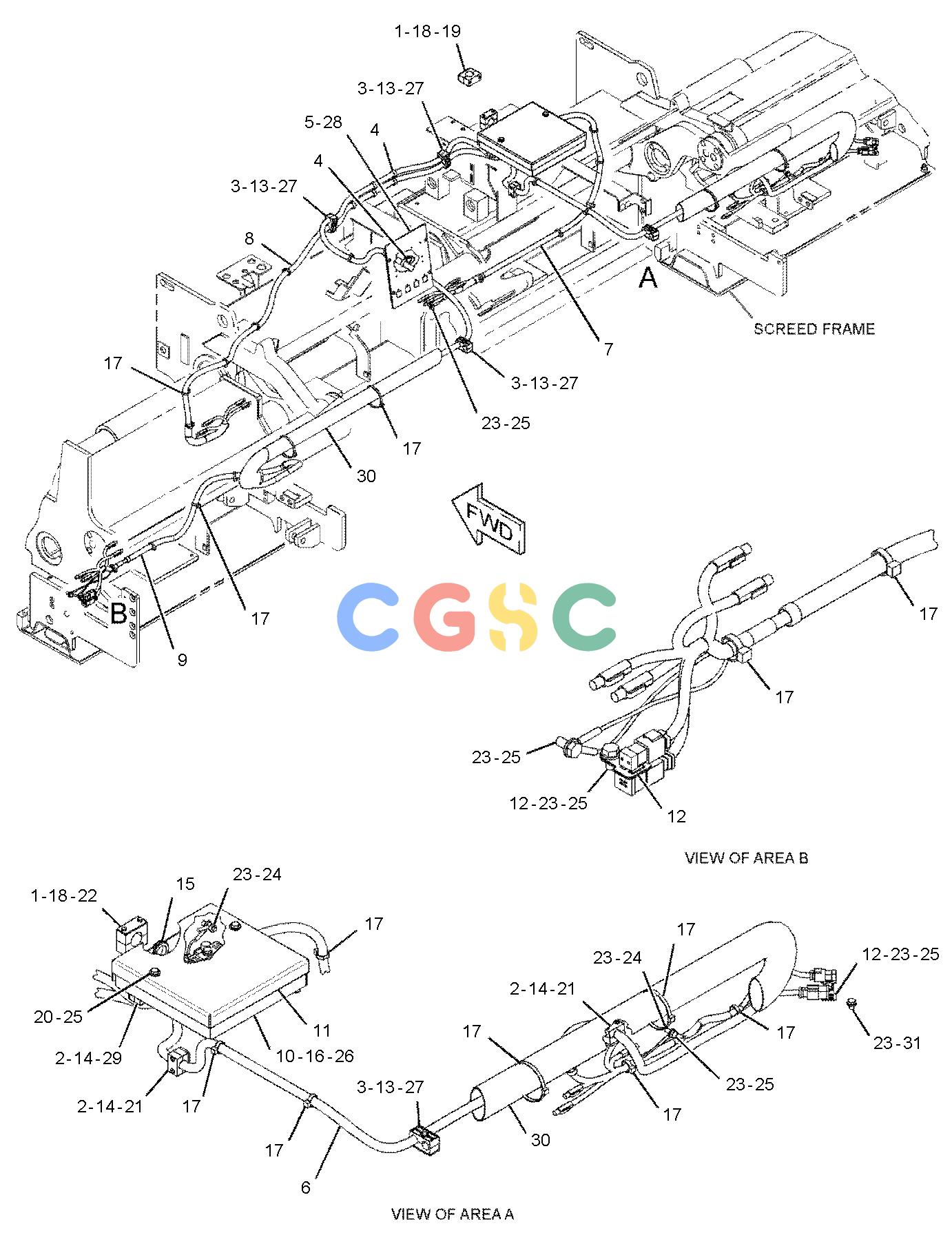

卡特零件查询（AP-655D） 351-0901: WIRING GP-SCREED HEATER
广数供应链运营团队, 17 02月, 2025，浏览：
980 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7R-7951 | [2] | PLATE | |
| 2. | 7V-5628 | [6] | PLATE | |
| 3. | 102-8705 | [4] | PLATE(TOP) | |
| 4. | 177-2215 | [4] | STRAP-DUAL CLAMP | |
| 5. | 291-3876 | [1] | PANEL GP-CONTROL(SCREED) | |
| | 229-3128 | [1] | PANEL AS | |
| 6. | 352-0662Y | [1] | HARNESS AS-WIRING(EXTENSION, RH) | |
| 7. | 352-0663Y | [1] | HARNESS AS-WIRING(MAIN, RH) | |
| 8. | 352-0664Y | [1] | HARNESS AS-WIRING(MAIN, LH) | |
| 9. | 352-0665Y | [1] | HARNESS AS-WIRING(EXTENSION, LH) | |
| 10. | 352-0667Y | [1] | BOX GP-SCREED CONTROL | |
| 11. | 358-4402 | [1] | COVER | |
| 12. | 130-5300 | [4] | CLIP | |
| 13. | 154-6583 | [8] | CLAMP-HALF | |
| 14. | 1G-9959 | [12] | CLAMP | |
| 15. | 3H-2900 | [1] | GROMMET | |
| 16. | 5P-4115 | [3] | WASHER-HARD(7.2X19X2-MM THK) | |
| 17. | 7K-1181 | [29] | STRAP-CABLE | |
| 18. | 7R-7941 | [4] | CLAMP | |
| 19. | 7X-2535M | [2] | BOLT(M6X1X60-MM) | |
| 20. | 7X-7729 | [2] | WASHER(11X25X3-MM THK) | |
| 21. | 8C-8451M | [8] | BOLT(M6X1X40-MM) | |
| 22. | 8T-3844M | [2] | BOLT(M6X1X70-MM) | |
| 23. | 8T-4121 | [9] | WASHER-HARD(11X21X2.5-MM THK) | |
| 24. | 8T-4133M | [2] | NUT(M10X1.5-THD) | |
| 25. | 8T-4137M | [8] | BOLT(M10X1.5X20-MM) | |
| 26. | 8T-4138M | [3] | BOLT(M6X1X20-MM) | |
| 27. | 8T-6912M | [4] | BOLT(M8X1.25X50-MM) | |
| 28. | 9X-2044M | [4] | SCREW-TRUSS HEAD(M6X1X16-MM) | |
| 29. | 9X-2480M | [8] | BOLT(M6X1X45-MM) | |
| 30. | 160-2251G | | SLEEVE-ABRASION(39.4-IN EACH) | |
| 31. | 8T-4191M | [1] | BOLT(M10X1.5X16-MM) | |
| | G | | ORDER BY THE INCH |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
