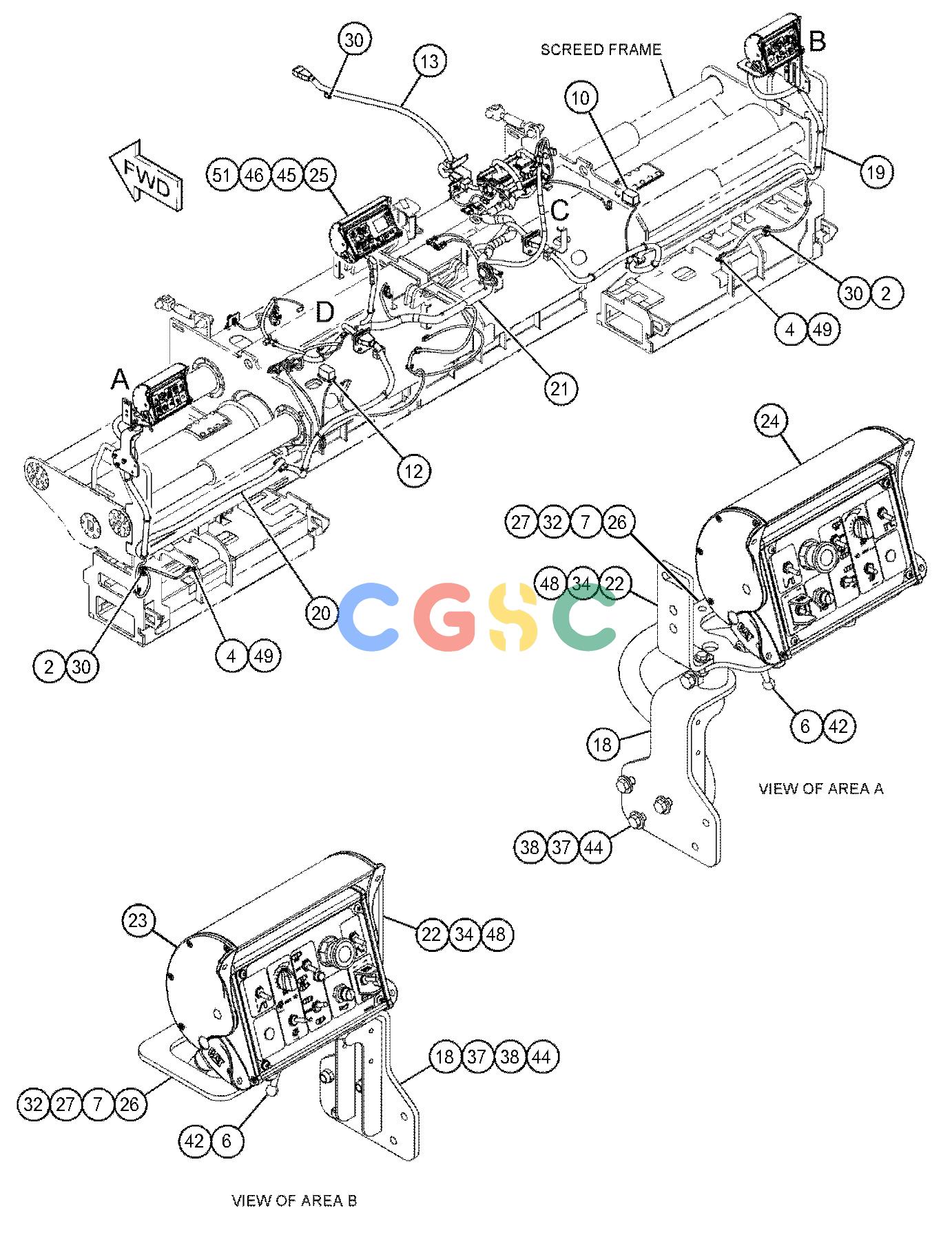

卡特零件查询（AP-655D） 364-6477: WIRING GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
594 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6I-1418 | [4] | SPACER(8.2X12.7X28.7-MM THK) | |
| 2. | 7K-1181 | [30] | STRAP-CABLE | |
| 3. | 8T-9655 | [8] | MOUNT-ISOLATION(ISOLATION) | |
| 4. | 116-0118 | [2] | CLIP | |
| 5. | 163-1201 | [1] | HORN AS(24-VOLT, LOW TONE) | |
| 6. | 203-3977 | [2] | LEVER | |
| 7. | 344-6323 | [4] | SPACER(13.5X30X11-MM THK) | |
| 8. | 288-9418 | [2] | SUPPORT | |
| 9. | 291-3697Y | [1] | WIRING GP-SCREED(LH) | |
| 10. | 291-3698Y | [1] | LAMP GP-SIGNAL | |
| 11. | 293-5341Y | [1] | WIRING GP-SCREED(RH) | |
| 12. | 293-5354Y | [1] | LIGHTING GP-ROADING | |
| 13. | 295-9765 | [1] | HARNESS AS-SCREED(PAVER TO SCREED) | |
| | 231-9895E | | CONDUIT-FLEXIBLE(21.9-MM ID)(133-CM) | |
| | 9X-7144 | [2] | PLUG AS-CONNECTOR(24-PIN) | |
| | | | (EACH INCLUDES) |
| | 3E-8558M | [1] | BOLT(M5X0.8X39.37-MM) | |
| | 3E-4367 | [1] | RING-RETAINING | |
| | 9X-3265 | [2] | SEAL-CONNECTOR(24-PIN) | |
| | 9G-3695 | [4] | PLUG-SEAL | |
| | 9X-3402 | [44] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | | | -OR- |
| | 126-1768 | [44] | SOCKET-CONNECTOR(14-GA TO 16-GA) | |
| 14. | 297-1331 | [1] | SUPPORT | |
| 15. | 299-7218 | [1] | SUPPORT AS | |
| | 178-8508 | [1] | PLATE AS | |
| | 178-8510 | [1] | PLATE-WELD | |
| 16. | 304-5687 | [1] | CONTROL GP-UNPROGRAMMED | |
| 17. | 314-8922 | [1] | RESISTOR AS-CONNECTION | |
| 18. | 364-6474 | [2] | MOUNT AS | |
| 19. | 364-6485Y | [1] | HARNESS AS-SCREED(RH) | |
| 20. | 364-6487Y | [1] | HARNESS AS-SCREED(LH) | |
| 21. | 364-6488Y | [1] | HARNESS AS-CHASSIS | |
| 22. | 367-1953 | [2] | BRACKET | |
| 23. | 383-2076Y | [1] | BOX GP-SCREED CONTROL(RH) | |
| 24. | 383-2077Y | [1] | BOX GP-SCREED CONTROL(LH) | |
| 25. | 383-2078Y | [1] | BOX GP-SCREED CONTROL | |
| 26. | 385-5389 | [2] | BRACKET AS | |
| 27. | 099-3649M | [4] | BOLT(M8X1.25X40-MM) | |
| 28. | 130-5300 | [8] | CLIP | |
| 29. | 131-3540M | [4] | LOCKNUT(M8X1.25-THD) | |
| 30. | 132-5789 | [3] | CLIP(LADDER) | |
| 31. | 139-0428 | [10] | CLAMP | |
| 32. | 198-4777 | [4] | WASHER-HARD(11X25X10-MM THK) | |
| 33. | 1R-5396M | [10] | BOLT(M6X1X35-MM) | |
| 34. | 5P-4116 | [4] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 35. | 6V-3964 | [4] | WASHER-HARD(8.8X25.5X5-MM THK) | |
| 36. | 7X-2537M | [1] | BOLT(M8X1.25X35-MM) | |
| 37. | 7X-7729 | [6] | WASHER(11X25X3-MM THK) | |
| 38. | 8T-0389M | [6] | LOCKNUT(M10X1.5-THD) | |
| 39. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 40. | 8T-4133M | [1] | NUT(M10X1.5-THD) | |
| 41. | 8T-4137M | [1] | BOLT(M10X1.5X20-MM) | |
| 42. | 8T-4179M | [2] | BOLT(M12X1.75X20-MM) | |
| 43. | 8T-4189M | [15] | BOLT(M8X1.25X20-MM) | |
| 44. | 8T-4196M | [6] | BOLT(M10X1.5X35-MM) | |
| 45. | 8T-4224 | [20] | WASHER-HARD(8.8X16X2-MM THK) | |
| 46. | 8T-4908M | [2] | BOLT(M8X1.25X25-MM) | |
| 47. | 8T-6912M | [4] | BOLT(M8X1.25X50-MM) | |
| 48. | 8T-7547M | [4] | BOLT(M8X1.25X30-MM) | |
| 49. | 9M-1974 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 50. | 296-1288Y | [1] | ELECTRONICS GP-IMPLEMENT | |
| 51. | 391-3128Y | [1] | ELECTRONICS GP-MONITOR | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
| | Y | | SEPARATE ILLUSTRATION |
