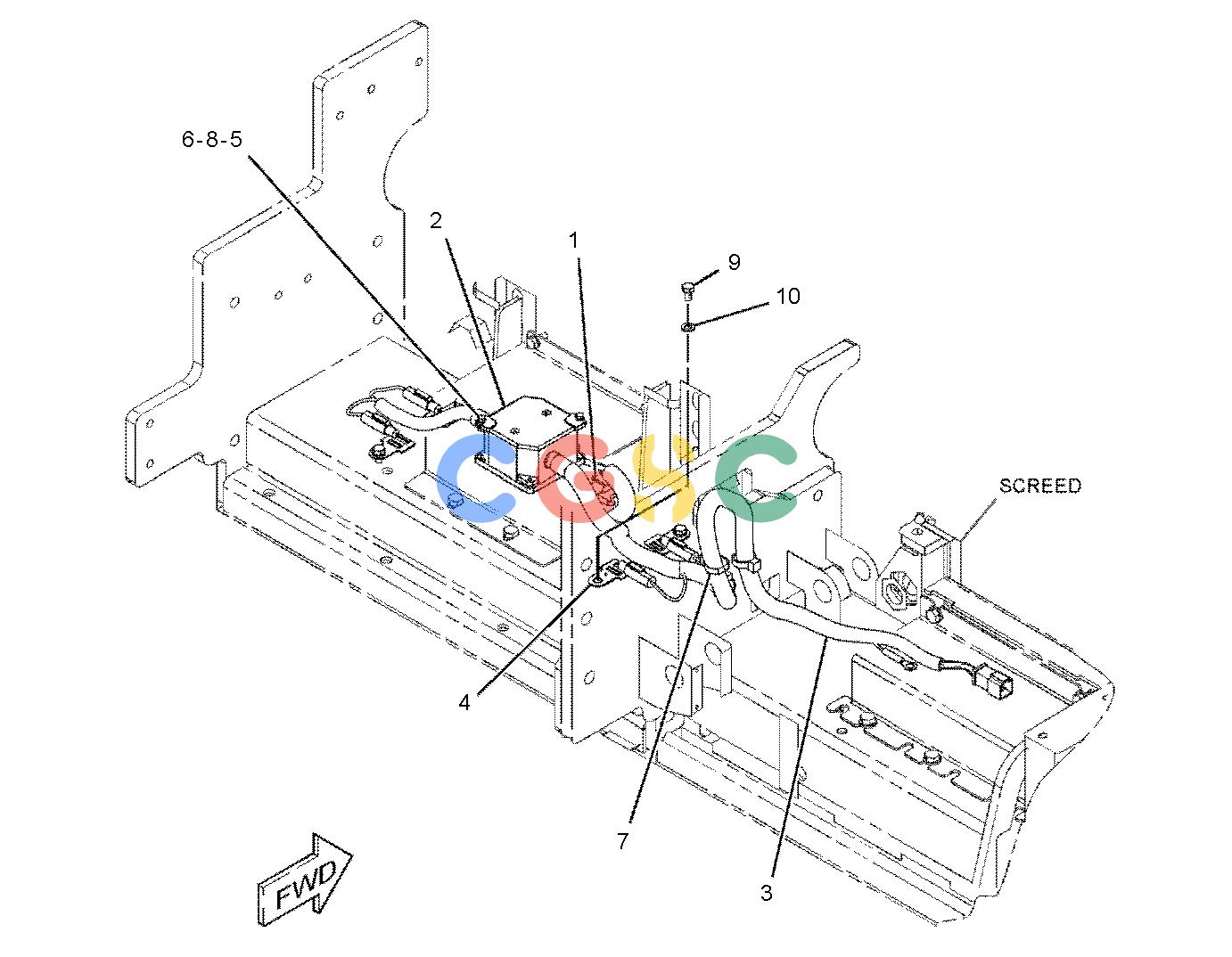

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 304-4671Y | [1] | HARNESS AS-BOX(LH)(LH) | ||
| 304-4670Y | [1] | HARNESS AS-BOX(RH)(RH) | ||
| 390-6862Y | [1] | HARNESS AS-SCREED(RH) | ||
| 390-6863Y | [1] | HARNESS AS-SCREED(LH) | ||
| 6V-3918M | [4] | BOLT(M8X1.25X50-MM) | ||
| 299-7249 | [2] | BRACKET | ||
| 131-3540M | [4] | LOCKNUT(M8X1.25-THD) | ||
| 7K-1181 | [22] | STRAP-CABLE | ||
| 8T-4224 | [8] | WASHER-HARD(8.8X16X2-MM THK) | ||
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
