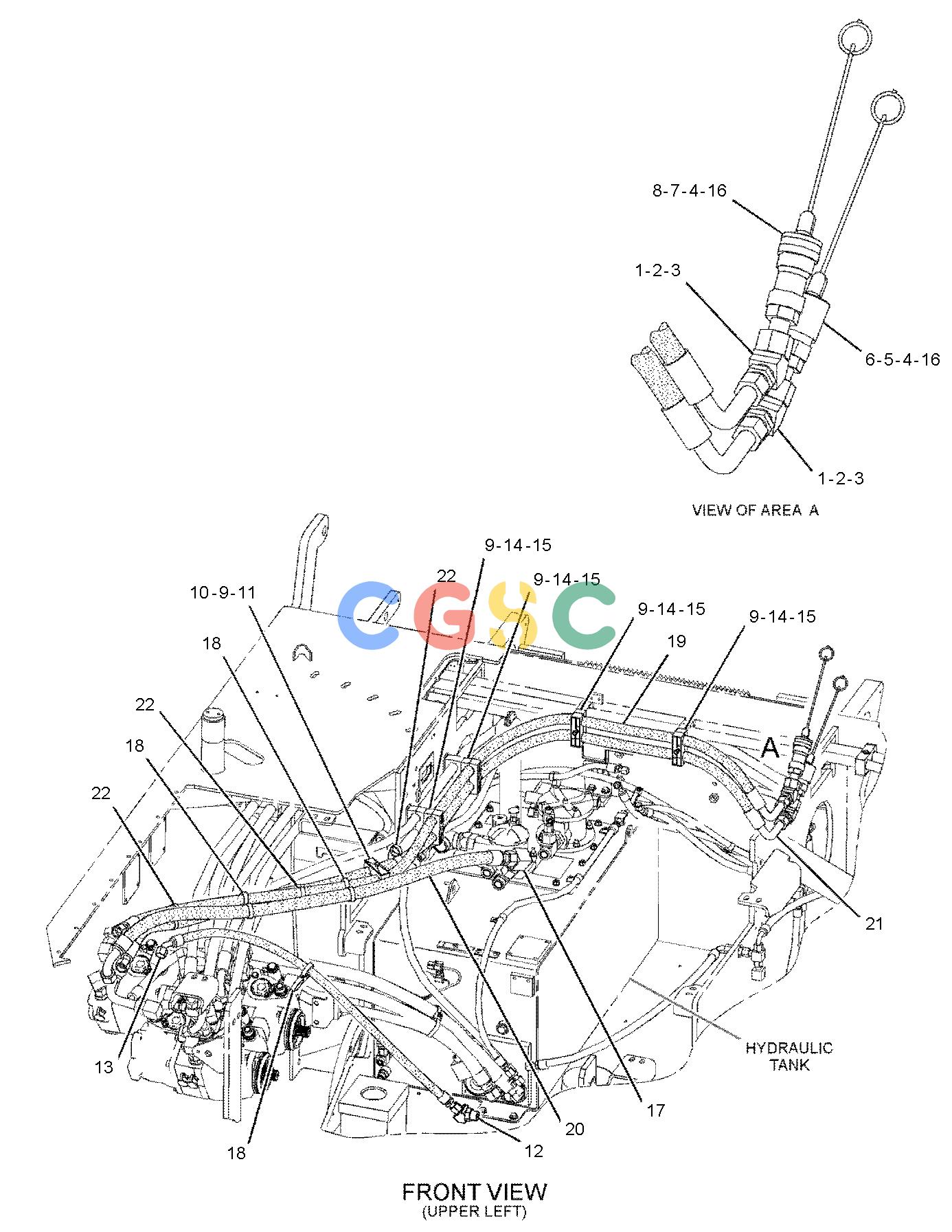

卡特零件查询（AP-655D） 270-3548: LINES GP-TAMPER
广数供应链运营团队, 17 02月, 2025，浏览：
282 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 124-0195 | [2] | ELBOW | |
| 2. | 5K-9090 | [2] | SEAL-O-RING | |
| 3. | 6V-9746 | [2] | SEAL-O-RING | |
| 4. | 164-5548 | [2] | COUPLING AS | |
| | | | (EACH INCLUDES) |
| | 4I-6141 | [1] | ADAPTER | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 5. | 173-7638J | [1] | FITTING AS | |
| 6. | 165-5695 | [1] | CAP-DUST | |
| 7. | 173-7639L | [1] | COUPLING GP | |
| 8. | 165-5694 | [1] | PLUG-DUST | |
| 9. | 154-4884 | [10] | CLAMP-HALF | |
| 10. | 207-4499 | [1] | PLATE-COVER | |
| 11. | 8T-6869M | [1] | BOLT(M8X1.25X60-MM) | |
| 12. | 153-6232 | [1] | ELBOW AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| | 8T-0120 | [1] | ELBOW | |
| 13. | 106-5725I | [1] | HOSE AS | |
| 14. | 154-4892M | [4] | BOLT-STACKING(M8X1.25X61-MM) | |
| 15. | 206-0452 | [4] | PLATE | |
| 16. | 2P-1293 | [2] | LOCKNUT(1-3/16-12-THD) | |
| 17. | 148-8352 | [1] | ELBOW AS | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 6V-9854 | [1] | ELBOW(SWIVEL) | |
| 18. | 178-3620 | [3] | STRAP-DUAL CLAMP | |
| 19. | 279-1215I | [1] | HOSE AS | |
| 20. | 279-1212I | [1] | HOSE AS | |
| 21. | 279-1213I | [1] | HOSE AS | |
| 22. | 177-2215 | [3] | STRAP-DUAL CLAMP | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 191-6944JL | [1] | KIT-SEAL | |
| | | | (INCLUDES SEALS) |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | L | | KIT MARKED L SERVICES PART(S) MARKED L |
| | M | | METRIC PART |
