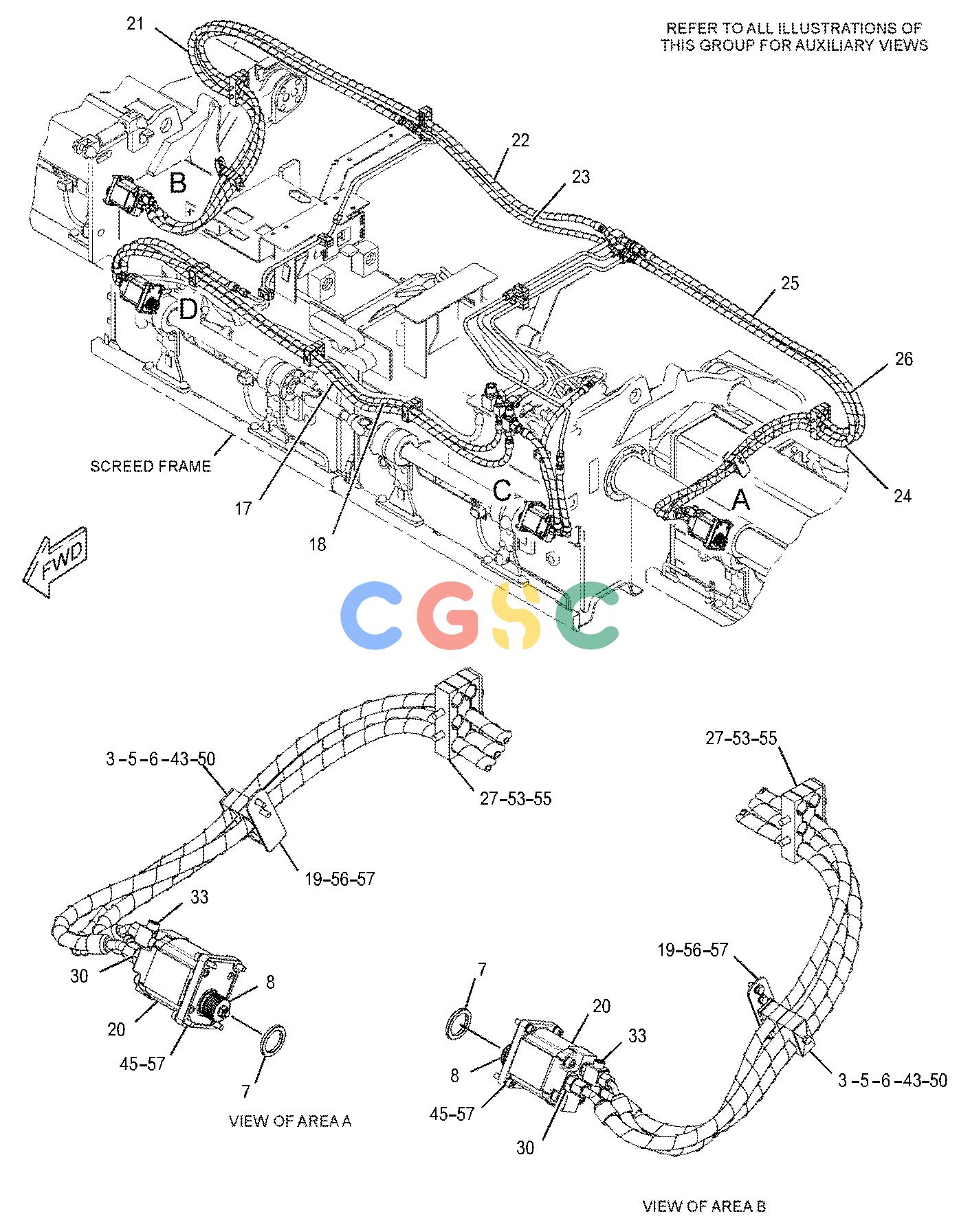

卡特零件查询（AP-655D） 350-5989: LINES GP-TAMPER
广数供应链运营团队, 17 02月, 2025，浏览：
134 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7V-5628C | [3] | PLATE | |
| 2. | 102-8703 | [3] | PLATE-COVER | |
| 3. | 102-8705C | [6] | PLATE(TOP) | |
| 4. | 107-4749C | [1] | PLATE | |
| 5. | 206-0451CM | [5] | BOLT-STACKING(M8X1.25X44-MM) | |
| 6. | 206-0452C | [5] | PLATE | |
| 7. | 242-2912 | [4] | RING | |
| 8. | 242-3085 | [4] | COUPLING | |
| 9. | 350-5994I | [1] | HOSE AS | |
| 10. | 383-8896 | [1] | TUBE AS | |
| 11. | 350-5999I | [1] | HOSE AS | |
| 12. | 350-6001I | [1] | HOSE AS | |
| 13. | 383-8904 | [1] | TUBE AS | |
| 14. | 383-8903 | [1] | TUBE AS | |
| 15. | 383-8905 | [1] | TUBE AS | |
| 16. | 351-9948I | [1] | HOSE AS | |
| 17. | 351-9949I | [1] | HOSE AS | |
| 18. | 351-9950I | [1] | HOSE AS | |
| 19. | 356-5745 | [2] | PLATE AS | |
| 20. | 357-2888Y | [4] | MOTOR GP-GEAR | |
| 21. | 358-3141I | [1] | HOSE AS | |
| 22. | 358-3142I | [1] | HOSE AS | |
| 23. | 358-3143I | [1] | HOSE AS | |
| 24. | 364-6014I | [1] | HOSE AS | |
| 25. | 364-6015I | [1] | HOSE AS | |
| 26. | 364-6016I | [1] | HOSE AS | |
| 27. | 365-4506C | [2] | CLAMP AS | |
| 29. | 099-3649M | [2] | BOLT(M8X1.25X40-MM) | |
| 30. | 148-8345 | [8] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8638 | [1] | CONNECTOR | |
| 31. | 148-8375 | [1] | ELBOW AS | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8981 | [1] | ELBOW | |
| 32. | 148-8427 | [2] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 6V-8398 | [3] | SEAL-O-RING | |
| | 8T-6895 | [1] | TEE-UNION | |
| 33. | 148-8435 | [2] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 6V-8781 | [1] | TEE | |
| 34. | 148-8439 | [2] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 6V-8774 | [1] | TEE | |
| 35. | 148-8444 | [1] | TEE AS-SWIVEL | |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-9837 | [1] | TEE-SWIVEL | |
| 36. | 148-8449 | [1] | TEE AS-SWIVEL | |
| | 6V-9746 | [2] | SEAL-O-RING | |
| | 6V-9839 | [1] | TEE-SWIVEL | |
| 37. | 148-8455 | [1] | UNION AS | |
| | 6V-8997 | [1] | UNION | |
| | 6V-9746 | [2] | SEAL-O-RING | |
| 38. | 148-8457 | [1] | UNION AS(STRAIGHT) | |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-8995 | [1] | UNION(STRAIGHT) | |
| 39. | 154-4879 | [6] | CLAMP-HALF | |
| 40. | 164-5577 | [1] | ELBOW AS | |
| | 5K-9090 | [2] | SEAL-O-RING | |
| | 6V-8984 | [1] | ELBOW | |
| 41. | 164-6862 | [1] | TEE AS | |
| | 6V-9160 | [1] | TEE-FACE SEAL | |
| | 6V-9746 | [3] | SEAL-O-RING | |
| 42. | 1G-8781 | [2] | CLAMP | |
| 43. | 222-9820C | [22] | CLAMP-HALF | |
| 44. | 2P-1293 | [2] | LOCKNUT(1-3/16-12-THD) | |
| 45. | 289-9555M | [16] | BOLT-SOCKET HEAD(M8X1.25X30-MM) | |
| 46. | 6V-8398 | [4] | SEAL-O-RING | |
| 47. | 6V-9169 | [4] | NUT(13/16-16-THD) | |
| 48. | 6V-9172 | [1] | NUT(1-7/16-12-THD) | |
| 49. | 7V-5626C | [6] | CLAMP | |
| 50. | 7X-0818M | [5] | BOLT(M8X1.25X45-MM) | |
| 51. | 7X-2533M | [2] | BOLT(M6X1X35-MM) | |
| 52. | 7X-2537M | [1] | BOLT(M8X1.25X35-MM) | |
| 53. | 7X-7729C | [4] | WASHER(11X25X3-MM THK) | |
| 54. | 8C-8451M | [4] | BOLT(M6X1X40-MM) | |
| 55. | 8T-4178CM | [4] | BOLT(M10X1.5X90-MM) | |
| 56. | 8T-4189M | [4] | BOLT(M8X1.25X20-MM) | |
| 57. | 8T-4224 | [20] | WASHER-HARD(8.8X16X2-MM THK) | |
| 58. | 8T-6912CM | [1] | BOLT(M8X1.25X50-MM) | |
| 59. | 9X-2480M | [2] | BOLT(M6X1X45-MM) | |
| 60. | 383-8897 | [1] | TUBE AS | |
| 61. | 383-8902 | [1] | TUBE AS | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
