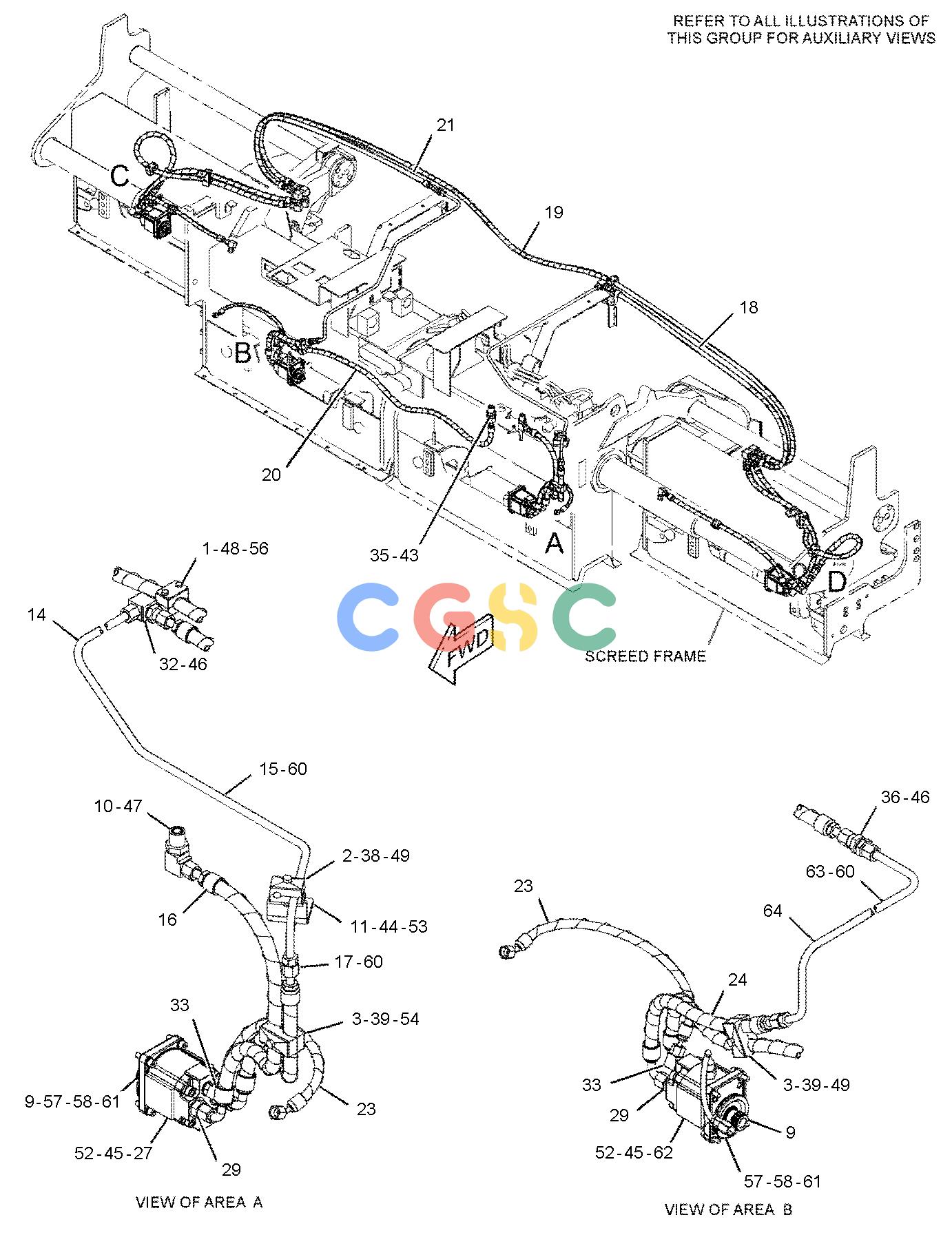

卡特零件查询（AP-655D） 350-9317: LINES GP-VIBRATORY
广数供应链运营团队, 17 02月, 2025，浏览：
971 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7V-5628 | [3] | PLATE | |
| 2. | 102-8703 | [1] | PLATE-COVER | |
| 3. | 102-8705 | [4] | PLATE(TOP) | |
| 4. | 107-4749 | [2] | PLATE | |
| 5. | 152-8181 | [2] | FITTING(QUICK DISCONNECT, MALE) | |
| 6. | 153-2996 | [2] | FITTING AS(QUICK DISCONNECT, MALE) | |
| 7. | 153-2997 | [2] | FITTING AS(QUICK DISCONNECT, FEMALE) | |
| 9. | 242-2797 | [4] | COUPLING | |
| 10. | 281-5969 | [1] | ELBOW AS | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-9796 | [1] | ELBOW | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| 11. | 350-5991 | [1] | BRACKET AS | |
| 12. | 350-9322 | [2] | BRACKET AS | |
| 13. | 350-9323I | [2] | HOSE AS | |
| 14. | 383-8898 | [1] | TUBE AS | |
| 15. | 383-8899 | [1] | TUBE AS | |
| 16. | 369-7354I | [1] | HOSE AS | |
| 17. | 369-7355I | [1] | HOSE AS | |
| 18. | 351-9078I | [1] | HOSE AS | |
| 19. | 351-9079I | [1] | HOSE AS | |
| 20. | 369-7353I | [1] | HOSE AS | |
| 21. | 351-9081I | [1] | HOSE AS | |
| 22. | 365-3437I | [2] | HOSE AS | |
| 23. | 369-7349I | [2] | HOSE AS | |
| 24. | 369-7350I | [1] | HOSE AS | |
| 26. | 365-3438I | [2] | HOSE AS | |
| 27. | 357-2887Y | [3] | MOTOR GP-GEAR | |
| 28. | 148-8340 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8639 | [1] | CONNECTOR | |
| 29. | 148-8345 | [8] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8638 | [1] | CONNECTOR | |
| 30. | 148-8367 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9850 | [1] | ELBOW | |
| 31. | 148-8370 | [6] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-9851 | [1] | ELBOW | |
| 32. | 148-8375 | [5] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-8981 | [1] | ELBOW | |
| 33. | 148-8378 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8724 | [1] | ELBOW | |
| 34. | 148-8439 | [2] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 6V-8774 | [1] | TEE | |
| 35. | 148-8455 | [1] | UNION AS | |
| | 6V-8997 | [1] | UNION | |
| | 6V-9746 | [2] | SEAL-O-RING | |
| 36. | 148-8457 | [1] | UNION AS(STRAIGHT) | |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-8995 | [1] | UNION(STRAIGHT) | |
| 37. | 150-3070 | [2] | ADAPTER AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 4I-6287 | [1] | COUPLING | |
| 38. | 154-4879 | [2] | CLAMP-HALF | |
| 39. | 222-9820 | [8] | CLAMP-HALF | |
| 41. | 171-6728 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 8T-0249 | [1] | ELBOW(SWIVEL) | |
| 42. | 206-6419 | [4] | CLAMP-HALF | |
| 43. | 2P-1293 | [1] | LOCKNUT(1-3/16-12-THD) | |
| 44. | 5P-4116 | [2] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 45. | 289-9555M | [16] | BOLT-SOCKET HEAD(M8X1.25X30-MM) | |
| 46. | 6V-9169 | [6] | NUT(13/16-16-THD) | |
| 47. | 6V-9170 | [1] | NUT-BULKHEAD(1-14-THD) | |
| 48. | 7V-6089 | [6] | CLAMP | |
| 49. | 7X-0818M | [2] | BOLT(M8X1.25X45-MM) | |
| 50. | 8C-8451M | [4] | BOLT(M6X1X40-MM) | |
| 52. | 8T-4224 | [18] | WASHER-HARD(8.8X16X2-MM THK) | |
| 53. | 8T-4908M | [4] | BOLT(M8X1.25X25-MM) | |
| 54. | 8T-6912M | [3] | BOLT(M8X1.25X50-MM) | |
| 56. | 9X-2480M | [6] | BOLT(M6X1X45-MM) | |
| 57. | 242-2815 | [4] | SEAL-O-RING | |
| 58. | 242-2759 | [4] | ADAPTER | |
| 59. | 214-1446 | [2] | CAP-DUST | |
| 60. | 6V-8398 | [4] | SEAL-O-RING | |
| 61. | 5P-8065 | [4] | SEAL-O-RING | |
| 62. | 368-9118Y | [1] | MOTOR GP-GEAR(VIBRATORY) | |
| 63. | 383-8900 | [1] | TUBE AS | |
| 64. | 383-8901 | [1] | TUBE AS | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
