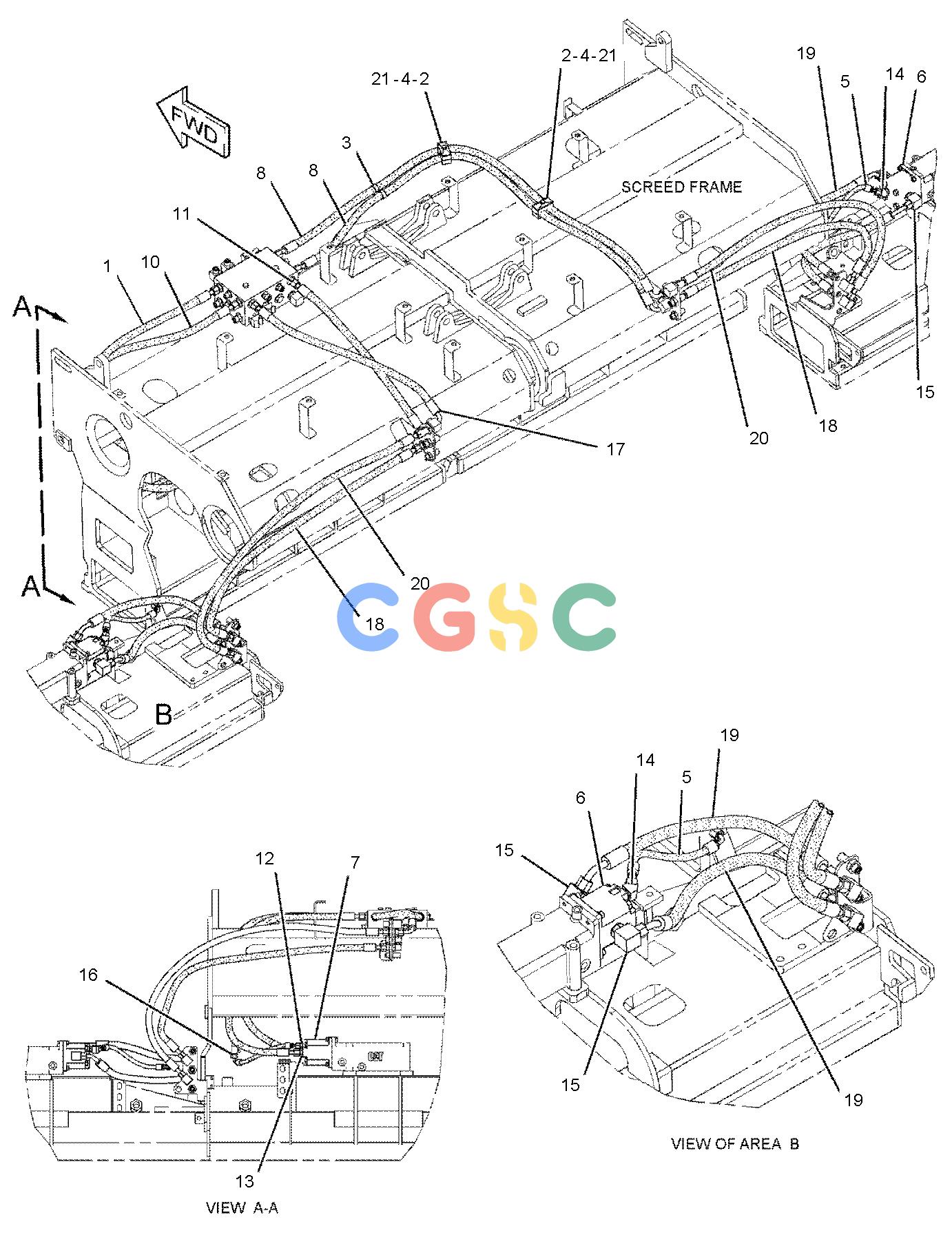

卡特零件查询（AP-655D） 286-3628: LINES GP-VIBRATORY

广数供应链运营团队, 17 02月, 2025，浏览： 645 次

Pos.	Part No	Qty	Parts name
1.	9R-2077I	[1]	HOSE AS
2.	102-8705	[2]	PLATE(TOP)
3.	177-2215	[1]	STRAP-DUAL CLAMP
4.	206-6411	[4]	CLAMP-HALF
5.	208-1806I	[2]	HOSE AS
6.	258-7186Y	[2]	MOTOR & MTG GP-TAMPER
7.	263-5148Y	[1]	MOTOR & MTG GP-VIBRATORY
8.	272-0810I	[2]	HOSE AS
10.	278-0576I	[1]	HOSE AS
11.	302-5513I	[1]	HOSE AS
12.	148-8336	[1]	CONNECTOR AS
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-8636	[1]	CONNECTOR
13.	148-8345	[2]	CONNECTOR AS
			(EACH INCLUDES)
	2M-9780	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-8638	[1]	CONNECTOR
14.	148-8353	[2]	ELBOW AS
			(EACH INCLUDES)
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-9001	[1]	ELBOW
15.	148-8372	[4]	ELBOW AS
			(EACH INCLUDES)
	2M-9780	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-8721	[1]	ELBOW
16.	180-4132I	[1]	HOSE AS
17.	272-0812I	[1]	HOSE AS
18.	273-2049I	[2]	HOSE AS
19.	275-9757I	[4]	HOSE AS
20.	275-9759I	[2]	HOSE AS
21.	8T-6912M	[2]	BOLT(M8X1.25X50-MM)
	I		REFER TO HYDRAULIC INFORMATION SYSTEM
	M		METRIC PART
	Y		SEPARATE ILLUSTRATION
