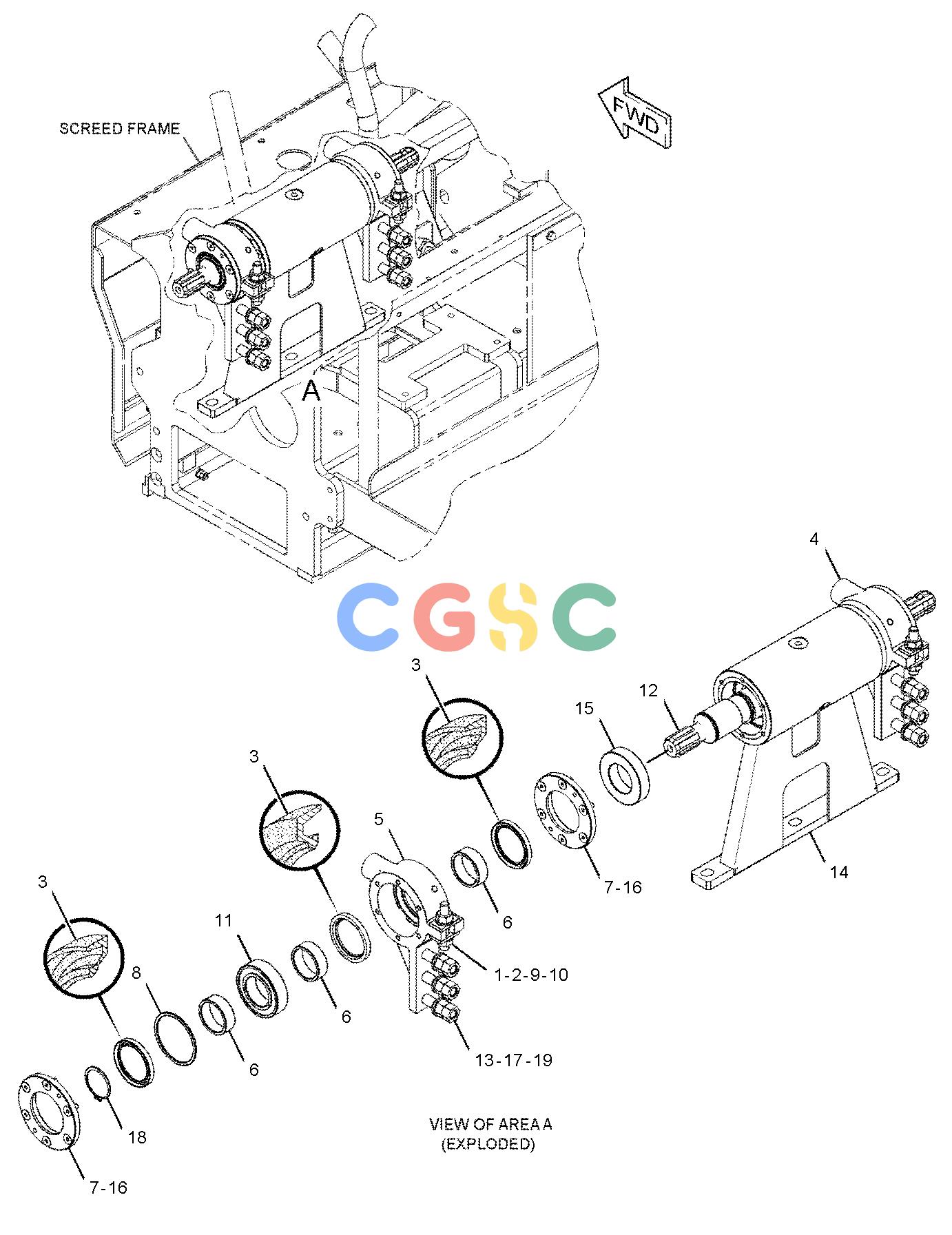

卡特零件查询（AP-655D） 296-9358: SHAFT GP-VIBRATORY
广数供应链运营团队, 17 02月, 2025，浏览：
305 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 096-4876M | [4] | NUT(M14X2-THD) | |
| 2. | 156-4522 | [4] | WASHER-HARD(14X30X3-MM THK) | |
| 3. | 242-2813 | [6] | SEAL-SHAFT | |
| 4. | 242-2845 | [1] | SUPPORT | |
| 5. | 242-2846 | [1] | SUPPORT | |
| 6. | 242-2903 | [6] | RING | |
| 7. | 242-2906 | [4] | COVER | |
| 8. | 242-2907 | [2] | RING | |
| 9. | 242-2910 | [4] | PLATE | |
| 10. | 242-2911 | [2] | STUD(M14X2X85-MM) | |
| 11. | 244-2296 | [2] | BALL BEARING | |
| 12. | 245-9694 | [1] | SHAFT | |
| 13. | 255-1547 | [6] | STUD | |
| 14. | 296-9356 | [1] | SUPPORT AS-BLADE | |
| 15. | 1T-0043 | [2] | BALL BEARING | |
| 16. | 8C-7505M | [24] | SCREW-FLAT HEAD(M8X1.25X20-MM) | |
| 17. | 8T-4132M | [12] | NUT(M16X2-THD) | |
| 18. | 8T-4241 | [2] | RING-RETAINING(EXTERNAL) | |
| 19. | 9X-8268 | [6] | WASHER(17.5X30X3.5-MM THK) | |
| | M | | METRIC PART |
