卡特零件查询（AP-655D） 251-0764: TAMPER GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
241 次

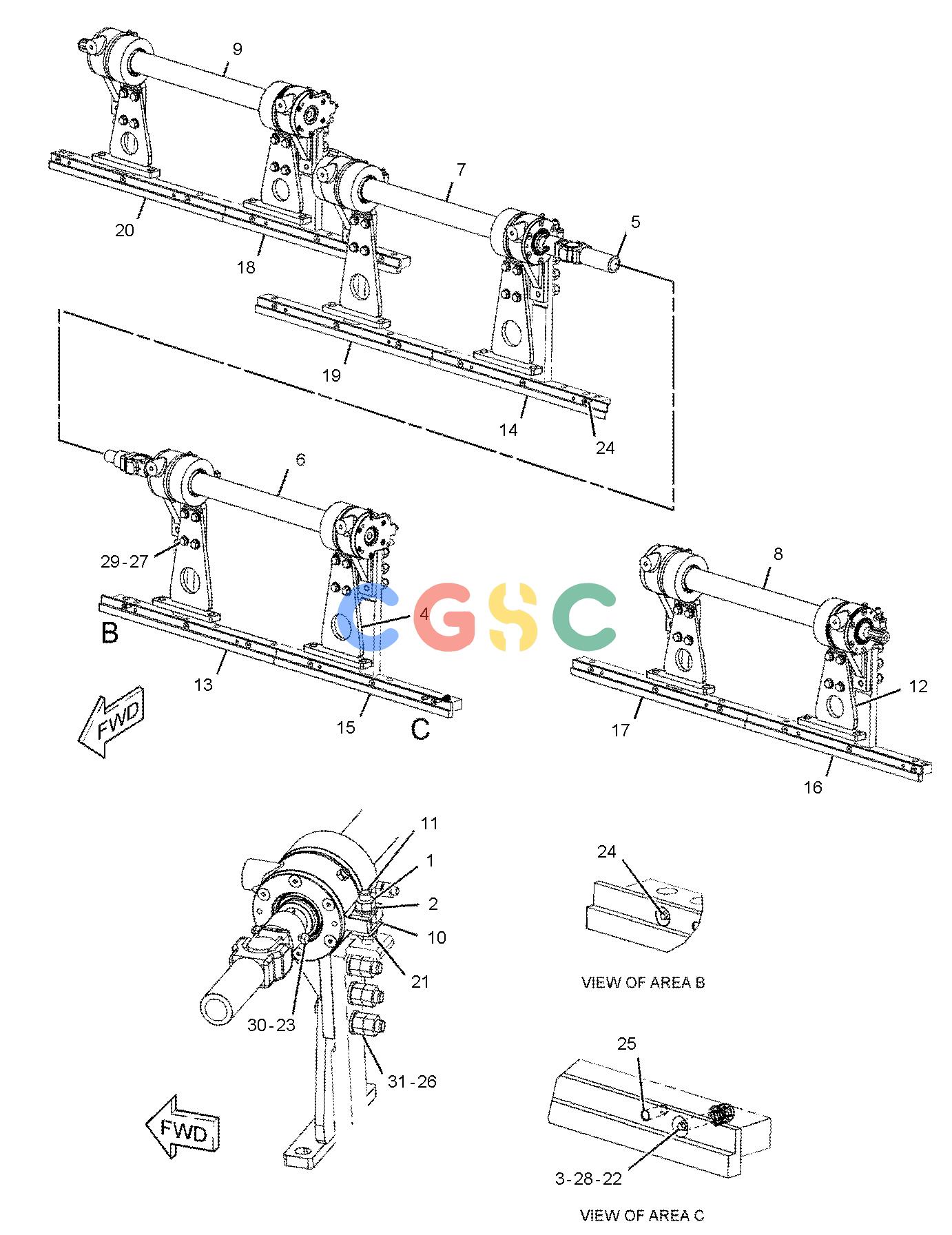

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 096-4876M | [8] | NUT(M14X2-THD) | |
| 2. | 156-4522 | [16] | WASHER-HARD(14X30X3-MM THK) | |
| 3. | 194-7183 | [44] | NUT(M8X1.25-THD) | |
| 4. | 242-2676 | [4] | SUPPORT AS-BLADE | |
| 5. | 242-2677 | [1] | SHAFT GP-DRIVE | |
| 6. | 242-2750Y | [1] | VIBRATORY GP(FRONT, LH) | |
| 7. | 242-2751Y | [1] | VIBRATORY GP(FRONT, RH) | |
| 8. | 242-2752Y | [1] | VIBRATORY GP(REAR, LH) | |
| 9. | 242-2753Y | [1] | VIBRATORY GP(REAR, RH) | |
| 10. | 242-2910 | [16] | PLATE | |
| 11. | 242-2911 | [8] | STUD(M14X2X85-MM) | |
| 12. | 257-5264 | [4] | SUPPORT AS-REAR | |
| 13. | 457-3391 | [1] | PLATE-WEAR(FRONT, MIDDLE)(INNER LH, FRONT) | |
| 14. | 457-3393 | [1] | PLATE-WEAR(FRONT, MIDDLE)(INNER RH, FRONT) | |
| 15. | 457-3395 | [1] | PLATE-WEAR(FRONT LEFT)(FRONT, LH) | |
| 16. | 457-4846 | [1] | PLATE-WEAR(REAR, LH) | |
| 17. | 457-4850 | [1] | PLATE-WEAR(REAR, INNER)(REAR, CENTER, LH) | |
| 18. | 457-4848 | [1] | PLATE-WEAR(REAR, INNER)(REAR, CENTER, RH) | |
| 19. | 457-3397 | [1] | PLATE-WEAR(FRONT RIGHT)(FRONT, RH) | |
| 20. | 457-4849 | [1] | PLATE-WEAR(REAR, RH) | |
| 21. | 271-7843M | [8] | NUT(M14X2-THD) | |
| 22. | 114-3350M | [22] | SCREW-FLAT HEAD(M8X1.25X60-MM) | |
| 23. | 131-3540M | [2] | LOCKNUT(M8X1.25-THD) | |
| 24. | 188-9644M | [2] | SCREW-FLAT HEAD(M8X1.25X25-MM) | |
| 25. | 7X-2438 | [16] | DOWEL | |
| 26. | 8T-4132M | [48] | NUT(M16X2-THD) | |
| 27. | 8T-4223 | [32] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 28. | 8T-4224 | [22] | WASHER-HARD(8.8X16X2-MM THK) | |
| 29. | 8T-4956M | [32] | BOLT(M12X1.75X35-MM) | |
| 30. | 8T-6870M | [2] | BOLT(M8X1.25X70-MM) | |
| 31. | 9X-8257 | [24] | WASHER(17.5X30X3.5-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
