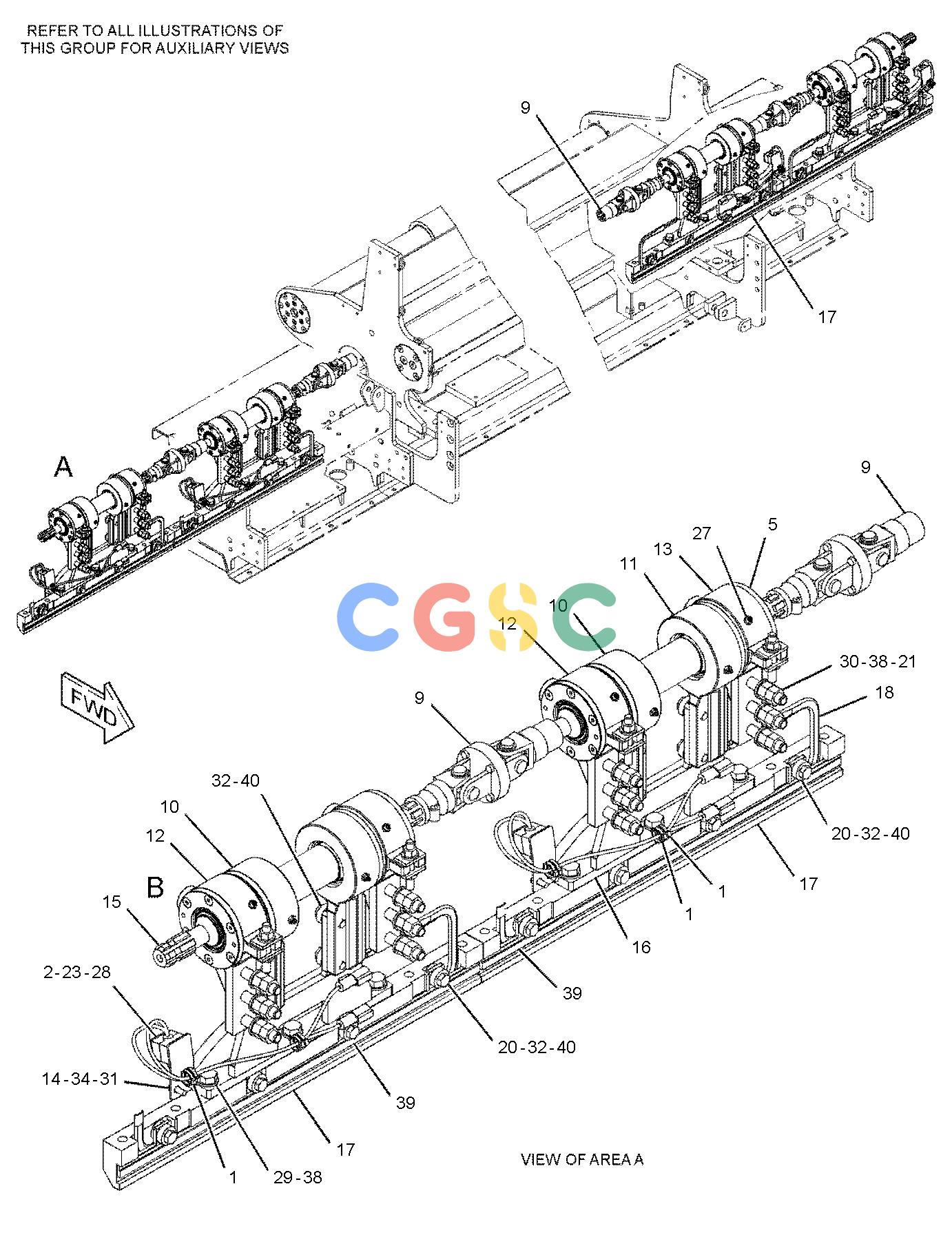

卡特零件查询（AP-655D） 359-1038: TAMPER GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
766 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [16] | STRAP-CABLE | |
| 2. | 107-4749 | [12] | PLATE | |
| 3. | 242-2813 | [32] | SEAL-SHAFT | |
| 4. | 242-2903 | [32] | RING | |
| 5. | 242-2906 | [16] | COVER | |
| 6. | 242-2907 | [8] | RING | |
| 7. | 242-2908 | [8] | RING | |
| 8. | 242-2910 | [16] | PLATE | |
| 9. | 276-5635Y | [4] | UNIVERSAL JOINT GP | |
| 10. | 350-9131 | [4] | SUPPORT(RH) | |
| 11. | 350-9132 | [4] | SUPPORT(LH) | |
| 12. | 350-9135 | [4] | SUPPORT(LH) | |
| 13. | 350-9139 | [4] | SUPPORT(RH) | |
| 14. | 351-0077 | [4] | PLATE AS | |
| 15. | 351-0080 | [4] | SHAFT | |
| 16. | 353-9501 | [4] | SUPPORT AS-BLADE | |
| | | | (EACH INCLUDES) |
| | 178-8507 | [2] | PLATE-WELD | |
| 17. | 353-9523 | [4] | BAR-TAMPER | |
| 18. | 353-9524 | [4] | HEATER AS-SCREED(240-VOLT, 750-WATT) | |
| | | | (EACH INCLUDES) |
| | 129-7164 | [2] | RECEPTACLE AS-CONNECTOR(1-PIN) | |
| 19. | 358-3156 | [8] | STUD(M12X1.75X85-MM) | |
| 20. | 369-8048 | [16] | WASHER(15.5X30X5.8-MM THK) | |
| 21. | 365-4092 | [24] | STUD(M16X2X85-MM) | |
| 22. | 095-1207M | [8] | NUT(M12X1.75-THD) | |
| 23. | 1G-8781 | [24] | CLAMP | |
| 24. | 1T-0043 | [8] | BALL BEARING | |
| 25. | 244-2296 | [8] | BALL BEARING | |
| 26. | 188-9644M | [96] | SCREW-FLAT HEAD(M8X1.25X25-MM) | |
| 27. | 3B-8489 | [16] | FITTING-GREASE(1/8-27 PTF) | |
| 28. | 7X-2533M | [24] | BOLT(M6X1X35-MM) | |
| 29. | 7X-2553M | [12] | BOLT(M16X2X40-MM) | |
| 30. | 8T-4132M | [48] | NUT(M16X2-THD) | |
| 31. | 8T-4189M | [8] | BOLT(M8X1.25X20-MM) | |
| 32. | 8T-4183M | [48] | BOLT(M12X1.75X40-MM) | |
| 33. | 8T-4223 | [16] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 34. | 8T-4224 | [8] | WASHER-HARD(8.8X16X2-MM THK) | |
| 35. | 8T-4241 | [8] | RING-RETAINING(EXTERNAL) | |
| 36. | 8T-4244M | [8] | NUT(M12X1.75-THD) | |
| 38. | 9X-8257 | [36] | WASHER(17.5X30X3.5-MM THK) | |
| 39. | 370-3809 | [4] | PLATE-WEAR | |
| 40. | 3W-2647 | [48] | SPACER(13.5X30X10-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
