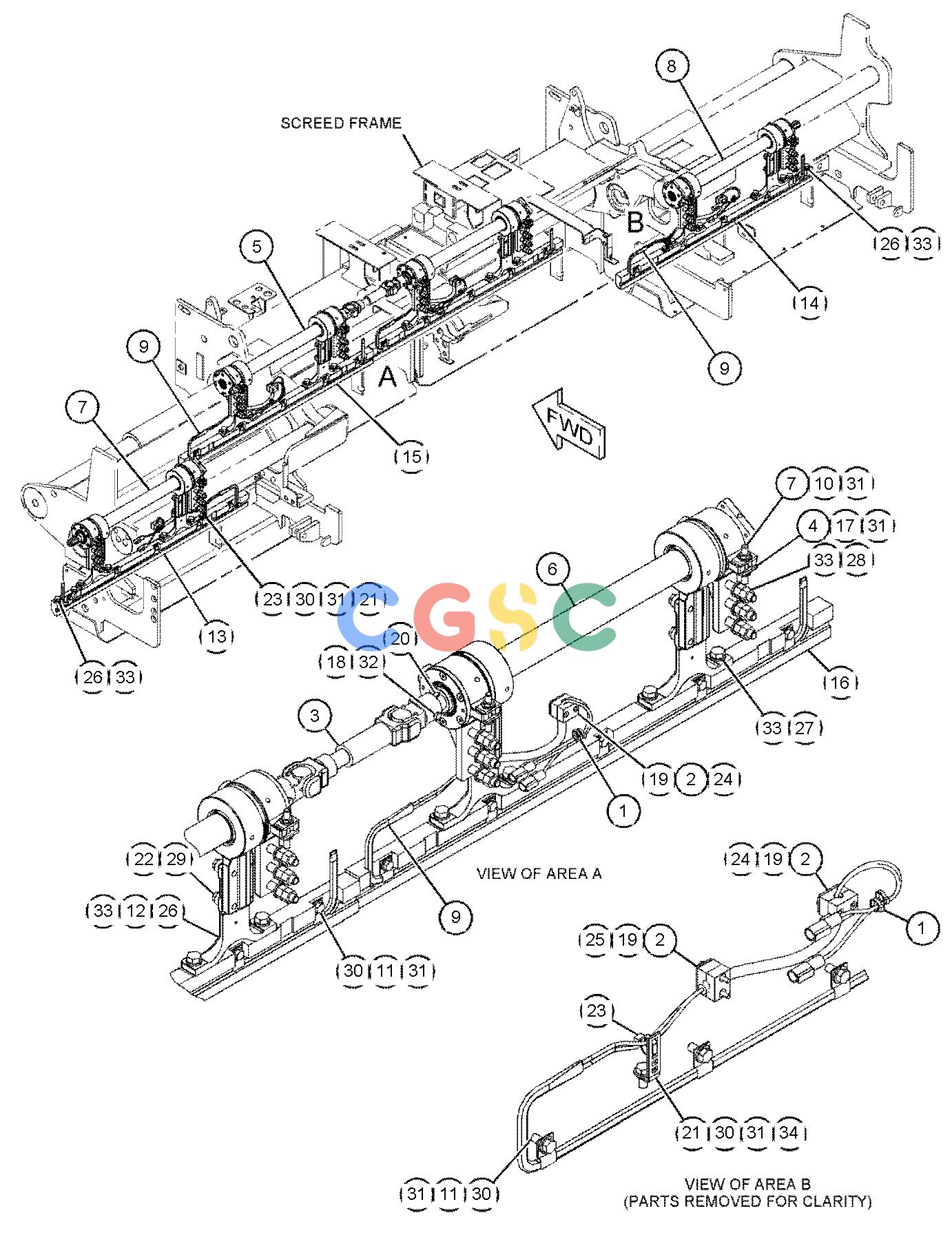

卡特零件查询（AP-655D） 383-6706: TAMPER GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
694 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [8] | STRAP-CABLE | |
| 2. | 107-4749 | [8] | PLATE | |
| 3. | 242-2677 | [1] | SHAFT GP-DRIVE | |
| 4. | 242-2910 | [16] | PLATE | |
| 5. | 350-9124Y | [1] | TAMPER GP-SCREED(FRONT, LH) | |
| 6. | 350-9125Y | [1] | TAMPER GP-SCREED(FRONT, RH) | |
| 7. | 350-9126Y | [1] | TAMPER GP-SCREED(REAR, LH) | |
| 8. | 350-9127Y | [1] | TAMPER GP-SCREED(REAR, RH) | |
| 9. | 393-7819 | [4] | HEATER(240-VOLT, 1000-WATT) | |
| | | | (EACH INCLUDES) |
| | 129-7164 | [2] | RECEPTACLE AS-CONNECTOR(1-PIN) | |
| 10. | 358-3156 | [8] | STUD(M12X1.75X85-MM) | |
| 11. | 360-4087 | [20] | CLAMP | |
| 12. | 391-7035 | [8] | SUPPORT | |
| 13. | 377-8843 | [1] | BAR-TAMPER(EXTENDER, LH) | |
| 14. | 377-8844 | [1] | BAR-TAMPER(EXTENDER, RH) | |
| 15. | 377-8845 | [1] | BAR-TAMPER(MAIN, LH) | |
| 16. | 377-8846 | [1] | BAR-TAMPER(MAIN, RH) | |
| 17. | 095-1207M | [16] | NUT(M12X1.75-THD) | |
| 18. | 131-3540M | [2] | LOCKNUT(M8X1.25-THD) | |
| 19. | 1G-8781 | [16] | CLAMP | |
| 20. | 258-9054 | [2] | KEY(RECTANGULAR SECTION)(SHAFT) | |
| 21. | 352-3969 | [2] | CLIP(LADDER) | |
| 22. | 370-9563 | [32] | SPACER(13.5X25X12-MM THK) | |
| 23. | 7K-1181 | [2] | STRAP-CABLE | |
| 24. | 7X-2533M | [8] | BOLT(M6X1X35-MM) | |
| 25. | 7X-2534M | [8] | BOLT(M6X1X50-MM) | |
| 26. | 7X-2552M | [4] | BOLT(M16X2X30-MM) | |
| 27. | 7X-2553M | [16] | BOLT(M16X2X40-MM) | |
| 28. | 8T-4132M | [48] | NUT(M16X2-THD) | |
| 29. | 8T-4183M | [32] | BOLT(M12X1.75X40-MM) | |
| 30. | 8T-4192M | [22] | BOLT(M12X1.75X25-MM) | |
| 31. | 8T-4223 | [38] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 32. | 8T-6870M | [2] | BOLT(M8X1.25X70-MM) | |
| 33. | 9X-8257 | [44] | WASHER(17.5X30X3.5-MM THK) | |
| 34. | 8T-4205 | [8] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
