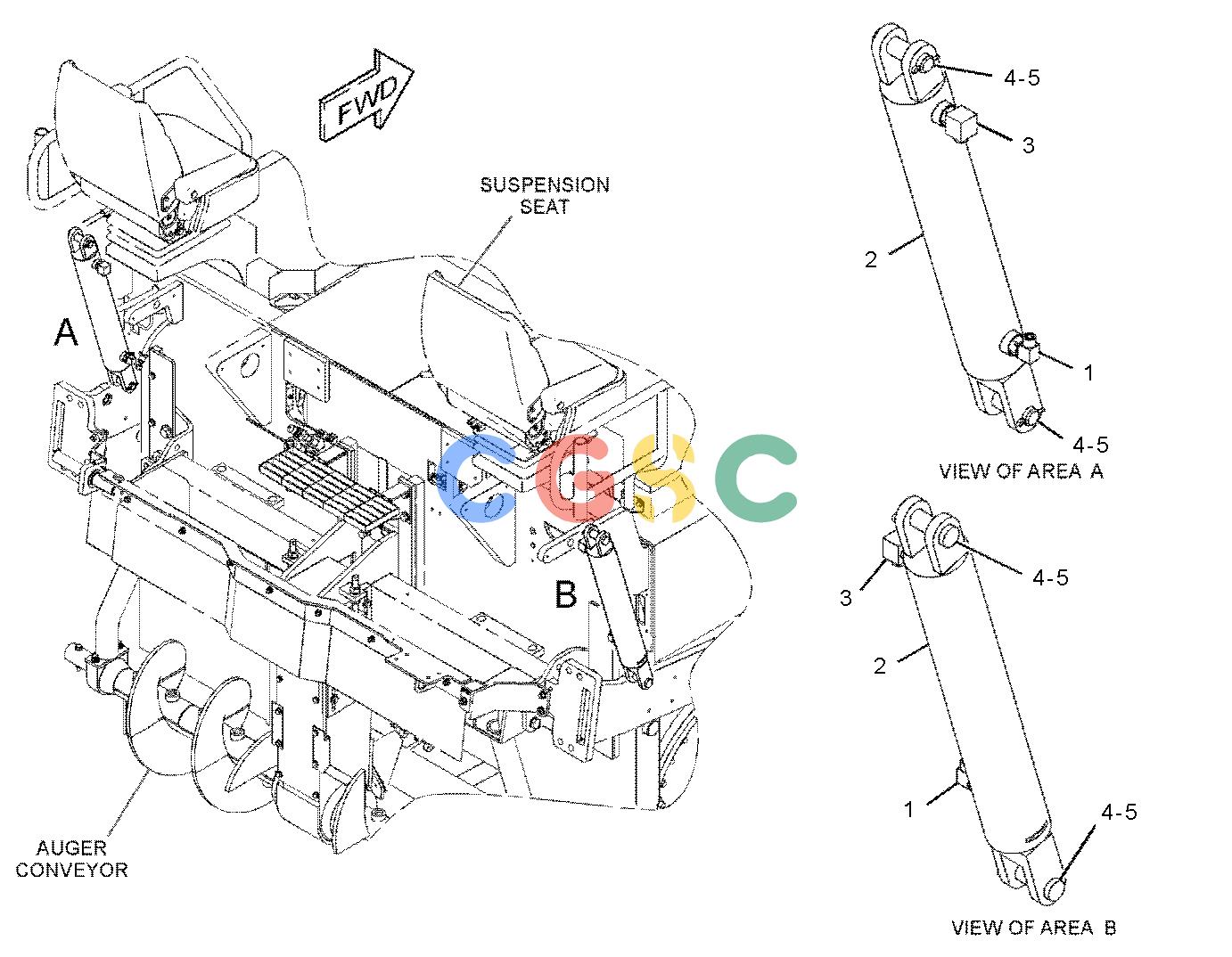

卡特零件查询（AP-655D） 314-5822: CYLINDER & MTG GP-SCREED HOIST
广数供应链运营团队, 17 02月, 2025，浏览：
567 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 205-7202 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 168-4988 | [1] | ELBOW | |
| 2. | 287-5274H | [2] | CYLINDER GP-HYDRAULIC(SCREED HOIST) | |
| 3. | 148-8374 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8723 | [1] | ELBOW | |
| 4. | 173-3651 | [4] | PIN-CLEVIS | |
| 5. | 3B-4629 | [4] | PIN-COTTER | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 356-4934H | [1] | KIT-SEAL | |
| | | | (INCLUDES WEAR RING, SEAL, BACKUP RING, O-RING SEALS,U-CUP & WIPER) |
| | H | | KIT MARKED H SERVICES PART(S) MARKED H |
