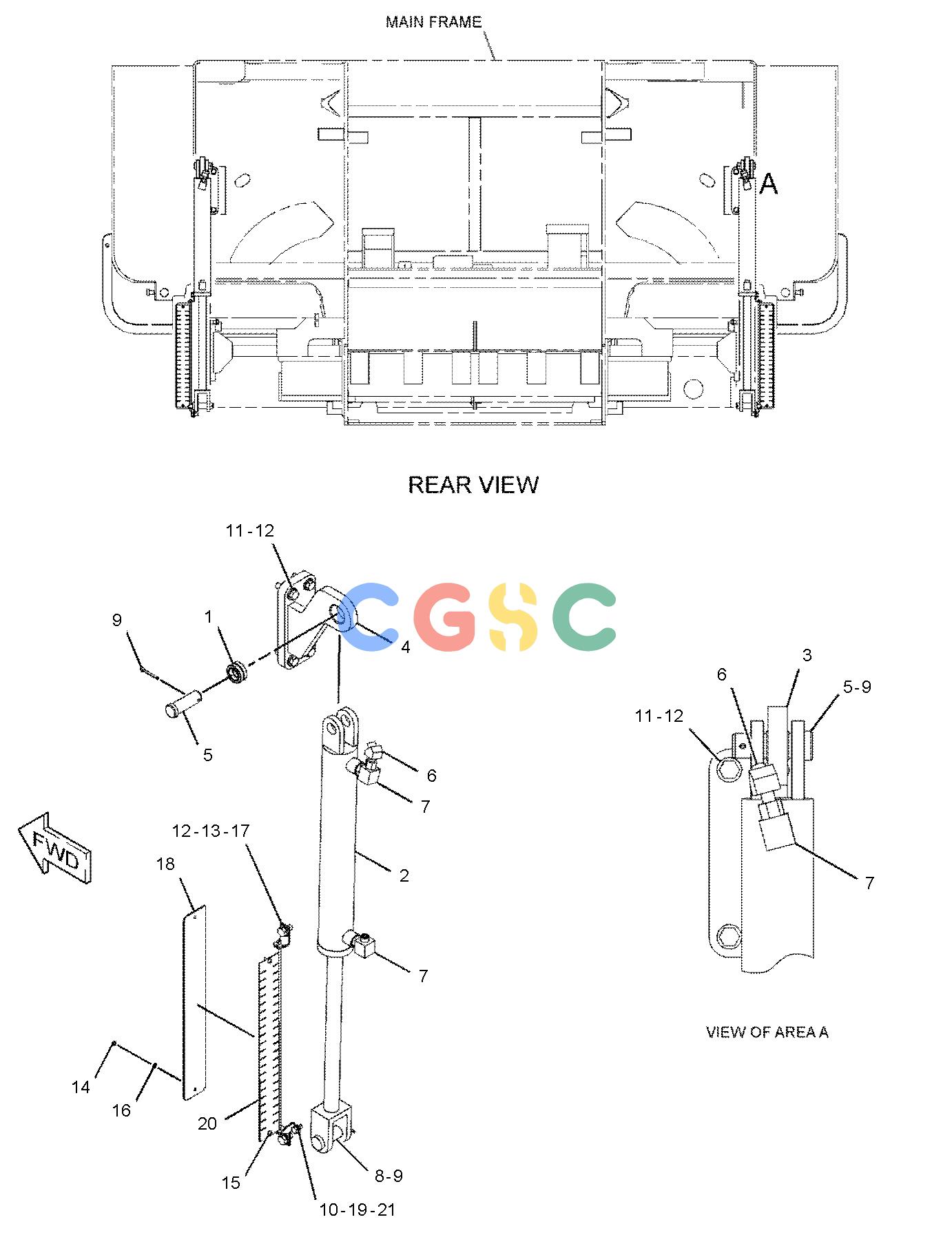

卡特零件查询（AP-655D） 270-3541: CYLINDER & MTG GP-TOW POINT
广数供应链运营团队, 17 02月, 2025，浏览：
286 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 005-8639 | [2] | BEARING-ALIGNING | |
| 2. | 195-2883 | [2] | CYLINDER GP-HYDRAULIC(TOW POINT) | |
| | | | (EACH INCLUDES) |
| | 5D-1986 | [1] | LOCKNUT(7/8-14-THD) | |
| | 5E-8632 | [1] | RING | |
| | 232-3282 | [1] | KIT-SEAL(TOW POINT CYLINDER) | |
| | | | (INCLUDES WIPER, U-CUP SEAL, O-RING SEALS, BACKUP RING & CROWN SEAL) |
| 3. | 270-3551 | [1] | SUPPORT AS(LH) | |
| 4. | 270-3554 | [1] | SUPPORT AS(RH) | |
| 5. | 253-8675 | [2] | PIN-CLEVIS | |
| 6. | 148-8371 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 8C-8988 | [1] | ELBOW | |
| 7. | 148-8374 | [4] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8723 | [1] | ELBOW | |
| 8. | 173-3651 | [2] | PIN-CLEVIS | |
| 9. | 3B-4629 | [4] | PIN-COTTER | |
| 10. | 310-0813 | [2] | PLATE | |
| 11. | 8T-4184M | [8] | BOLT(M12X1.75X45-MM) | |
| 12. | 8T-4223 | [12] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 13. | 194-8183 | [4] | PLATE | |
| 14. | 5C-2874M | [4] | NUT(M5X0.8-THD) | |
| 15. | 7Y-7388M | [4] | SCREW-BUTTON HEAD(M5X0.8X12-MM) | |
| 16. | 8T-0328 | [4] | WASHER-HARD(5.5X10X1-MM THK) | |
| 17. | 8T-4179M | [4] | BOLT(M12X1.75X20-MM) | |
| 18. | 194-8186 | [2] | PLATE AS | |
| 19. | 8T-4200M | [2] | BOLT(M8X1.25X16-MM) | |
| 20. | 336-0065 | [2] | PLATE-SCALE | |
| 21. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| | M | | METRIC PART |
