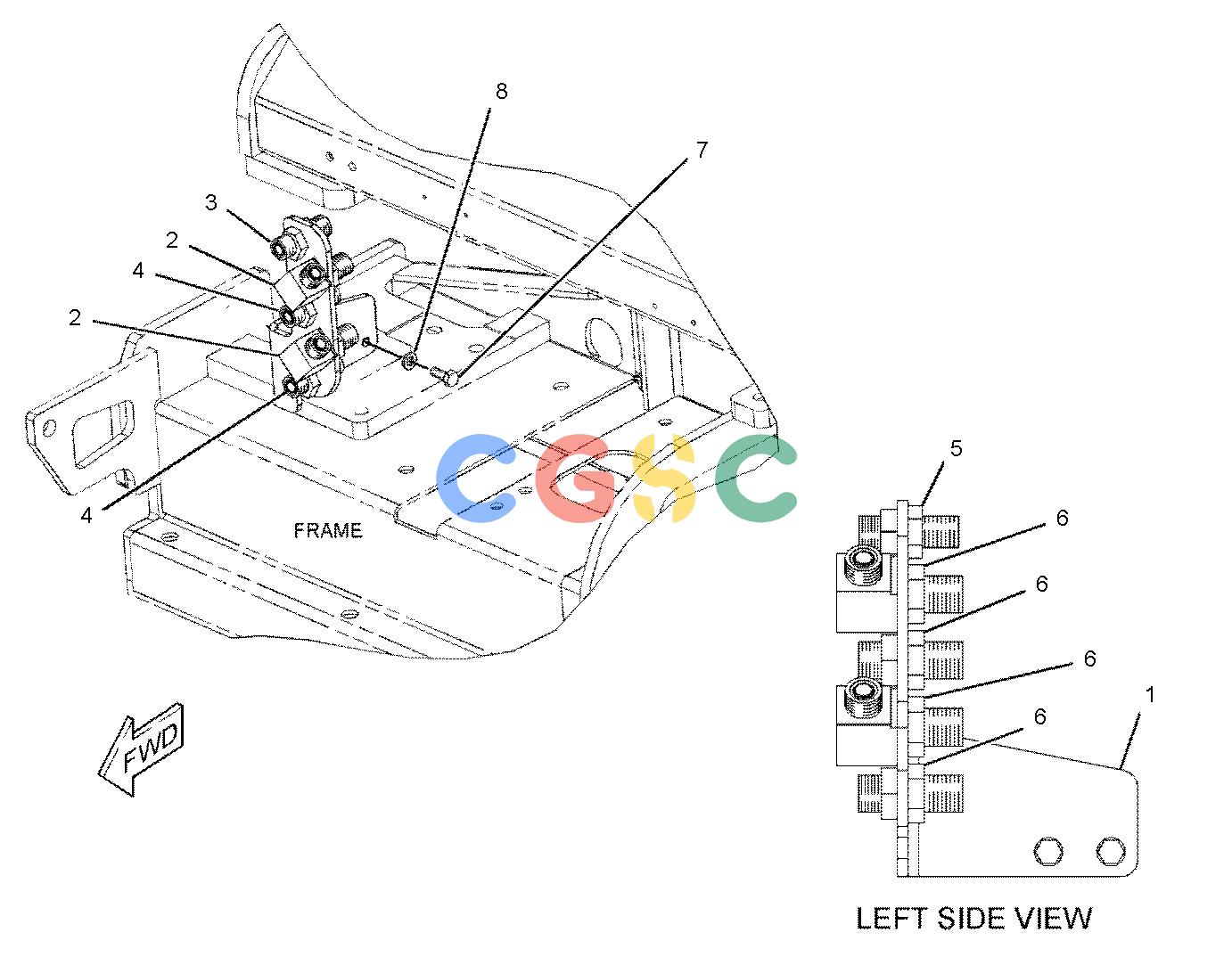

卡特零件查询（AP-655D） 258-4663: FITTING & MTG GP-HYDRAULIC
广数供应链运营团队, 17 02月, 2025，浏览：
419 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 275-9758 | [1] | PLATE | |
| 2. | 148-8375 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-8981 | [1] | ELBOW | |
| 3. | 148-8457 | [2] | UNION AS(STRAIGHT) | |
| | | | (EACH INCLUDES) |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-8995 | [1] | UNION(STRAIGHT) | |
| 4. | 149-5452 | [1] | UNION AS(STRAIGHT) | |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 6V-8994 | [1] | UNION(STRAIGHT) | |
| 5. | 6V-9168 | [1] | NUT(11/16-16-THD) | |
| 6. | 6V-9169 | [4] | NUT(13/16-16-THD) | |
| 7. | 8T-4189M | [2] | BOLT(M8X1.25X20-MM) | |
| 8. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| | M | | METRIC PART |
