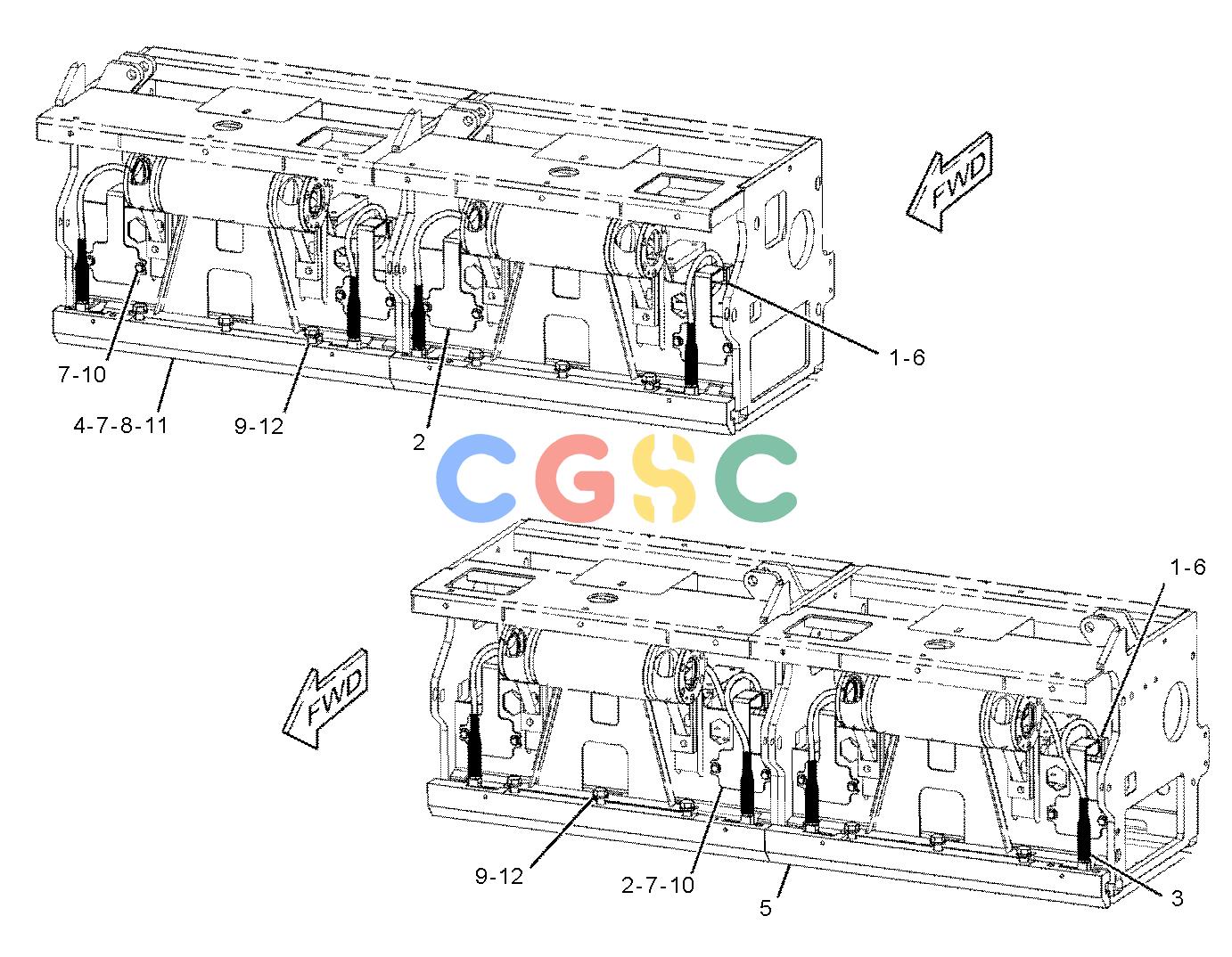

卡特零件查询（AP-655D） 339-1676: BLADE & HEATER GP-TAMPER
广数供应链运营团队, 17 02月, 2025，浏览：
295 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1G-8781 | [16] | CLAMP | |
| 2. | 339-1658 | [8] | PLATE AS-SUPPORT | |
| 3. | 339-1669 | [4] | HEATER AS-TAMPER BAR | |
| 4. | 339-1674 | [2] | BAR-TAMPER | |
| 5. | 339-1675 | [2] | BAR-TAMPER | |
| 6. | 3T-0849M | [16] | BOLT-SOCKET HEAD(M6X1X25-MM) | |
| 7. | 5P-4116 | [24] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 8. | 8T-0225 | [8] | WASHER-BELLEVILLE | |
| 9. | 8T-4779M | [12] | BOLT(M16X2X35-MM) | |
| 10. | 8T-4908M | [16] | BOLT(M8X1.25X25-MM) | |
| 11. | 8T-7547M | [8] | BOLT(M8X1.25X30-MM) | |
| 12. | 9X-8257 | [12] | WASHER(17.5X30X3.5-MM THK) | |
| | M | | METRIC PART |
