卡特零件查询（AP-655D） 286-3629: LINES GP-EXTENDER
广数供应链运营团队, 17 02月, 2025，浏览：
113 次

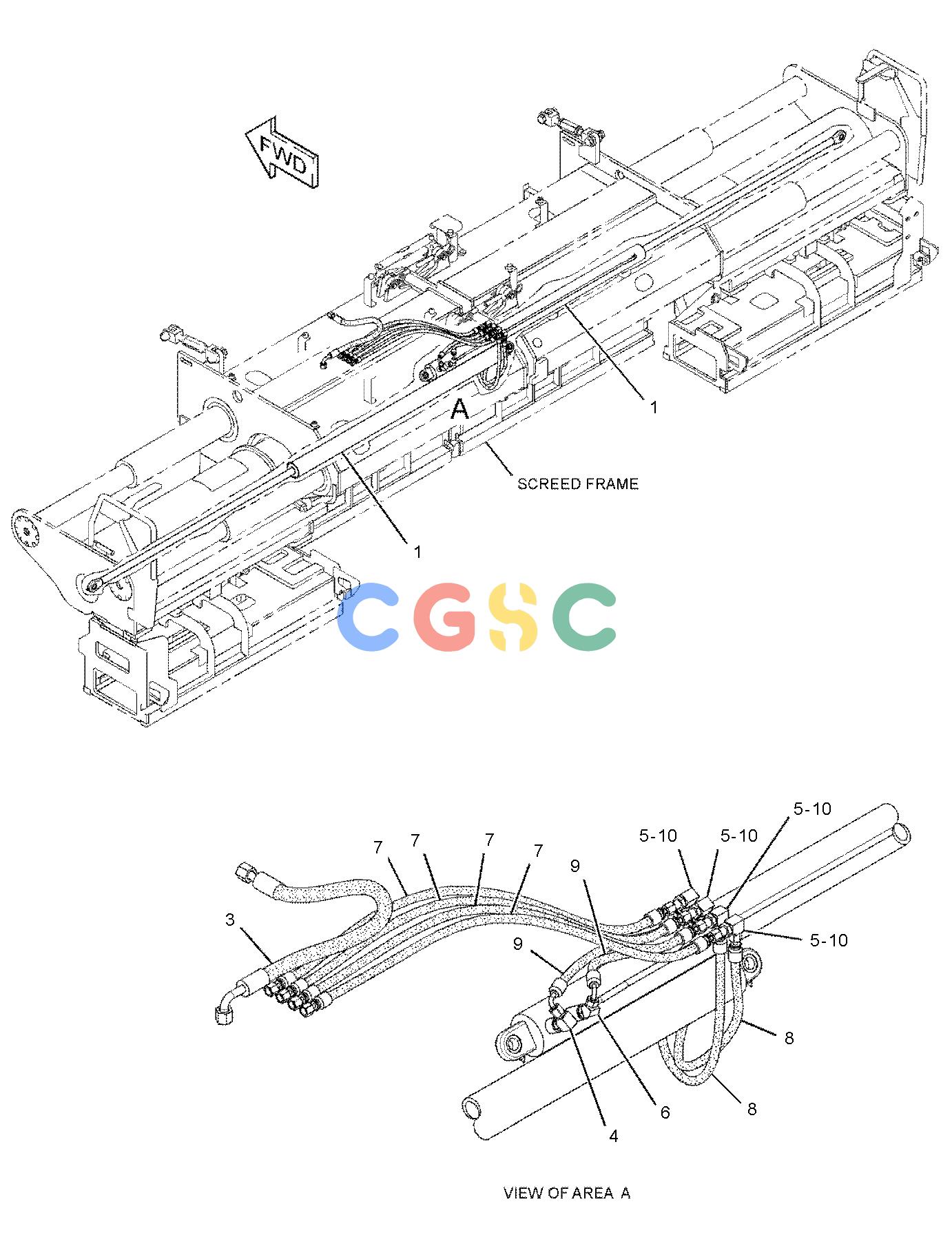

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 251-0781Y | [2] | CYLINDER GP-HYDRAULIC(EXTENDER) | |
| 3. | 277-7497I | [1] | HOSE AS | |
| 4. | 148-8368 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-8627 | [1] | ELBOW | |
| 5. | 148-8384 | [4] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 4J-5477 | [2] | SEAL-O-RING | |
| | 6V-8979 | [1] | ELBOW | |
| 6. | 150-3033 | [3] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 8T-0164 | [1] | ELBOW | |
| 7. | 277-7496I | [4] | HOSE AS | |
| 8. | 277-7499I | [2] | HOSE AS | |
| 9. | 277-7500I | [2] | HOSE AS | |
| 10. | 2P-1279 | [4] | LOCKNUT(9/16-18-THD) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | Y | | SEPARATE ILLUSTRATION |
