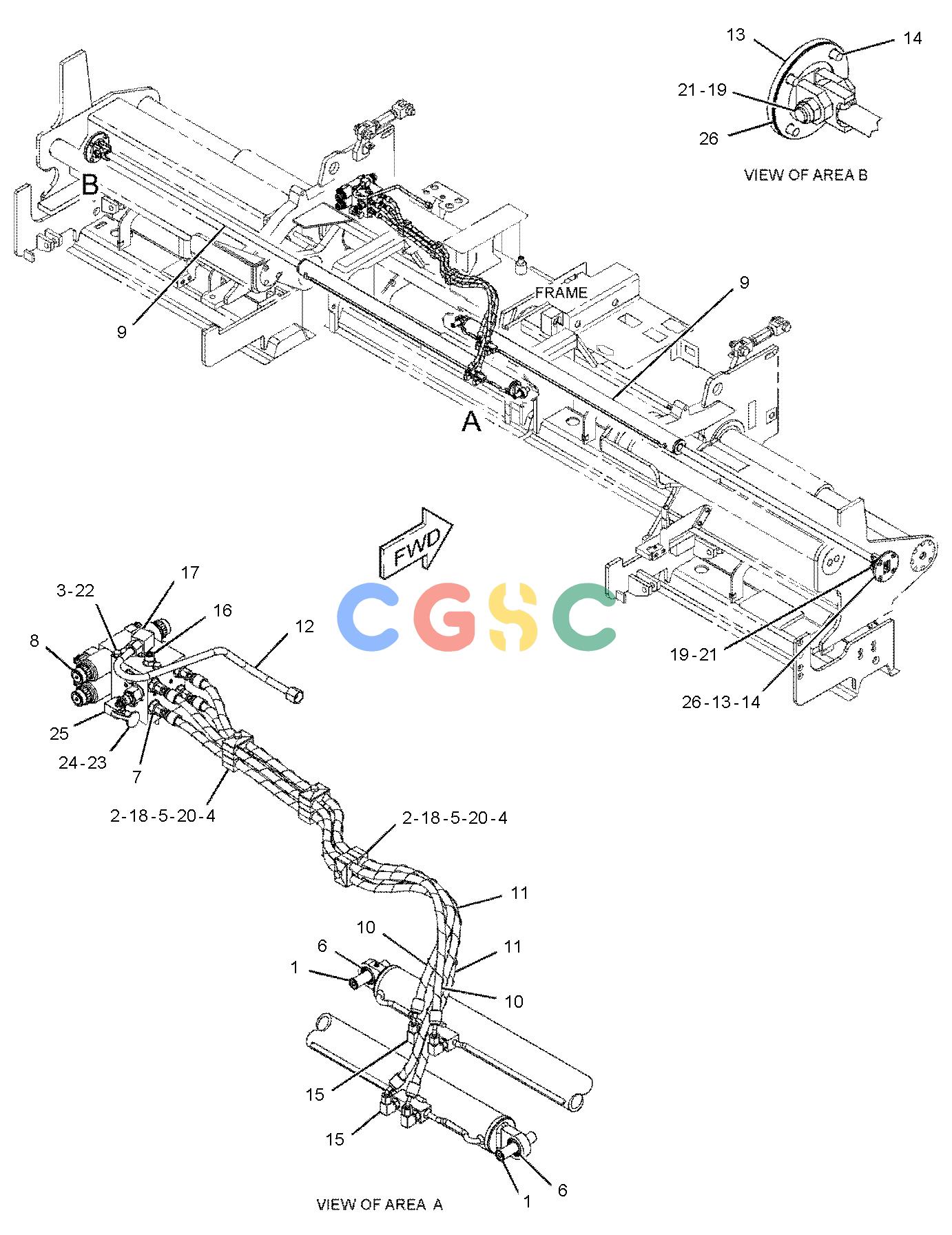

卡特零件查询（AP-655D） 350-5979: LINES GP-EXTENDER
广数供应链运营团队, 17 02月, 2025，浏览：
439 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1S-8517 | [2] | RING-RETAINING | |
| 2. | 102-8703 | [3] | PLATE-COVER | |
| 3. | 108-2989M | [3] | BOLT(M8X1.25X130-MM) | |
| 4. | 154-4890M | [3] | BOLT-STACKING(M8X1.25X33-MM) | |
| 5. | 206-0452 | [3] | PLATE | |
| 6. | 365-2864 | [2] | PIN | |
| 7. | 371-9664 | [4] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 371-9665 | [1] | ADAPTER | |
| 8. | 371-1904Y | [1] | VALVE GP-SOLENOID & PRESS REDC | |
| 9. | 350-5980Y | [2] | CYLINDER GP-HYDRAULIC(EXTENDER) | |
| 10. | 350-5983I | [2] | HOSE AS | |
| 11. | 350-5992I | [2] | HOSE AS | |
| 12. | 365-7526 | [1] | TUBE AS | |
| 13. | 350-7933 | [2] | FLANGE AS | |
| 14. | 144-2686M | [8] | SCREW-FLAT HEAD(M12X1.75X25-MM) | |
| 15. | 148-8368 | [4] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-8627 | [1] | ELBOW | |
| 16. | 148-8336 | [1] | CONNECTOR AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8636 | [1] | CONNECTOR | |
| 17. | 148-8426 | [1] | TEE AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 8T-6696 | [1] | TEE-O-RING | |
| 18. | 156-5306 | [12] | CLAMP-HALF | |
| 19. | 6V-7688M | [2] | LOCKNUT(M20X2.5-THD) | |
| 20. | 7X-2537M | [3] | BOLT(M8X1.25X35-MM) | |
| 21. | 8T-4187M | [2] | BOLT(M20X2.5X80-MM) | |
| 22. | 8T-4224 | [3] | WASHER-HARD(8.8X16X2-MM THK) | |
| 23. | 6V-0852 | [1] | CAP-DUST | |
| 24. | 164-5567 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| 25. | 241-6215 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8076 | [1] | ELBOW | |
| 26. | 418-8111B | [2] | SHIM | |
| | B | | USE AS REQUIRED |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
