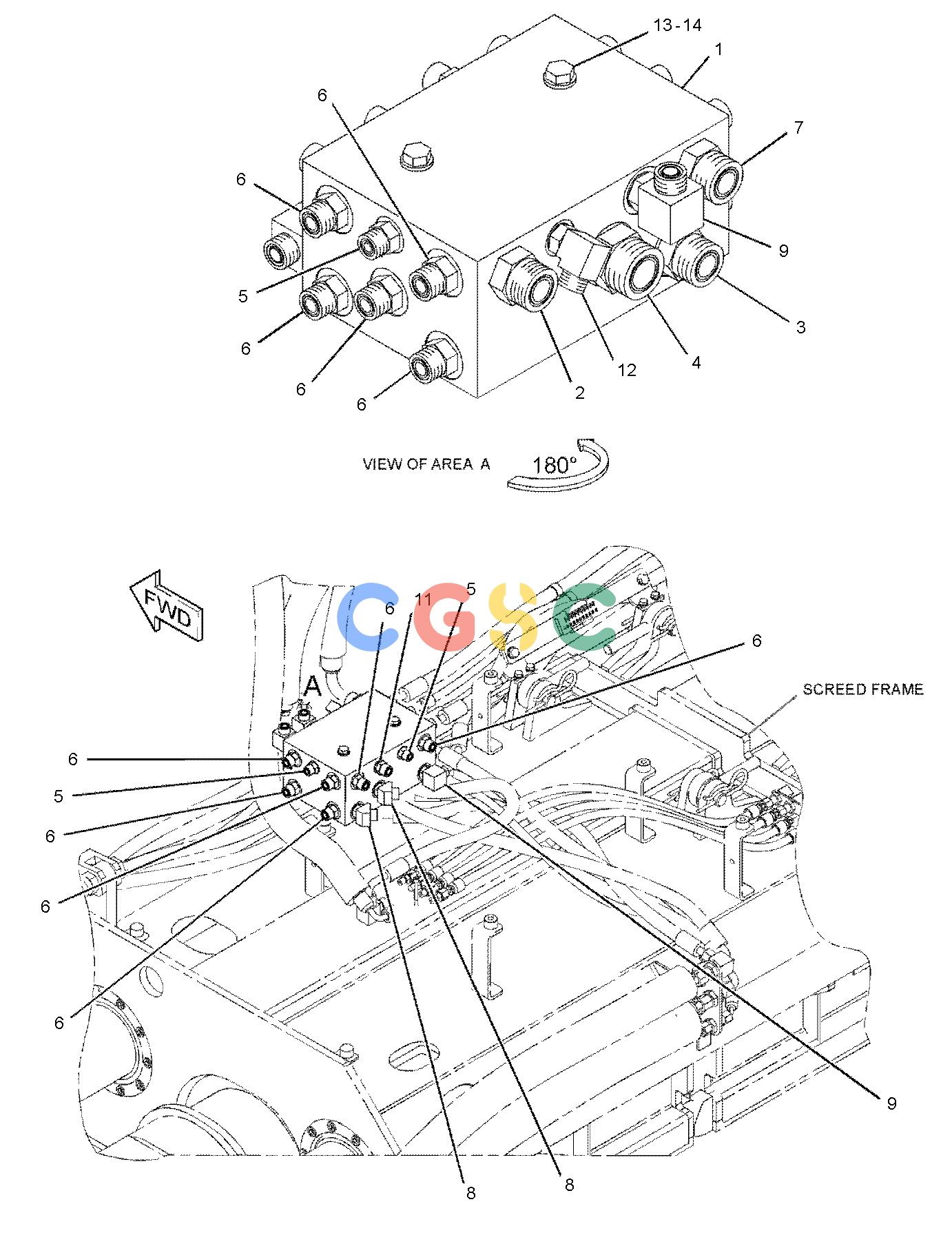

卡特零件查询（AP-655D） 286-3630: MANIFOLD GP-CONTROL
广数供应链运营团队, 17 02月, 2025，浏览：
809 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 312-5028 | [1] | MANIFOLD | |
| 2. | 148-8324 | [1] | CONNECTOR AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 6V-9874 | [1] | CONNECTOR(STRAIGHT) | |
| 3. | 148-8327 | [1] | CONNECTOR AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8637 | [1] | CONNECTOR(SEAL) | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 4. | 148-8329 | [1] | CONNECTOR AS | |
| | 4K-1388 | [1] | SEAL-O-RING | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 8T-6453 | [1] | CONNECTOR | |
| 5. | 148-8336 | [3] | CONNECTOR AS(STORAGE) | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8636 | [1] | CONNECTOR(FACE SEAL) | |
| 6. | 148-8340 | [11] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8639 | [1] | CONNECTOR(SEAL) | |
| 7. | 148-8342 | [1] | CONNECTOR AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8632 | [1] | CONNECTOR | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| 8. | 148-8354 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-9002 | [1] | ELBOW | |
| 9. | 148-8364 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8625 | [1] | ELBOW(90-DEG) | |
| 11. | 150-4043 | [1] | CONNECTOR AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-9873 | [1] | CONNECTOR(SPL) | |
| 12. | 250-1424 | [1] | ELBOW AS | |
| | 6V-8724 | [2] | ELBOW(90-DEG) | |
| | 214-7568 | [2] | SEAL-O-RING | |
| | 221-3494 | [2] | SEAL-O-RING | |
| 13. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 14. | 8T-5436M | [2] | BOLT(M10X1.5X130-MM) | |
| | M | | METRIC PART |
