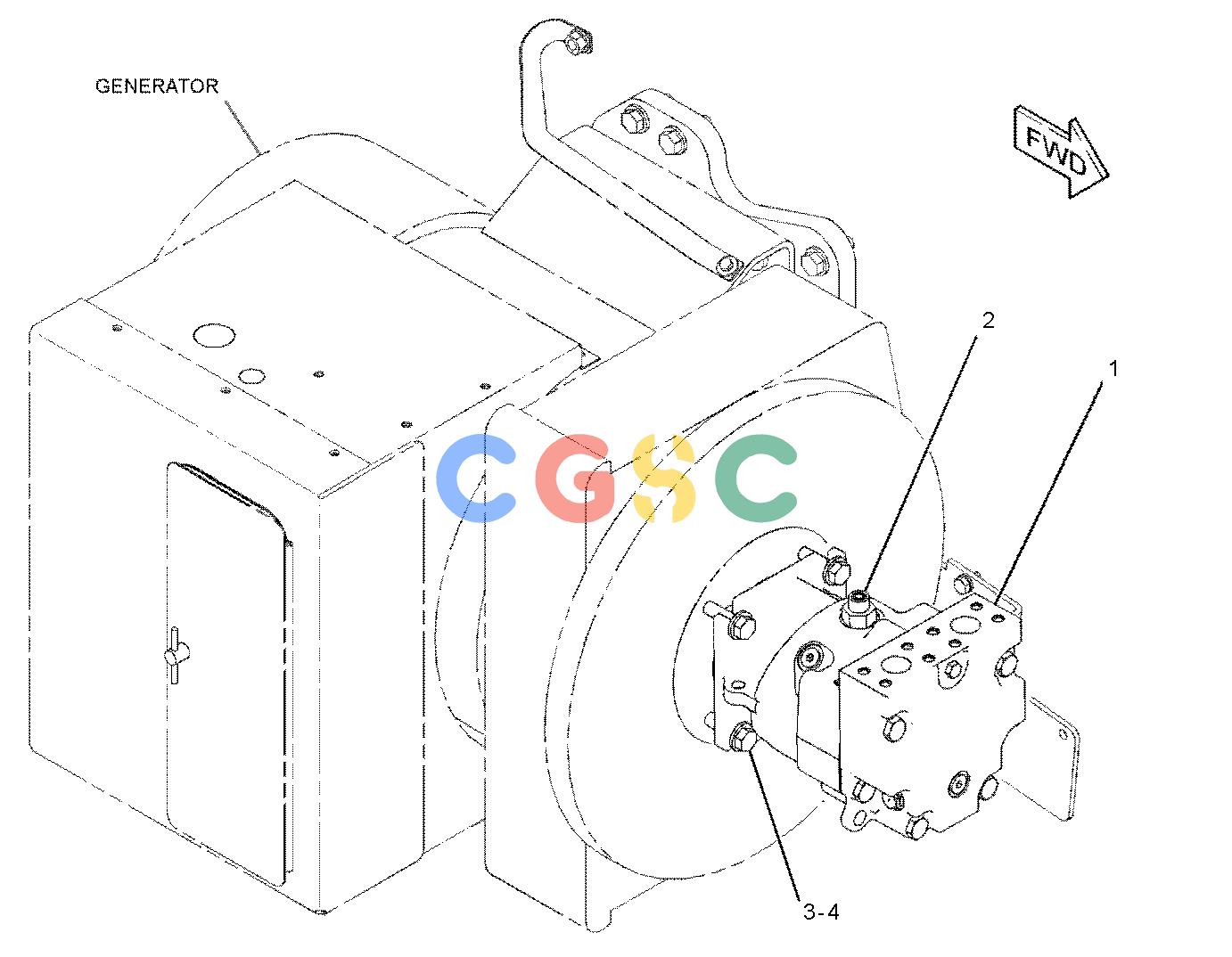

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 310-8545Y | [1] | MOTOR GP-PISTON(GENERATOR) | |
| 2. | 148-8319 | [1] | CONNECTOR AS | |
| 2M-9780 | [1] | SEAL-O-RING | ||
| 6V-8397 | [1] | SEAL-O-RING | ||
| 6V-8715 | [1] | CONNECTOR | ||
| 3. | 8T-4183M | [4] | BOLT(M12X1.75X40-MM) | |
| 4. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
