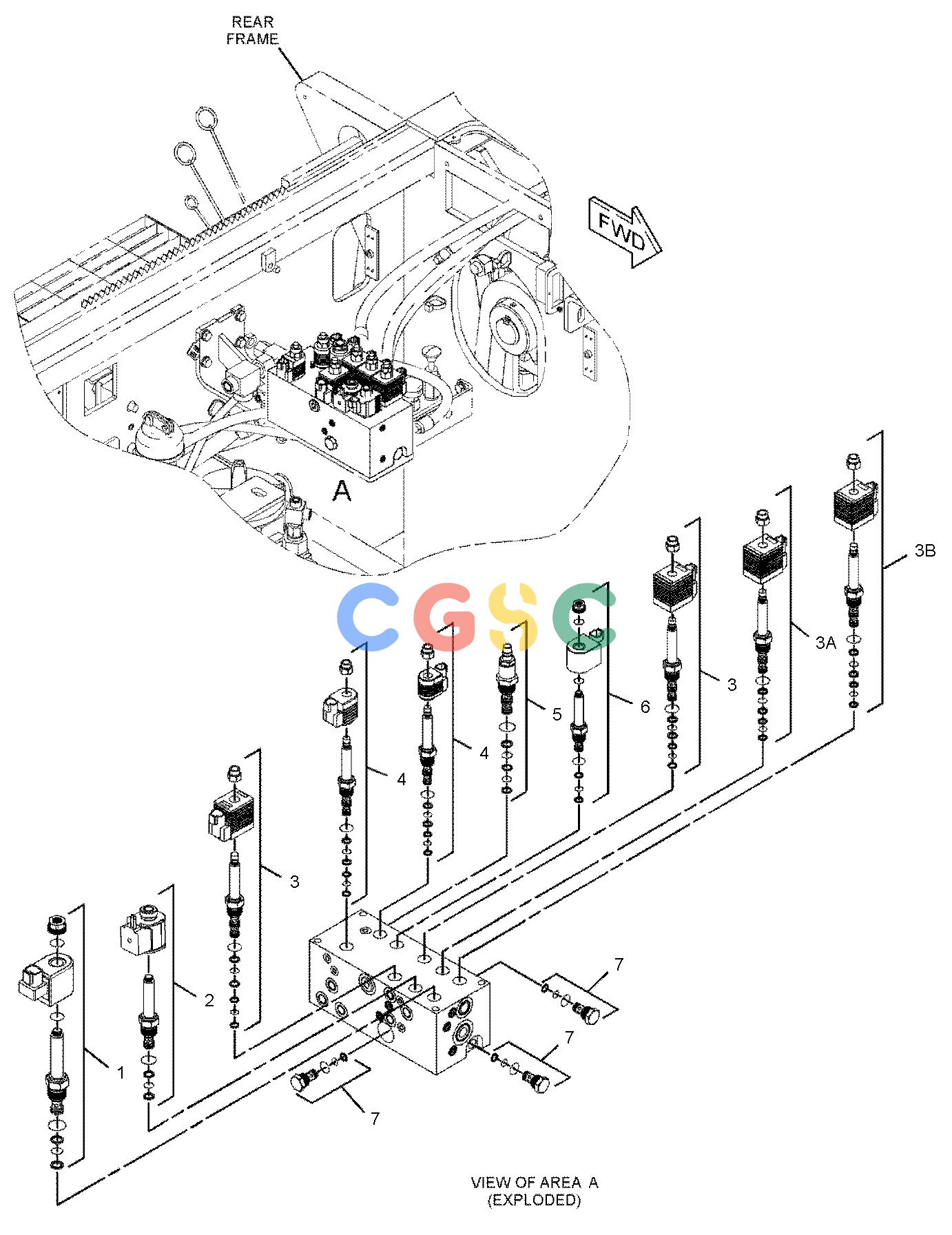

卡特零件查询（AP-655D） 269-0535: VALVE GP-CONTROL
广数供应链运营团队, 17 02月, 2025，浏览：
462 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 305-5295 | [1] | VALVE GP-SOLENOID(SCREED ASSIST, ON/OFF) | |
| | 267-3191 | [1] | COIL-SOLENOID | |
| | 305-5296 | [1] | KIT-SEAL(SOLENOID VALVE) | |
| | | | (INCLUDES SEAL-O-RINGS & BACKUP RINGS) |
| | 305-5297 | [1] | KIT-COIL NUT | |
| | | | (INCLUDES COIL NUT & SEAL-O-RINGS) |
| 2. | 316-5215 | [1] | VALVE GP-SOLENOID(SCREED ASSIST, PRESSURE ADJUST) | |
| | 223-3384 | [1] | COIL AS(24-VOLT) | |
| | 316-5216 | [1] | KIT-SEAL | |
| | | | (INCLUDES O-RINGS & BACKUP RING) |
| 3. | 260-6151 | [2] | KIT-SOLENOID VALVE(AUGER RAISE, LOWER) | |
| 3A. | 260-6151 | [1] | KIT-SOLENOID VALVE(SCREED LOWER) | |
| 3B. | 260-6151 | [1] | KIT-SOLENOID VALVE(SCREED RAISE) | |
| | | | (EACH SOLENOID VALVE KIT INCLUDES CARTRIDGE VALVE, NUT, SOLENOID COIL & SEAL KIT) |
| 4. | 275-2287 | [2] | VALVE GP-SOLENOID(PROPEL MOTOR SHIFT) | |
| | | | (EACH INCLUDES) |
| | 230-4082 | [1] | NUT-SPECIAL | |
| | 255-6417 | [1] | KIT-SEAL(SOLENOID VALVE) | |
| | | | (INCLUDES O-RINGS & BACKUP RINGS) |
| | 255-8036 | [1] | COIL-SOLENOID | |
| 5. | 275-2289 | [1] | VALVE GP-PRESSURE REDUCING(AUXILIARY CIRCUIT) | |
| | 245-6141 | [1] | KIT-SEAL(PRESSURE REDUCING VALVE) | |
| | | | (INCLUDES SEAL-O-RINGS & BACKUP RINGS) |
| 6. | 309-9536 | [1] | VALVE GP-SOLENOID(SCREED LOCK) | |
| | 267-8933 | [1] | KIT-NUT | |
| | | | (INCLUDES NUT & O-RING) |
| | 309-9537 | [1] | KIT-SEAL | |
| | | | (INCLUDES O-RING SEALS & BACKUP RINGS) |
| | 309-9538 | [1] | COIL-SOLENOID | |
| 7. | 346-9503 | [3] | KIT-CHECK VALVE | |
| | | | (EACH INCLUDES CHECK VALVE & SEAL KIT) |
