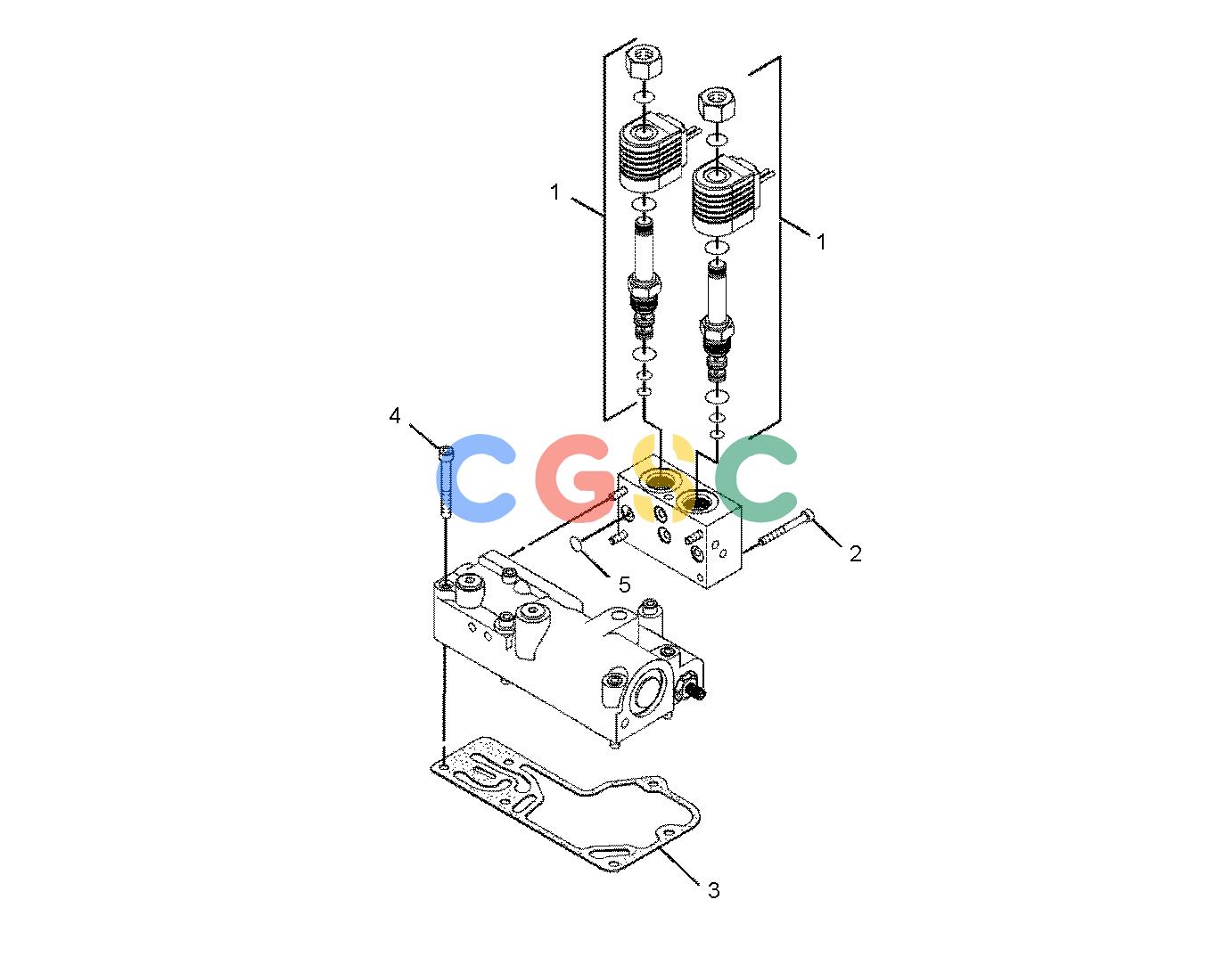

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 276-6042Y | [2] | VALVE GP-SOLENOID(PUMP CONTROL) | |
| 2. | 8T-3283M | [4] | BOLT-SOCKET HEAD(M5X0.8X45-MM) | |
| 3. | 123-0542 | [1] | GASKET | |
| 4. | 8T-9534M | [6] | BOLT(M6X1X50-MM) | |
| 5. | 033-6039 | [4] | SEAL-O-RING | |
| PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY | ||||
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
