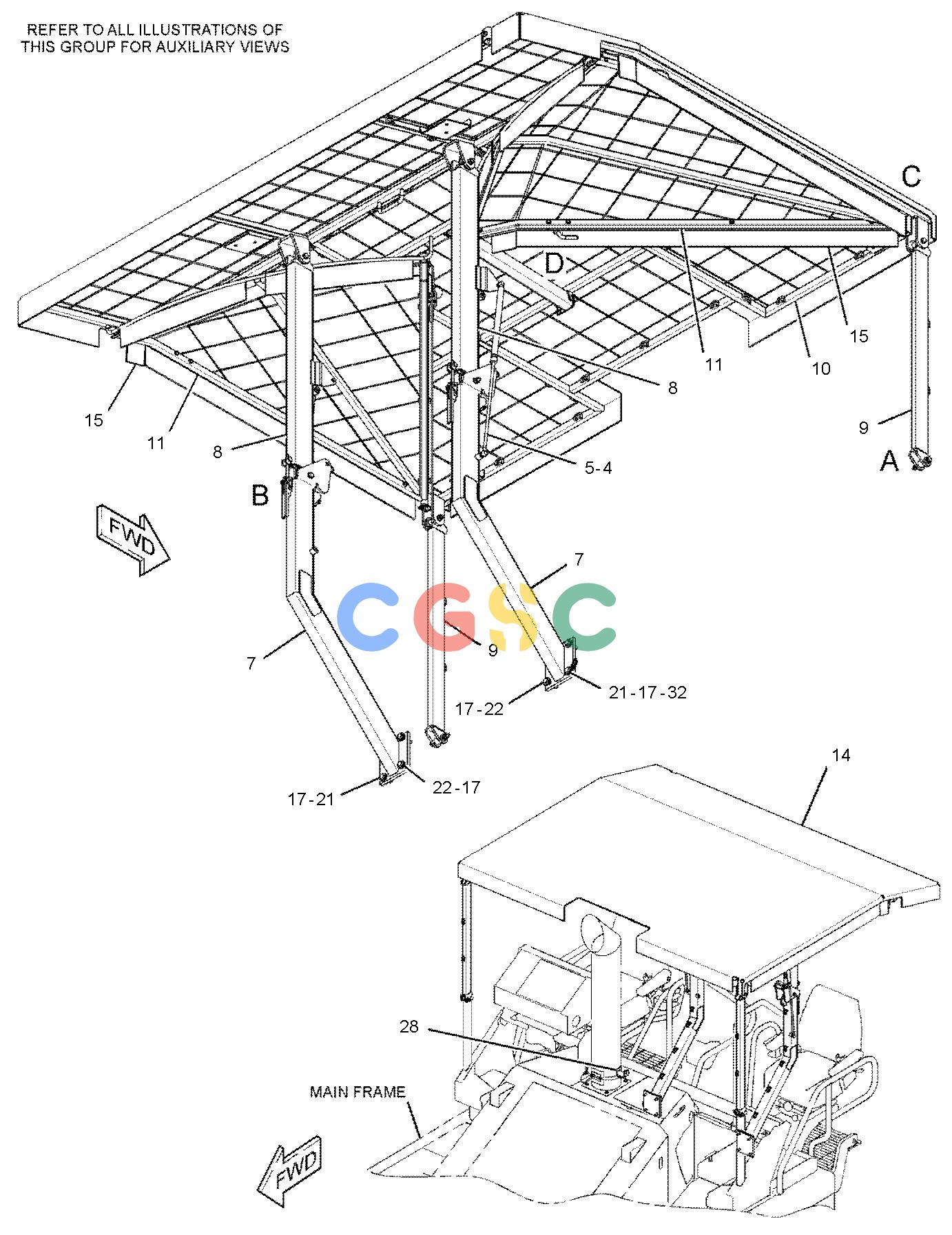

卡特零件查询（AP-655D） 270-4013: CANOPY GP
广数供应链运营团队, 17 02月, 2025，浏览：
800 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5P-0372 | [2] | LOCK PIN | |
| 2. | 2T-1718 | [4] | RETAINER | |
| 3. | 8G-6557 | [4] | SPACER(10.5X25X40-MM THK) | |
| 4. | 119-9706 | [4] | STUD-BALL | |
| 5. | 203-5470 | [2] | SPRING AS-GAS | |
| 6. | 245-2814 | [2] | ROD | |
| 7. | 277-8888 | [2] | SUPPORT AS-REAR | |
| 8. | 277-8890 | [2] | ARM AS-PIVOT(REAR) | |
| 9. | 277-8891 | [2] | ARM AS-PIVOT(FRONT) | |
| 10. | 277-8892 | [1] | FRAME AS | |
| 11. | 281-6483 | [2] | FRAME AS-SIDE | |
| 12. | 281-6490 | [4] | SPACER(10.5X25X61-MM THK) | |
| 13. | 290-3475 | [4] | PIN | |
| 14. | 292-0992 | [1] | COVER(MAIN) | |
| 15. | 292-0993 | [2] | COVER(WING) | |
| 16. | 178-2255 | [2] | PIN | |
| 17. | 5P-1076 | [8] | WASHER-HARD(13.5X30X4-MM THK) | |
| 18. | 8T-0389M | [8] | LOCKNUT(M10X1.5-THD) | |
| 19. | 8T-4121 | [26] | WASHER-HARD(11X21X2.5-MM THK) | |
| 20. | 8T-4198M | [4] | BOLT(M10X1.5X100-MM) | |
| 21. | 8T-4183M | [4] | BOLT(M12X1.75X40-MM) | |
| 22. | 8T-4194M | [4] | BOLT(M12X1.75X50-MM) | |
| 23. | 8T-4223 | [6] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 24. | 8T-4172M | [4] | BOLT(M10X1.5X80-MM) | |
| 25. | 8T-5361 | [8] | WASHER-HARD(28X49X5-MM THK) | |
| 26. | 313-9492 | [2] | PLATE | |
| 27. | 313-9490 | [2] | PLATE | |
| 28. | 312-8785 | [1] | PLATE | |
| 29. | 312-8782 | [1] | PLATE | |
| 30. | 8T-4136M | [10] | BOLT(M10X1.5X25-MM) | |
| 31. | 9S-1316 | [2] | SPRING | |
| 32. | 4P-7428 | [1] | CLIP(LADDER) | |
| 33. | 7X-7877E | | STRIP-EDGE(112.5-CM EACH) | |
| 33A. | 7X-7877E | | STRIP-EDGE(14.8-CM EACH) | |
| 33B. | 7X-7877E | | STRIP-EDGE(9.8-CM EACH) | |
| 34. | 3B-4615 | [2] | PIN-COTTER | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
