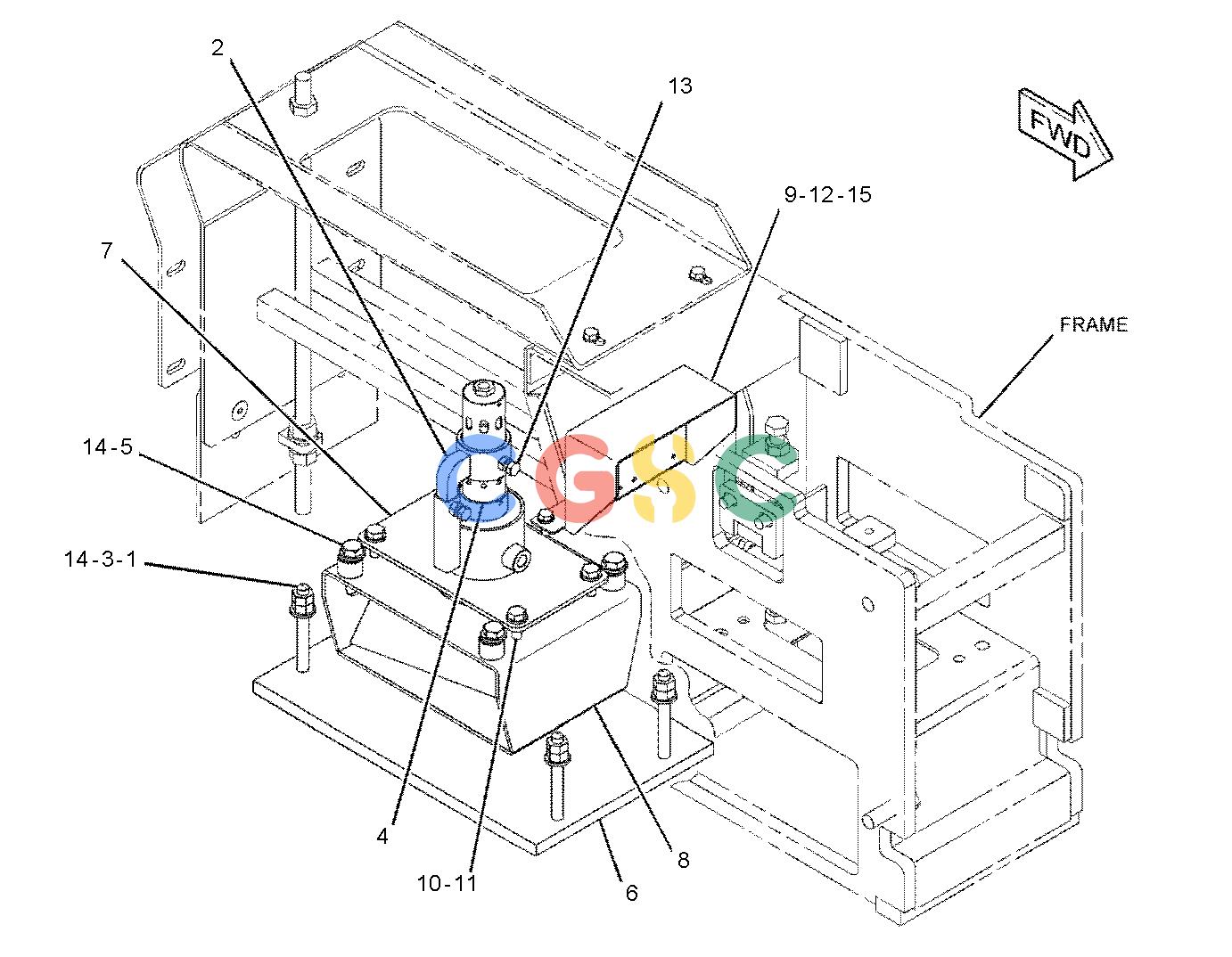

卡特零件查询（AP-655D） 250-9118: BURNER GP
广数供应链运营团队, 17 02月, 2025，浏览：
706 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 245-9693M | [8] | STUD(M12X1.75X100-MM) | |
| 2. | 245-9695 | [2] | SUPPORT AS | |
| 3. | 248-9997M | [16] | NUT-BRASS(M12X1.75-THD) | |
| 4. | 249-0015 | [2] | BURNER | |
| 5. | 249-3036M | [8] | BOLT(M12X1.75X20-MM) | |
| 6. | 251-1430 | [2] | PLATE | |
| 7. | 266-7486 | [2] | SUPPORT AS(BURNER) | |
| 8. | 266-7487 | [2] | BOX AS(BURNER) | |
| 9. | 272-4940 | [2] | BOX AS(BURNER) | |
| 10. | 8T-4121 | [8] | WASHER-HARD(11X21X2.5-MM THK) | |
| 11. | 8T-4136M | [8] | BOLT(M10X1.5X25-MM) | |
| 12. | 8T-4189M | [4] | BOLT(M8X1.25X20-MM) | |
| 13. | 8T-4200M | [4] | BOLT(M8X1.25X16-MM) | |
| 14. | 8T-4223 | [16] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 15. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| | M | | METRIC PART |
