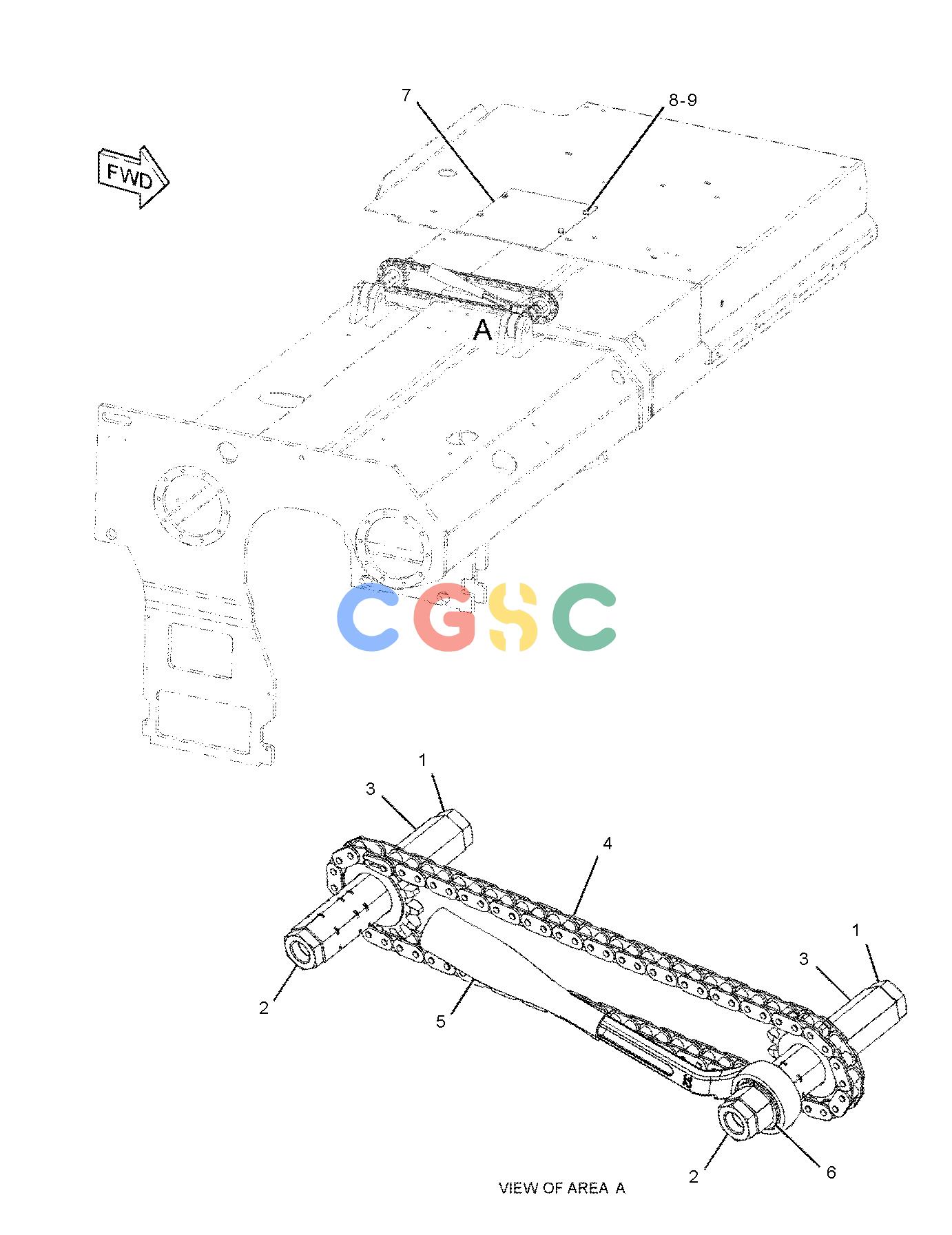

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 200-3255M | [2] | NUT(M20X1.5-THD) | |
| 2. | 241-8120M | [2] | NUT(M20X1.5-THD, LH) | |
| 3. | 242-2762 | [2] | GEAR AS(15-TEETH) | |
| 4. | 242-2776 | [1] | CHAIN | |
| 242-3086 | [1] | FITTING | ||
| 5. | 242-2780 | [1] | WRENCH-RATCHET | |
| 6. | 242-2875 | [2] | RING | |
| 7. | 252-8959 | [1] | COVER | |
| 8. | 8T-4189M | [4] | BOLT(M8X1.25X20-MM) | |
| 9. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| M | METRIC PART | |||
