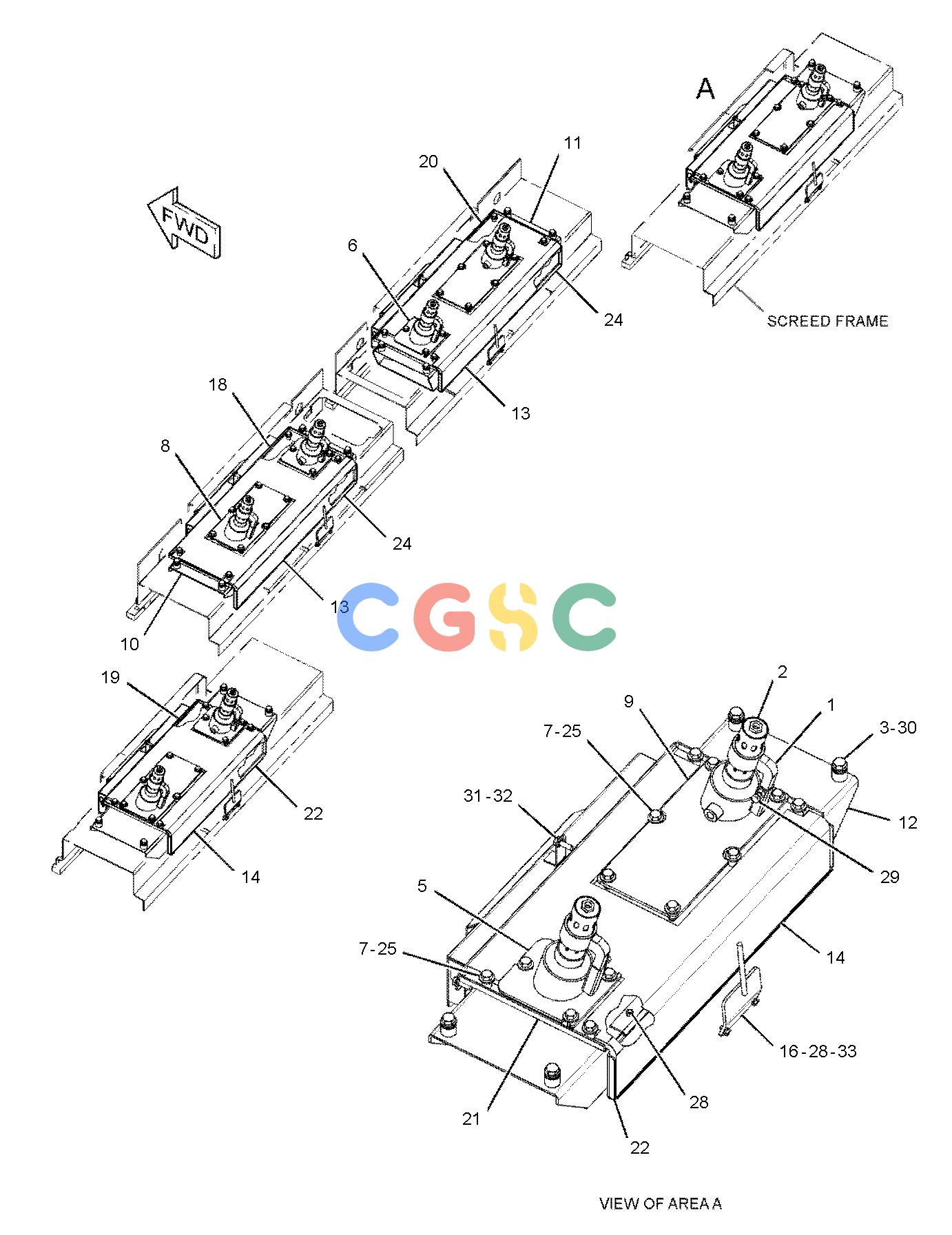

卡特零件查询（AP-655D） 299-7255: BURNER GP
广数供应链运营团队, 17 02月, 2025，浏览：
343 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 245-9695 | [8] | SUPPORT AS | |
| 2. | 249-0015 | [8] | BURNER | |
| 3. | 249-3036M | [16] | BOLT(M12X1.75X20-MM) | |
| 5. | 249-3060 | [2] | SUPPORT AS | |
| 6. | 249-3065 | [2] | SUPPORT AS | |
| 7. | 250-7138M | [52] | BOLT(M10X1.5X25-MM) | |
| 8. | 257-5247 | [2] | SUPPORT AS | |
| 9. | 257-5248 | [2] | SUPPORT AS | |
| 10. | 257-5253 | [1] | DIFFUSER AS(MAIN, LH) | |
| 11. | 257-5254 | [1] | DIFFUSER AS(MAIN, RH) | |
| 12. | 257-5255 | [2] | DIFFUSER AS(SLIDING) | |
| 13. | 257-5260 | [2] | INSULATOR-HEAT | |
| 14. | 257-5261 | [2] | INSULATOR-HEAT | |
| 16. | 276-5628 | [4] | PROTECTION AS(SENSOR) | |
| 18. | 288-9402 | [1] | PLATE AS(MAIN, LH) | |
| 19. | 288-9403 | [1] | PLATE AS(SLIDING, LH) | |
| 20. | 288-9404 | [1] | PLATE AS(MAIN, RH) | |
| 21. | 288-9405 | [1] | PLATE AS(SLIDING, RH) | |
| 22. | 288-9407 | [2] | PLATE AS(SLIDING, REAR) | |
| | | | (EACH INCLUDES) |
| | 5C-2890M | [3] | NUT(M6X1-THD) | |
| 24. | 289-0514 | [2] | PROTECTION AS(MAIN, FRONT) | |
| 25. | 7X-7729 | [52] | WASHER(11X25X3-MM THK) | |
| 28. | 8T-4171M | [20] | BOLT(M6X1X12-MM) | |
| 29. | 8T-4200M | [16] | BOLT(M8X1.25X16-MM) | |
| 30. | 8T-4223 | [16] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 31. | 8T-4224 | [12] | WASHER-HARD(8.8X16X2-MM THK) | |
| 32. | 8T-4908M | [12] | BOLT(M8X1.25X25-MM) | |
| 33. | 9X-8256 | [8] | WASHER(6.6X12X2-MM THK) | |
| | M | | METRIC PART |
