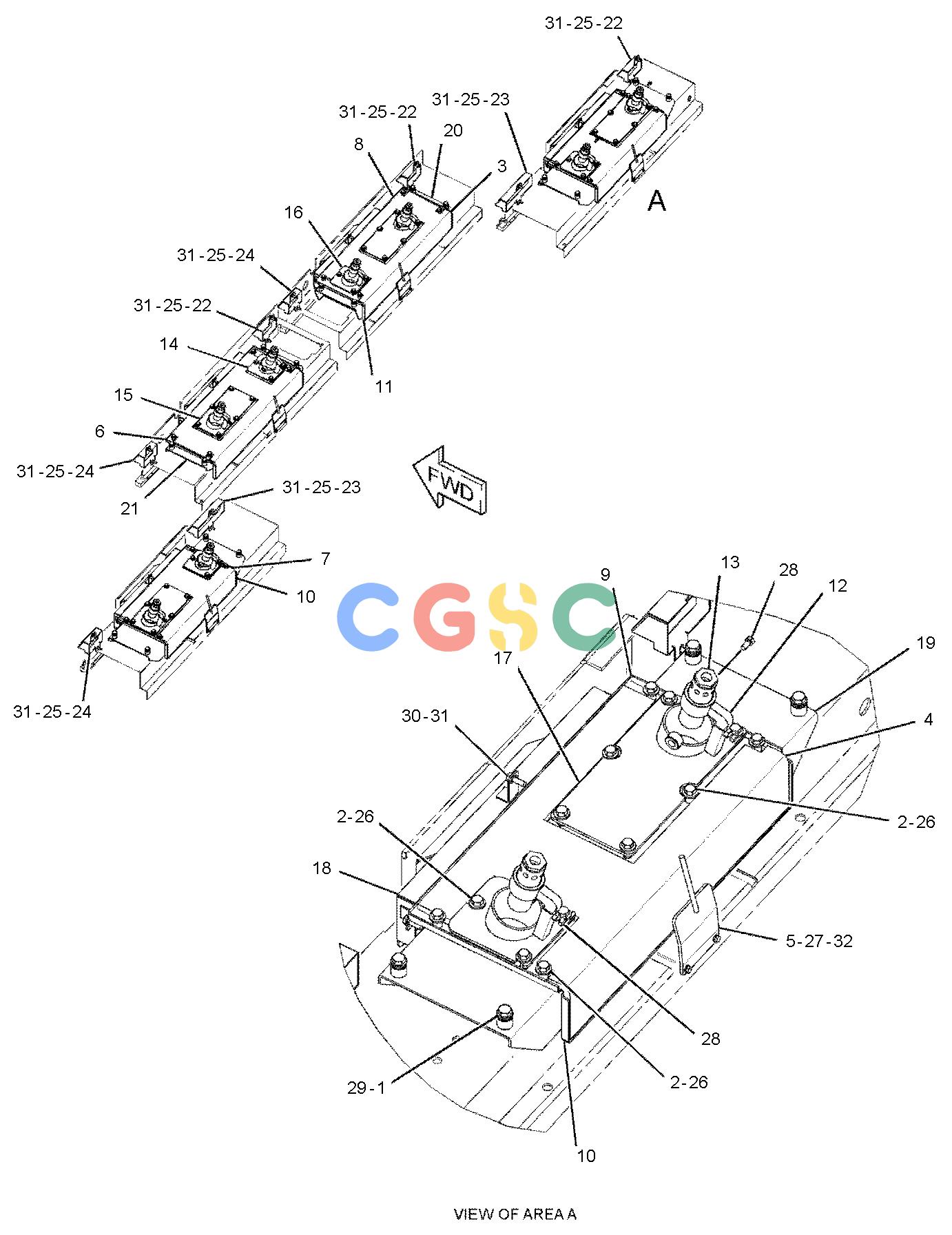

卡特零件查询（AP-655D） 339-1609: BURNER GP
广数供应链运营团队, 17 02月, 2025，浏览：
712 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 249-3036M | [16] | BOLT(M12X1.75X20-MM) | |
| 2. | 250-7138M | [52] | BOLT(M10X1.5X25-MM) | |
| 3. | 257-5260 | [2] | INSULATOR-HEAT | |
| 4. | 257-5261 | [2] | INSULATOR-HEAT | |
| 5. | 276-5628 | [4] | PROTECTION AS(SENSOR) | |
| 6. | 288-9402 | [1] | PLATE AS(MAIN, LH) | |
| 7. | 288-9403 | [1] | PLATE AS(SLIDING, LH) | |
| 8. | 288-9404 | [1] | PLATE AS(MAIN, RH) | |
| 9. | 288-9405 | [1] | PLATE AS(SLIDING, RH) | |
| 10. | 288-9407 | [2] | PLATE AS(SLIDING, REAR) | |
| | | | (EACH INCLUDES) |
| | 5C-2890M | [3] | NUT(M6X1-THD) | |
| 11. | 289-0514 | [2] | PROTECTION AS | |
| 12. | 335-0607 | [8] | SUPPORT AS | |
| 13. | 335-0608 | [8] | BURNER | |
| 14. | 335-0609 | [2] | SUPPORT AS | |
| 15. | 339-1594 | [2] | SUPPORT AS | |
| 16. | 339-1595 | [2] | SUPPORT AS | |
| 17. | 339-1596 | [2] | SUPPORT AS | |
| 18. | 339-1597 | [4] | DIFFUSER AS | |
| 19. | 339-1598 | [2] | DIFFUSER AS(SLIDING) | |
| 20. | 339-1603 | [1] | DIFFUSER AS(MAIN, RH) | |
| 21. | 339-1604 | [1] | DIFFUSER AS(MAIN, LH) | |
| 22. | 339-1612 | [3] | CHANNEL AS | |
| 23. | 339-1613 | [2] | PLATE AS | |
| 24. | 339-1616 | [3] | CHANNEL AS | |
| 25. | 5P-4116 | [16] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 26. | 7X-7729 | [52] | WASHER(11X25X3-MM THK) | |
| 27. | 8T-4171M | [20] | BOLT(M6X1X12-MM) | |
| 28. | 8T-4200M | [16] | BOLT(M8X1.25X16-MM) | |
| 29. | 8T-4223 | [16] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 30. | 8T-4224 | [12] | WASHER-HARD(8.8X16X2-MM THK) | |
| 31. | 8T-4908M | [28] | BOLT(M8X1.25X25-MM) | |
| 32. | 9X-8256 | [8] | WASHER(6.6X12X2-MM THK) | |
| | M | | METRIC PART |
