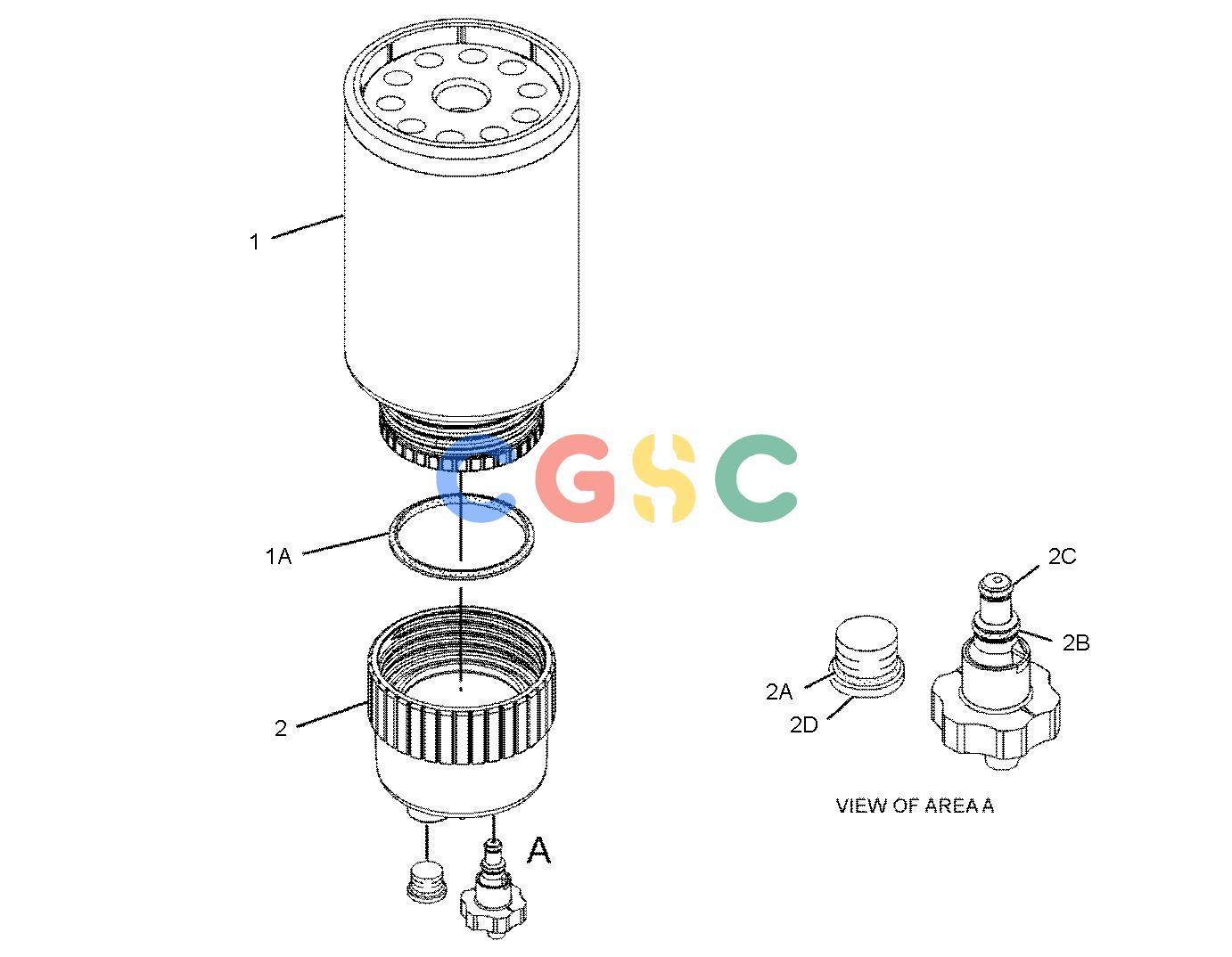

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 326-1644 | [1] | FILTER AS-WATER SEP & FUEL(PRIMARY) | |
| 1A. | 220-8678 | [1] | SEAL-RING(FUEL, WATER SEPARATOR) | |
| 2. | 343-5527 | [1] | BOWL AS | |
| 2A. | 3J-1907BJ | [1] | SEAL-O-RING | |
| 2B. | 5F-9144 | [1] | SEAL-O-RING | |
| 2C. | 8F-7219 | [1] | SEAL-O-RING | |
| 2D. | 9S-8004BJ | [1] | PLUG(9/16-18-THD)(DRAIN) | |
| B | USE AS REQUIRED | |||
| J | PARTS MARKED J ARE USED WITH BOWL ASSEMBLY THAT IS NOT ONE PIECE. | |||
