卡特零件查询（AP-655D） 299-7235: CROWN GP-POWER
广数供应链运营团队, 17 02月, 2025，浏览：
970 次

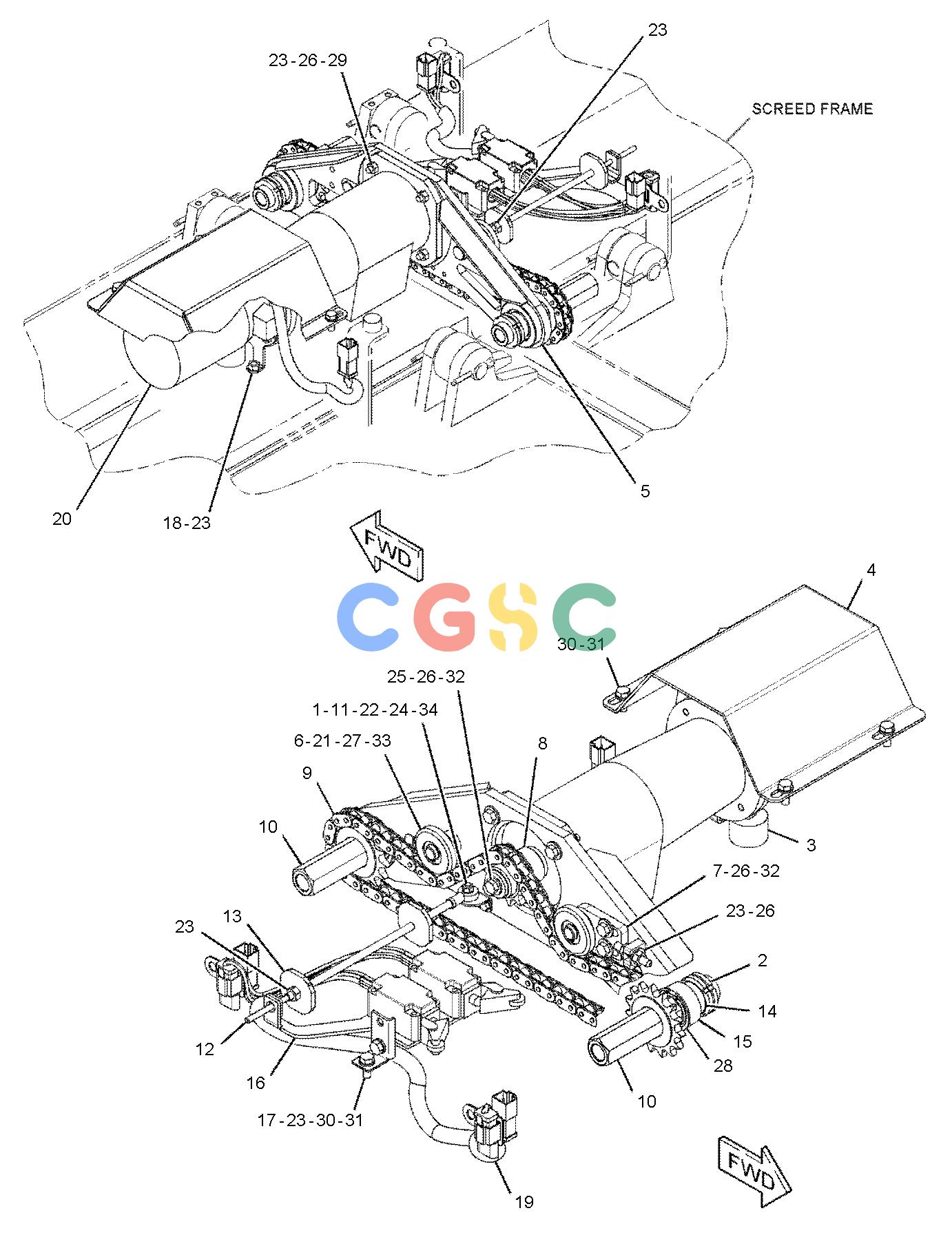

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7U-2713 | [1] | ROD END | |
| 2. | 104-6641 | [4] | LOCKNUT-BEARING(M30X1.5-THD) | |
| 3. | 242-2810 | [1] | STOPPER-RUBBER | |
| 4. | 251-0847 | [1] | COVER | |
| 5. | 255-2245 | [1] | SUPPORT AS | |
| 6. | 258-7180 | [2] | ROLLER | |
| 7. | 258-7181 | [1] | SLIDE AS | |
| 8. | 258-7182 | [1] | PINION | |
| 9. | 258-7183 | [1] | CHAIN | |
| 10. | 258-7184 | [2] | GEAR AS(15-TEETH) | |
| 11. | 258-7191 | [1] | PIN | |
| 12. | 258-7195 | [1] | SHAFT | |
| 13. | 258-7196 | [2] | STOP | |
| 14. | 273-2046 | [2] | SPACER(31X36X12.5-MM THK) | |
| 15. | 273-2047 | [2] | BEARING-ALIGNING | |
| 16. | 277-9123 | [1] | SUPPORT AS | |
| 17. | 277-9179 | [2] | SUPPORT | |
| 18. | 286-3637 | [1] | SUPPORT AS | |
| 19. | 299-7223Y | [1] | WIRING GP-CROWN | |
| 20. | 299-7245Y | [1] | MOTOR GP-ELECTRIC | |
| 21. | 170-4735 | [2] | RING-RETAINING | |
| 22. | 5C-2890M | [1] | NUT(M6X1-THD) | |
| 23. | 5C-7261M | [11] | NUT(M8X1.25-THD) | |
| 24. | 5C-9553M | [2] | BOLT(M6X1X16-MM) | |
| 25. | 5P-1076 | [1] | WASHER-HARD(13.5X30X4-MM THK) | |
| 26. | 5P-4116 | [9] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 27. | 6D-3852 | [2] | BALL BEARING | |
| 28. | 6V-8755 | [2] | RING-RETAINING | |
| 29. | 7X-2537M | [4] | BOLT(M8X1.25X35-MM) | |
| 30. | 8T-4189M | [8] | BOLT(M8X1.25X20-MM) | |
| 31. | 8T-4224 | [10] | WASHER-HARD(8.8X16X2-MM THK) | |
| 32. | 8T-4908M | [3] | BOLT(M8X1.25X25-MM) | |
| 33. | 9T-0835 | [2] | RING-RETAINING | |
| 34. | 9X-8256 | [2] | WASHER(6.6X12X2-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
