卡特零件查询（AP-655D） 351-0186: CROWN GP-POWER
广数供应链运营团队, 17 02月, 2025，浏览：
171 次

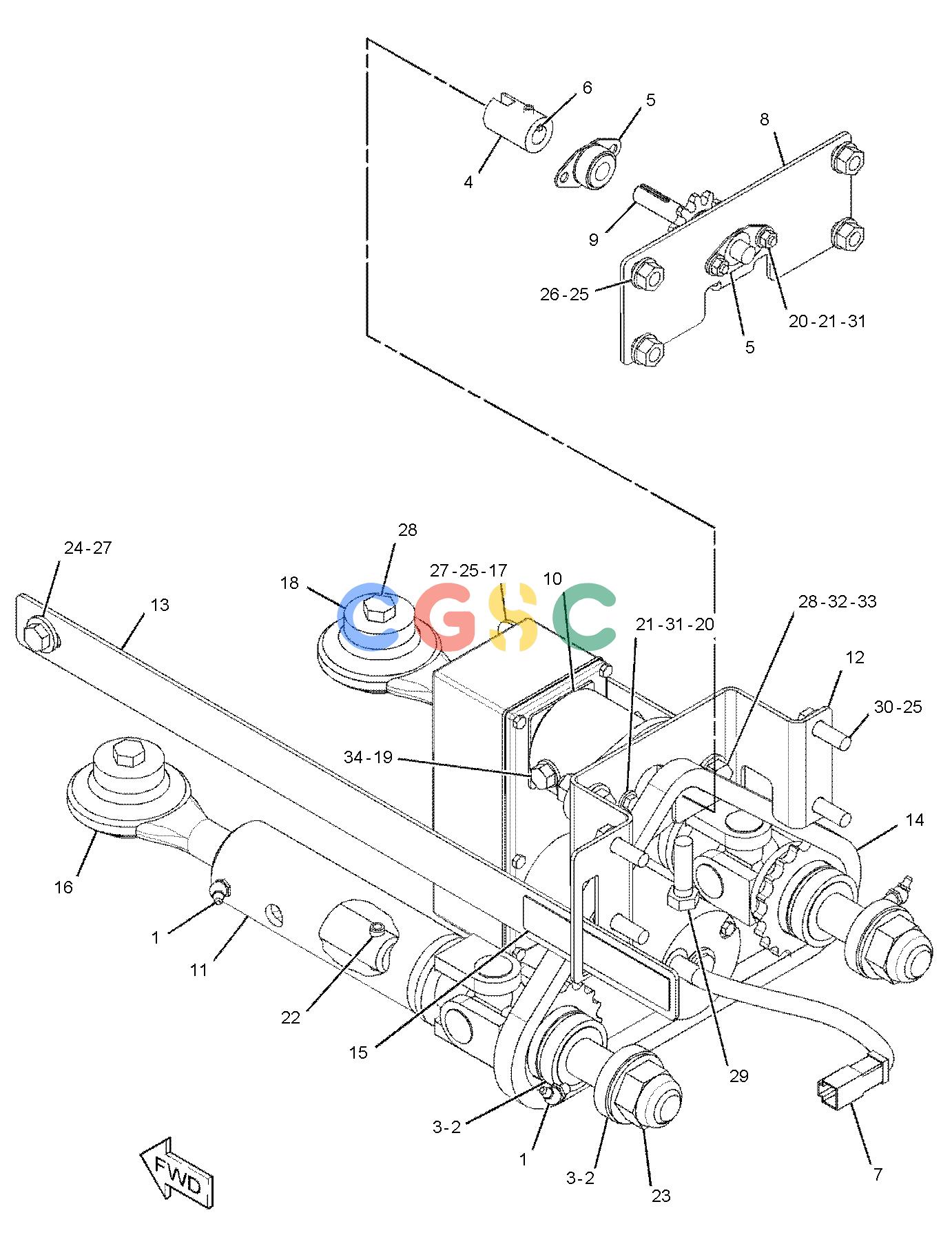

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3B-8485 | [4] | ELBOW | |
| 2. | 3P-8680 | [4] | CUP-BEARING | |
| 3. | 3P-8681 | [4] | CONE-BEARING | |
| 4. | 8I-0740 | [1] | COUPLING GP | |
| | 4B-9806 | [1] | SETSCREW-SOCKET(1/4-20X0.25-IN) | |
| 5. | 102-2701 | [2] | BEARING | |
| 6. | 102-2739 | [1] | KEY-SQUARE | |
| 7. | 277-2004Y | [1] | MOTOR GP-POWER ADJUSTER(ACTUATED) | |
| 8. | 282-0633 | [1] | PLATE | |
| 9. | 282-0637 | [1] | SHAFT AS-ADJUSTMENT | |
| 10. | 282-0642 | [1] | BRACKET AS | |
| 11. | 334-2654Y | [2] | SHAFT GP-DRIVE(NON-ACTUATED) | |
| 12. | 351-0188 | [1] | BRACKET | |
| 13. | 351-0193 | [1] | PLATE-MOUNTING | |
| 14. | 351-0194 | [1] | CHAIN GP | |
| | 102-2687 | [1] | LINK-CONNECTING | |
| | 195-9533 | [1] | LINK-OFFSET | |
| 15. | 351-0195 | [1] | FILM-IDENTIFICATION(CROWN) | |
| 16. | 365-7778 | [2] | BALL JOINT AS | |
| 17. | 370-3259 | [1] | PLATE-COVER | |
| 18. | 1W-5040 | [2] | WASHER-RETAINING(13.8X45.5X12-MM THK) | |
| 19. | 4L-6454 | [2] | BOLT(3/8-16X1-IN) | |
| 20. | 5C-2890M | [4] | NUT(M6X1-THD) | |
| 21. | 5C-9553M | [4] | BOLT(M6X1X16-MM) | |
| 22. | 5J-3941 | [2] | PIN-SPRING | |
| 23. | 6V-7676M | [2] | NUT(M24X3-THD) | |
| 24. | 7X-7729 | [1] | WASHER(11X25X3-MM THK) | |
| 25. | 8T-4121 | [10] | WASHER-HARD(11X21X2.5-MM THK) | |
| 26. | 8T-4133M | [4] | NUT(M10X1.5-THD) | |
| 27. | 8T-4137M | [3] | BOLT(M10X1.5X20-MM) | |
| 28. | 8T-4139M | [4] | BOLT(M12X1.75X30-MM) | |
| 29. | 8T-4183M | [1] | BOLT(M12X1.75X40-MM) | |
| 30. | 8T-4195M | [4] | BOLT(M10X1.5X30-MM) | |
| 31. | 8T-4205 | [8] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 32. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 33. | 8T-4244M | [2] | NUT(M12X1.75-THD) | |
| 34. | 8T-4896 | [2] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
