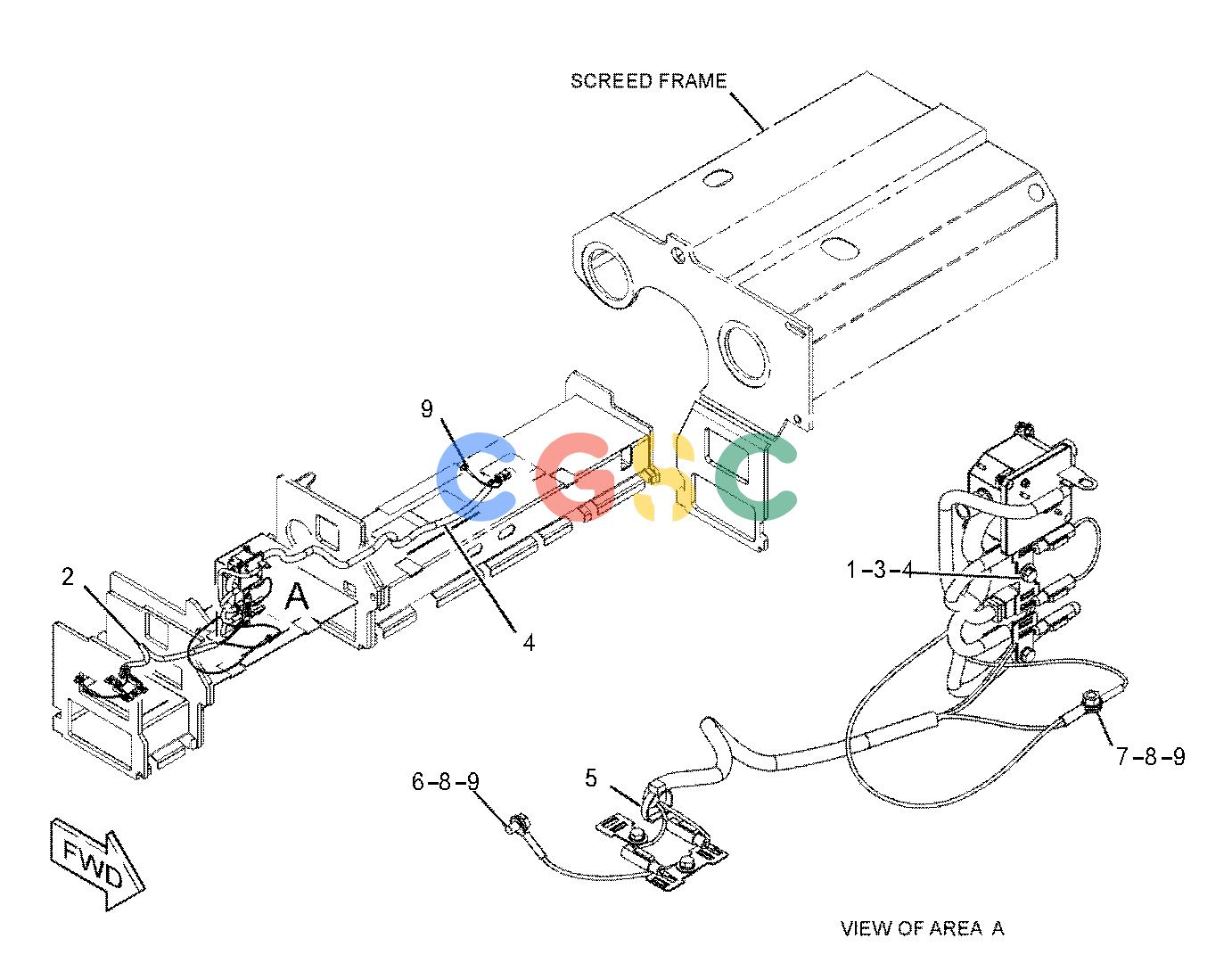

卡特零件查询（AP-655D） 304-9107: WIRING GP-HEATER
广数供应链运营团队, 17 02月, 2025，浏览：
752 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 130-5300 | [3] | CLIP | |
| 2. | 309-7502 | [1] | HARNESS AS-WIRING(250-MM EXTENSION, RH) | |
| | 240-5877E | | CONDUIT-FLEXIBLE(12-MM ID)(100-CM) | |
| | 9X-3401 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | | | -OR- |
| | 126-1767 | [2] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| | 129-7163 | [2] | PLUG AS-CONNECTOR(1-PIN) | |
| | 8T-8737 | [4] | PLUG-SEAL | |
| | 102-8805 | [1] | KIT-RECEPTACLE(6-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 8N-1541 | [2] | SOCKET-CONNECTOR(12-GA TO 14-GA) | |
| | 2L-8069 | [2] | TERMINAL-RING(2-GA TO 10-GA, 3/8-IN SCREW) | |
| | 8T-2225E | | TUBE-HEAT SHRINK(25.4-MM DIA)(15-CM) | |
| 3. | 8T-0642M | [2] | BOLT(M8X1.25X14-MM) | |
| 4. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 5. | 7K-1181 | [1] | STRAP-CABLE | |
| 6. | 6V-8212M | [2] | BOLT(M10X1.5X16-MM) | |
| 7. | 8T-4133M | [1] | NUT(M10X1.5-THD) | |
| 8. | 7F-6998 | [3] | LOCKWASHER | |
| 9. | 101-3917 | [5] | WASHER(10.5X21X2-MM THK) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
