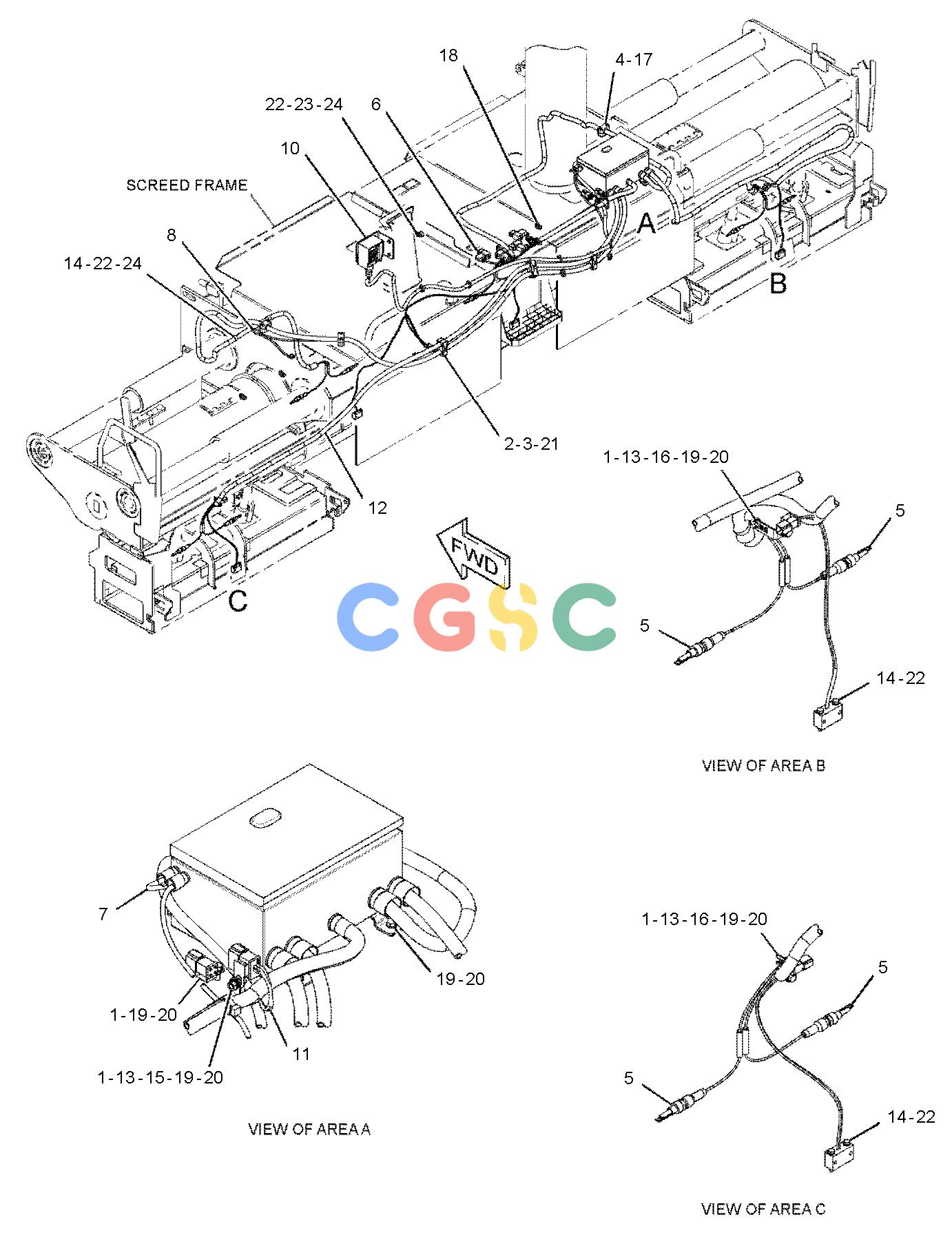

卡特零件查询（AP-655D） 286-3632: WIRING GP-HEATER
广数供应链运营团队, 17 02月, 2025，浏览：
504 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 116-0118 | [6] | CLIP | |
| 2. | 138-4572 | [3] | COVER | |
| 3. | 148-0342 | [6] | CLAMP | |
| 4. | 208-0075 | [6] | CLAMP-HALF | |
| 5. | 274-1163 | [8] | SPARK PLUG | |
| 6. | 274-1165 | [4] | SOLENOID-VALVE(LPG) | |
| 7. | 279-3661 | [1] | CABLE AS-EXTENSION(LH) | |
| 8. | 279-3662 | [1] | CABLE AS-EXTENSION(RH) | |
| 10. | 307-9160Y | [1] | CONTROL & MTG GP-MACHINE | |
| 11. | 307-9161 | [1] | CABLE AS | |
| 12. | 319-7155Y | [1] | WIRING GP-HEATER(LPG HEAT) | |
| 13. | 132-5789 | [4] | CLIP(LADDER) | |
| 14. | 246-2207 | [8] | BOLT(M6X1X40-MM) | |
| 15. | 5C-7261M | [2] | NUT(M8X1.25-THD) | |
| 16. | 5P-7970M | [2] | NUT(M8X1.25-THD) | |
| 17. | 6V-8653M | [6] | BOLT-SOCKET HEAD(M6X1X40-MM) | |
| 18. | 7K-1181 | [13] | STRAP-CABLE | |
| 19. | 8T-4189M | [9] | BOLT(M8X1.25X20-MM) | |
| 20. | 8T-4224 | [13] | WASHER-HARD(8.8X16X2-MM THK) | |
| 21. | 8T-6912M | [3] | BOLT(M8X1.25X50-MM) | |
| 22. | 9X-8256 | [11] | WASHER(6.6X12X2-MM THK) | |
| 23. | 6V-4369 | [3] | CLIP | |
| 24. | 294-6007 | [3] | BOLT-HEAD LOCKING(M6X1X18-MM) | |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
| | Y | | SEPARATE ILLUSTRATION |
