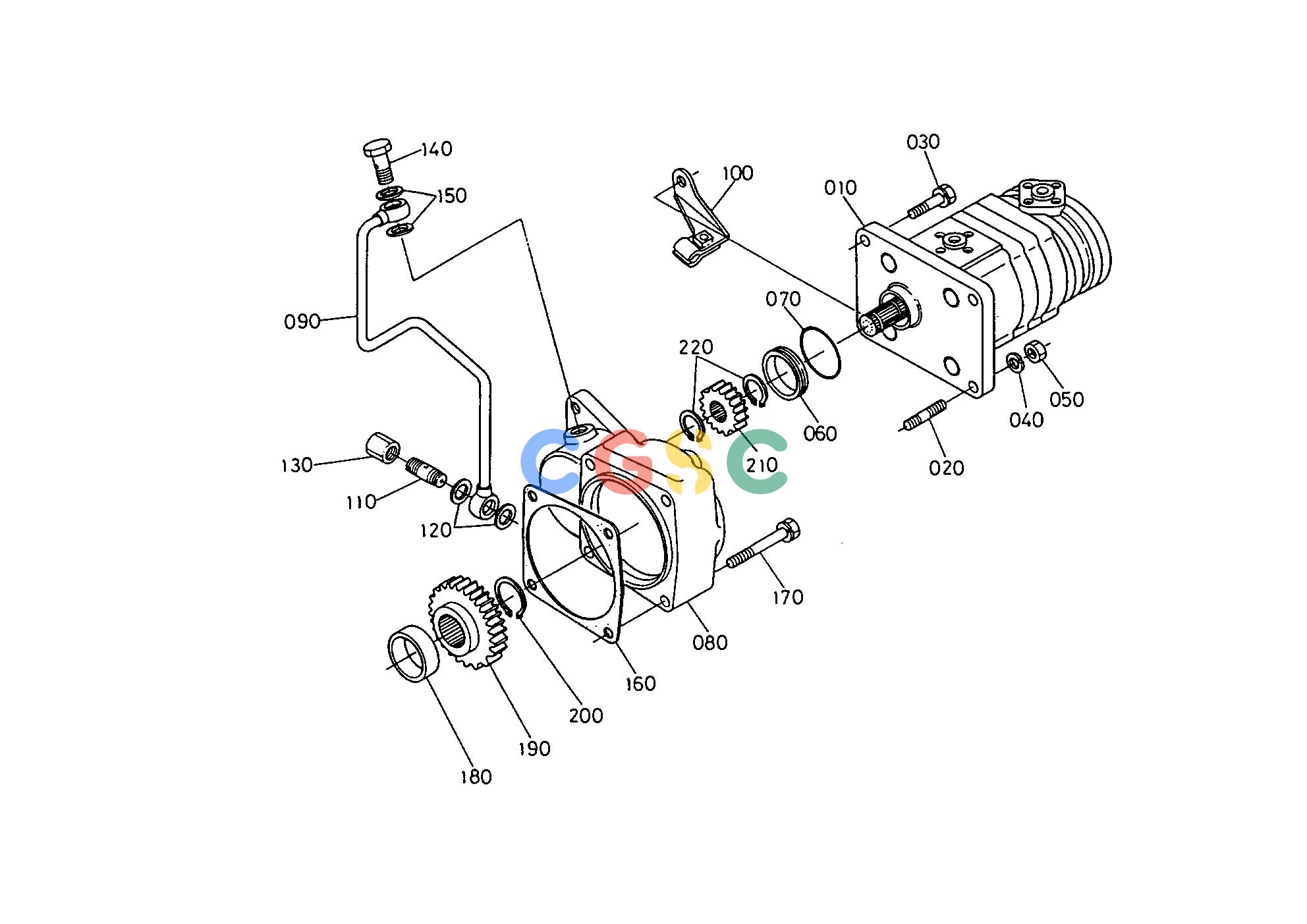

久保田零件查询T07300 HYDRAULIC PUMP (MANUAL SHUTTLE) HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
503 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3543082202
|
[1] |
PUMP HYDRAULIC
|
12.7600(lbs); 5.800
|
| 020. |
0151350830
|
[2] |
STUD
|
0.0308(lbs); 0.014
|
| 030. |
0112350835
|
[2] |
BOLT
|
0.0440(lbs); 0.020
|
| 040. |
0451250080
|
[2] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 050. |
0211450080
|
[2] |
NUT
|
0.0110(lbs); 0.005
|
| 060. |
3620082250
|
[1] |
RING
|
0.1584(lbs); 0.072
|
| 070. |
0481110500
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 080. |
3253010580
|
[1] |
BASE PUMP
|
3.3440(lbs); 1.520
|
| 090. |
3251010670
|
[1] |
PIPE
|
0.2200(lbs); 0.100
|
| 100. |
3253010690
|
[1] |
CLAMP
|
0.0880(lbs); 0.040
|
| 110. |
3251010730
|
[1] |
STUD JOINT
|
0.0220(lbs); 0.010
|
| 120. |
1502133660
|
[2] |
GASKET
|
0.0022(lbs); 0.001
|
| 130. |
3251010740
|
[1] |
NUT
|
0.0220(lbs); 0.010
|
| 140. |
3253010720
|
[1] |
BOLT JOINT
|
0.0770(lbs); 0.035
|
| 150. |
0472400120
|
[2] |
GASKET
|
0.0044(lbs); 0.002
|
| 160. |
3415037860
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 170. |
0112350850
|
[4] |
BOLT
|
0.0440(lbs); 0.020
|
| 180. |
3620082260
|
[1] |
COLLAR
|
0.0770(lbs); 0.035
|
| 190. |
3623082270
|
[1] |
GEAR
|
0.9240(lbs); 0.420
|
| 200. |
0461200250
|
[1] |
CIR-CLIP EXTERNAL
|
0.0044(lbs); 0.002
|
| 210. |
3623082280
|
[1] |
GEAR
|
0.3520(lbs); 0.160
|
| 220. |
0461200170
|
[2] |
CIR-CLIP EXTERNAL
|
0.0022(lbs); 0.001
|
