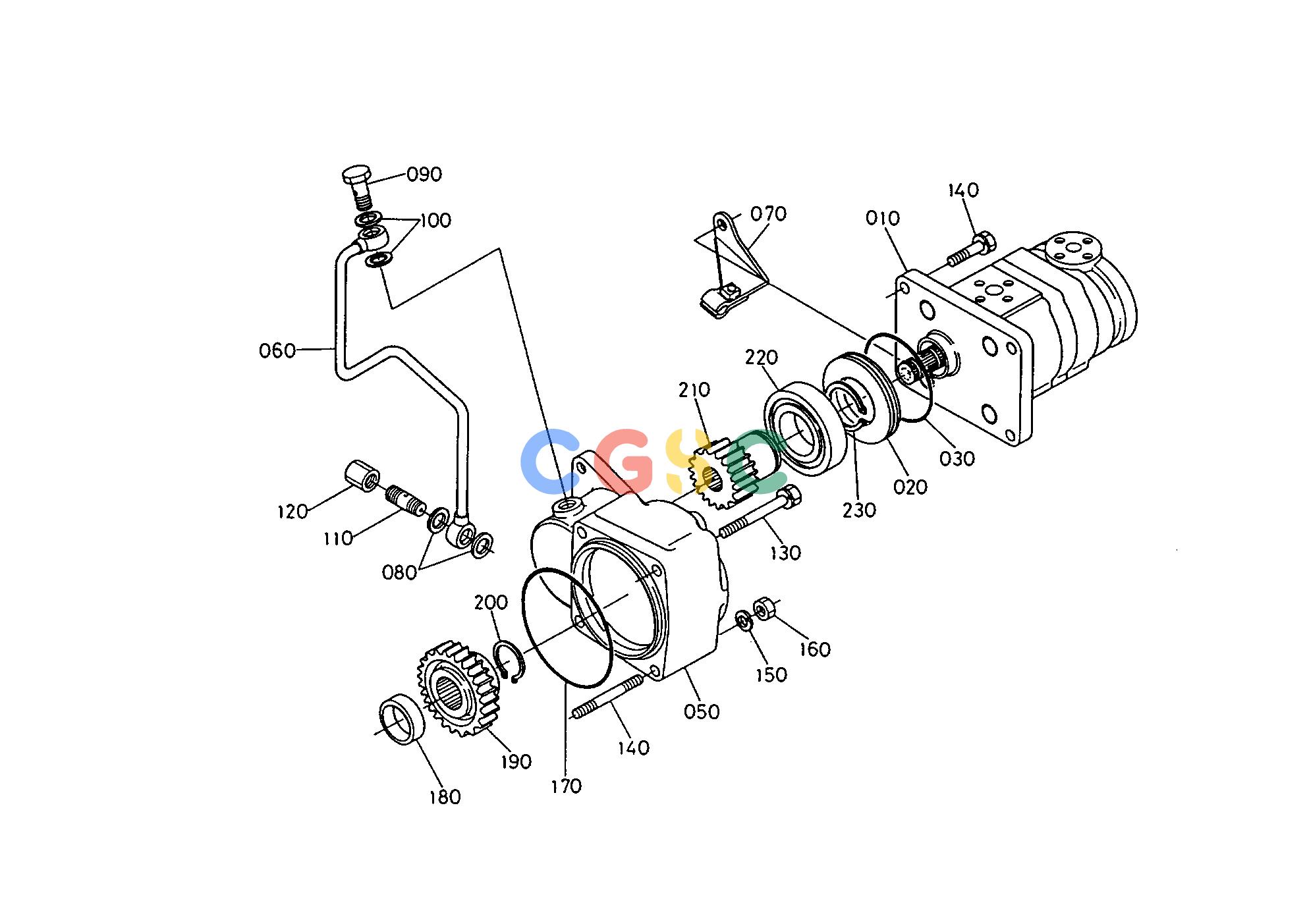

久保田零件查询T07400 HYDRAULIC PUMP (HYD.SHUTTLE) HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
185 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3253076102
|
[1] |
PUMP HYDRAULIC
|
14.3000(lbs); 6.500
|
| 020. |
3253010640
|
[1] |
SPACER
|
0.2530(lbs); 0.115
|
| 030. |
0481106560
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 040. |
0112350835
|
[4] |
BOLT
|
0.0440(lbs); 0.020
|
| 050. |
3253010610
|
[1] |
BASE PUMP
|
4.4880(lbs); 2.040
|
| 060. |
3251010660
|
[1] |
PIPE
|
0.2200(lbs); 0.100
|
| 070. |
3253010680
|
[1] |
CLAMP
|
0.0880(lbs); 0.040
|
| 080. |
1502133660
|
[2] |
GASKET
|
0.0022(lbs); 0.001
|
| 090. |
3253010720
|
[1] |
BOLT JOINT
|
0.0770(lbs); 0.035
|
| 100. |
0472400120
|
[2] |
GASKET
|
0.0044(lbs); 0.002
|
| 110. |
3251010730
|
[1] |
STUD JOINT
|
0.0220(lbs); 0.010
|
| 120. |
3251010740
|
[1] |
NUT
|
0.0220(lbs); 0.010
|
| 130. |
0112350865
|
[2] |
BOLT
|
0.0572(lbs); 0.026
|
| 140. |
0151350860
|
[2] |
STUD
|
0.0528(lbs); 0.024
|
| 150. |
0451250080
|
[2] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 160. |
0215650080
|
[2] |
NUT
|
0.0088(lbs); 0.004
|
| 170. |
0481110850
|
[1] |
RING
|
0.0044(lbs); 0.002
|
| 180. |
3253010650
|
[1] |
COLLAR
|
0.0440(lbs); 0.020
|
| 190. |
3253010620
|
[1] |
GEAR
|
0.8800(lbs); 0.400
|
| 200. |
0461200250
|
[1] |
CIR-CLIP EXTERNAL
|
0.0044(lbs); 0.002
|
| 210. |
3253010630
|
[1] |
GEAR
|
0.5940(lbs); 0.270
|
| 220. |
0824103206
|
[1] |
BEARING BALL
|
0.6644(lbs); 0.302
|
| 230. |
0461200300
|
[1] |
CIR-CLIP EXTERNAL
|
0.0066(lbs); 0.003
|
