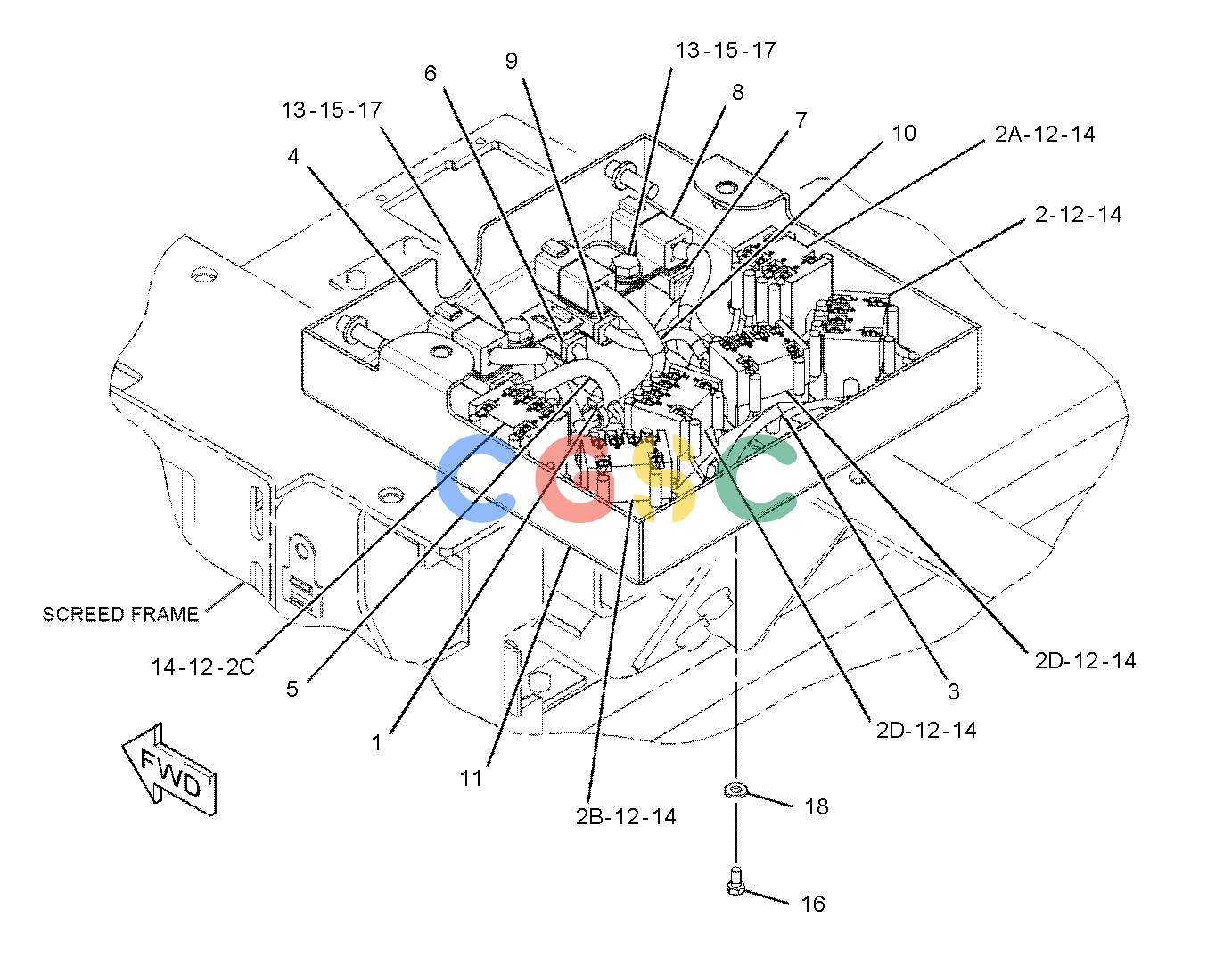

| 1. | 3S-2093 | [8] | STRAP-CABLE | |
| 2. | 348-2408 | [1] | RELAY AS(24-VOLT)(EXTENDER, LH) | |
| 2A. | 348-2408 | [1] | RELAY AS(24-VOLT)(EXTENDER, RH) | |
| 2B. | 348-2408 | [1] | RELAY AS(24-VOLT)(MAIN, LH) | |
| 2C. | 348-2408 | [1] | RELAY AS(24-VOLT)(MAIN, RH) | |
| 2D. | 348-2408 | [2] | RELAY AS(24-VOLT)(TRACTOR) | |
| 3. | 356-2052Y | [1] | HARNESS AS-BOX(MAIN) | |
| 4. | 356-2053 | [1] | HARNESS AS-BOX(TRACTOR, LH) | |
| | 177-9653 | [1] | KIT-RECEPTACLE(4-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 5P-1477 | [4] | TERMINAL-FORK(10-GA TO 12-GA, NO. 8 SCREW) | |
| | 7T-0093 | [4] | PIN-CONNECTOR(12-GA TO 14-GA) | |
| 5. | 356-2054 | [1] | HARNESS AS-BOX(EXTENDER, LH) | |
| | 177-9656 | [1] | KIT-CONNECTING PLUG(4-PIN) | |
| | | | (INCLUDES PLUG AS & WEDGE) |
| | 5P-1477 | [4] | TERMINAL-FORK(10-GA TO 12-GA, NO. 8 SCREW) | |
| | 7T-0094 | [4] | SOCKET-CONNECTOR(12-GA TO 14-GA) | |
| 6. | 356-2055 | [1] | HARNESS AS-BOX(MAIN, LH) | |
| | 177-9648 | [1] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (INCLUDES PLUG AS & WEDGE) |
| | 5P-1477 | [2] | TERMINAL-FORK(10-GA TO 12-GA, NO. 8 SCREW) | |
| | 7T-0094 | [2] | SOCKET-CONNECTOR(12-GA TO 14-GA) | |
| 7. | 356-2056 | [1] | HARNESS AS-BOX(EXTENDER, RH) | |
| | 7T-0094 | [4] | SOCKET-CONNECTOR(12-GA TO 14-GA) | |
| | 5P-1477 | [4] | TERMINAL-FORK(10-GA TO 12-GA, NO. 8 SCREW) | |
| | 177-9656 | [1] | KIT-CONNECTING PLUG(4-PIN) | |
| | | | (INCLUDES PLUG AS & WEDGE) |
| 8. | 356-2057 | [1] | HARNESS AS-BOX(TRACTOR, RH) | |
| | 177-9653 | [1] | KIT-RECEPTACLE(4-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 5P-1477 | [4] | TERMINAL-FORK(10-GA TO 12-GA, NO. 8 SCREW) | |
| | 7T-0093 | [4] | PIN-CONNECTOR(12-GA TO 14-GA) | |
| 9. | 356-2058 | [1] | HARNESS AS-BOX(MAIN, RH) | |
| | 7T-0094 | [2] | SOCKET-CONNECTOR(12-GA TO 14-GA) | |
| | 5P-1477 | [2] | TERMINAL-FORK(10-GA TO 12-GA, NO. 8 SCREW) | |
| | 177-9648 | [1] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (INCLUDES PLUG AS & WEDGE) |
| 10. | 356-2059 | [1] | HARNESS AS-BOX(TRACTOR EXTENSIONS) | |
| | 7T-0093 | [4] | PIN-CONNECTOR(12-GA TO 14-GA) | |
| | 177-9653 | [1] | KIT-RECEPTACLE(4-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 5P-1477 | [4] | TERMINAL-FORK(10-GA TO 12-GA, NO. 8 SCREW) | |
| 11. | 356-2060 | [1] | BOX AS | |
| 12. | 096-6166 | [12] | WASHER-HARD(4.5X9X1-MM THK) | |
| 13. | 130-5300 | [7] | CLIP | |
| 14. | 8C-7581M | [12] | SCREW-MACHINE(M4X0.7X8-MM) | |
| 15. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 16. | 8T-4171M | [2] | BOLT(M6X1X12-MM) | |
| 17. | 8T-4191M | [2] | BOLT(M10X1.5X16-MM) | |
| 18. | 8T-4205 | [2] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
