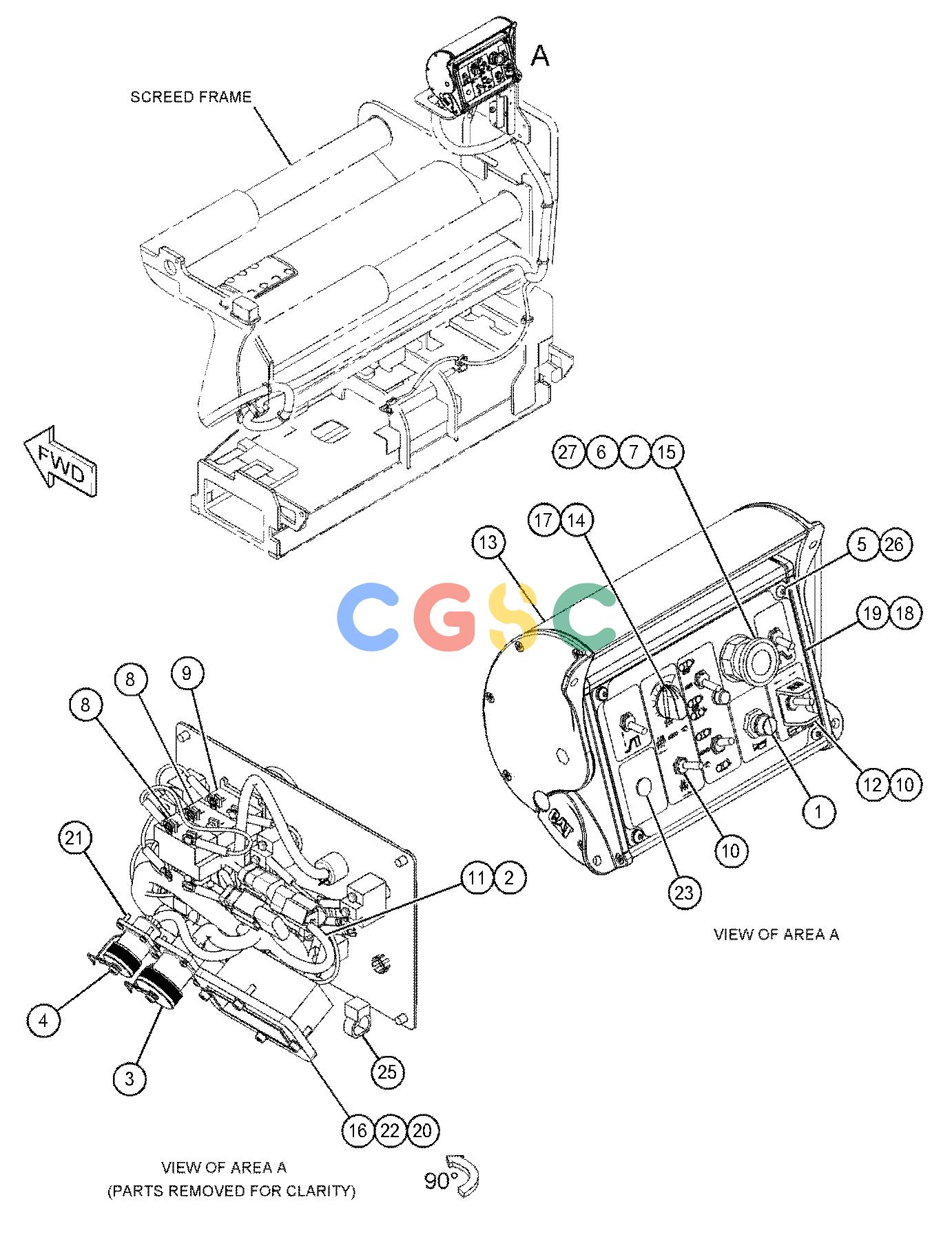

卡特零件查询（AP-655D） 383-2076: BOX GP-SCREED CONTROL
广数供应链运营团队, 17 02月, 2025，浏览：
208 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3D-9718 | [1] | SWITCH AS-PUSH BUTTON(HORN) | |
| | 6V-8376 | [2] | SCREW-MACHINE(8-32X0.25-IN) | |
| | 6V-8832 | [1] | NUT(5/8-32-THD) | |
| | 9B-7233 | [2] | LOCKWASHER | |
| 2. | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 3. | 7R-3029 | [1] | CAP-DUST | |
| 4. | 8D-9537 | [1] | CAP-DUST | |
| 5. | 089-8034M | [4] | SCREW-BUTTON HEAD | |
| 6. | 116-5270 | [1] | LAMP(24-VOLT) | |
| 7. | 116-5275 | [1] | SWITCH GP-PUSH BUTTON(OPERATOR)(PARKING BRAKE) | |
| 8. | 116-5277 | [2] | BLOCK(CONTACT) | |
| 9. | 116-6565 | [1] | BLOCK AS(LIGHT) | |
| | 8L-9801 | [1] | LAMP(12-VOLT) | |
| 10. | 246-8912Y | [6] | SWITCH GP-TOGGLE(FEEDER CONTROL) | |
| 11. | 250-2299 | [1] | LAMP AS-LED(24-VOLT, GREEN) | |
| | 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| 12. | 265-9984 | [1] | BRACKET | |
| 13. | 288-6122Y | [1] | BOX GP-SCREED CONTROL(RH) | |
| 14. | 316-5717 | [1] | KNOB AS | |
| 15. | 347-8607 | [1] | KNOB(PARKING BRAKE) | |
| 16. | 352-0670Y | [1] | HARNESS AS-BOX | |
| 17. | 378-3321 | [1] | POTENTIOMETER AS(DRILL SPEED) | |
| | 8T-8729 | [3] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 9X-1813E | | SLEEVE(25-CM) | |
| | 8T-6342E | | TUBE-HEAT SHRINK(3.2-MM DIA)(10-CM) | |
| 18. | 383-2071 | [1] | PLATE | |
| 19. | 383-2072 | [1] | FILM-PANEL | |
| 20. | 096-6166 | [4] | WASHER-HARD(4.5X9X1-MM THK) | |
| 21. | 155-4098M | [8] | SCREW-BUTTON HEAD(M3X0.5X1-MM) | |
| 22. | 162-2165M | [4] | BOLT-SOCKET HEAD(M4X0.7X16-MM) | |
| 23. | 3D-9872 | [1] | PLUG-BUTTON | |
| 25. | 7K-1181 | [3] | STRAP-CABLE | |
| 26. | 9X-8256 | [4] | WASHER(6.6X12X2-MM THK) | |
| 27. | 124-0623 | [1] | SEAL-O-RING | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
