久保田零件查询T11400 PRE-CLEANER [OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
350 次

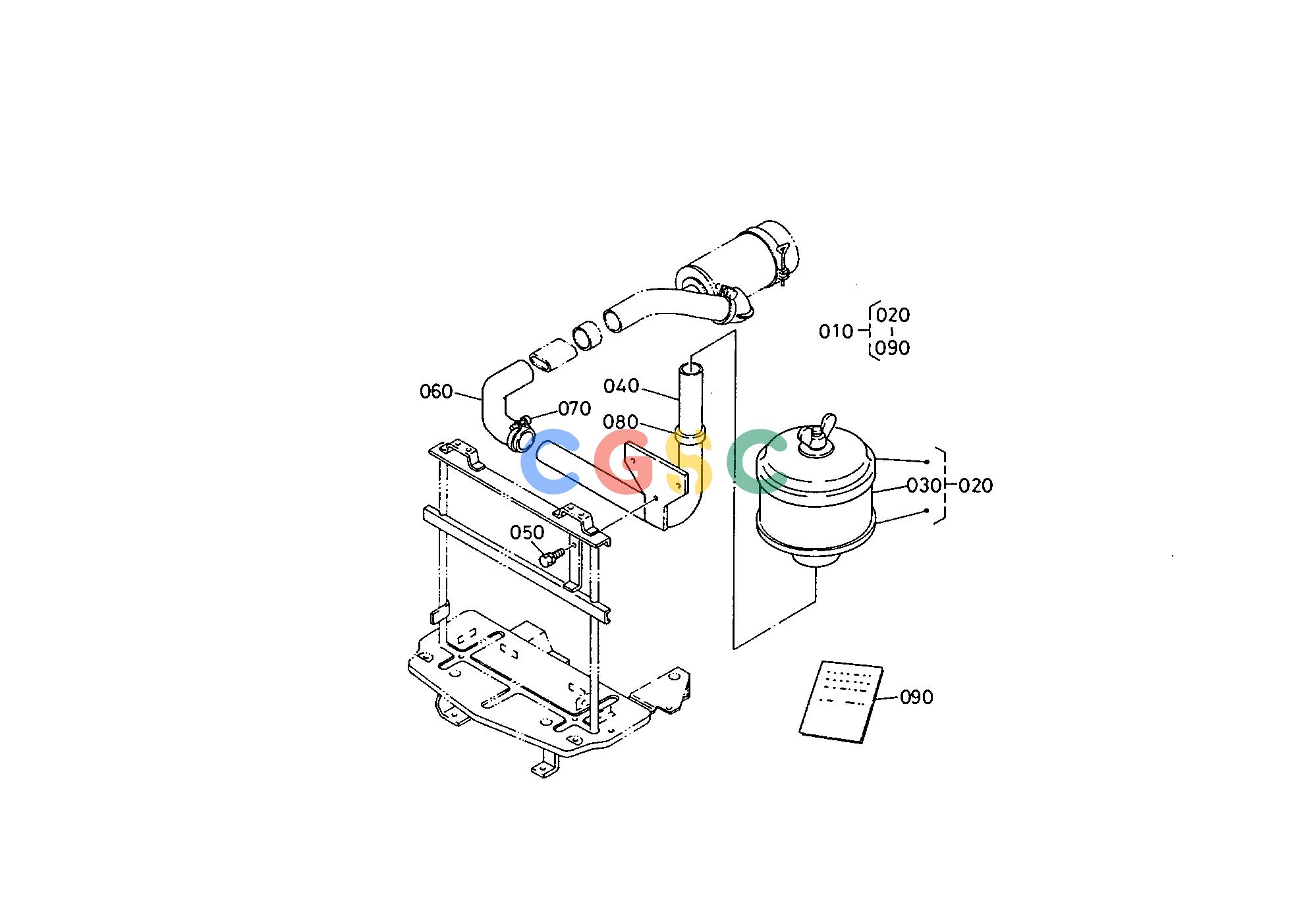

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3253096160
|
[1] |
ASSY PRE-CLEANER
|
7.7000(lbs); 3.500
|
| 020. |
3253096110
|
[1] |
ASSY PRE-CLEANER
|
1.6720(lbs); 0.760
|
| 030. |
3253096170
|
[1] |
CHAMBER DUST
|
0.4400(lbs); 0.200
|
| 040. |
3253096120
|
[1] |
PIPE PRE-CLEANER
|
4.9720(lbs); 2.260
|
| 050. |
0112350816
|
[3] |
BOLT
|
0.0242(lbs); 0.011
|
| 060. |
3253096130
|
[1] |
PIPE INLET
|
0.9900(lbs); 0.450
|
| 070. |
6881142270
|
[1] |
BAND PIPE
|
0.0880(lbs); 0.040
|
| 080. |
3253096140
|
[1] |
CUSHION
|
0.0660(lbs); 0.030
|
| 090. |
3253096150
|
[1] |
MANUAL STRUCTURE
|
0.0000(lbs); 0.000
|
