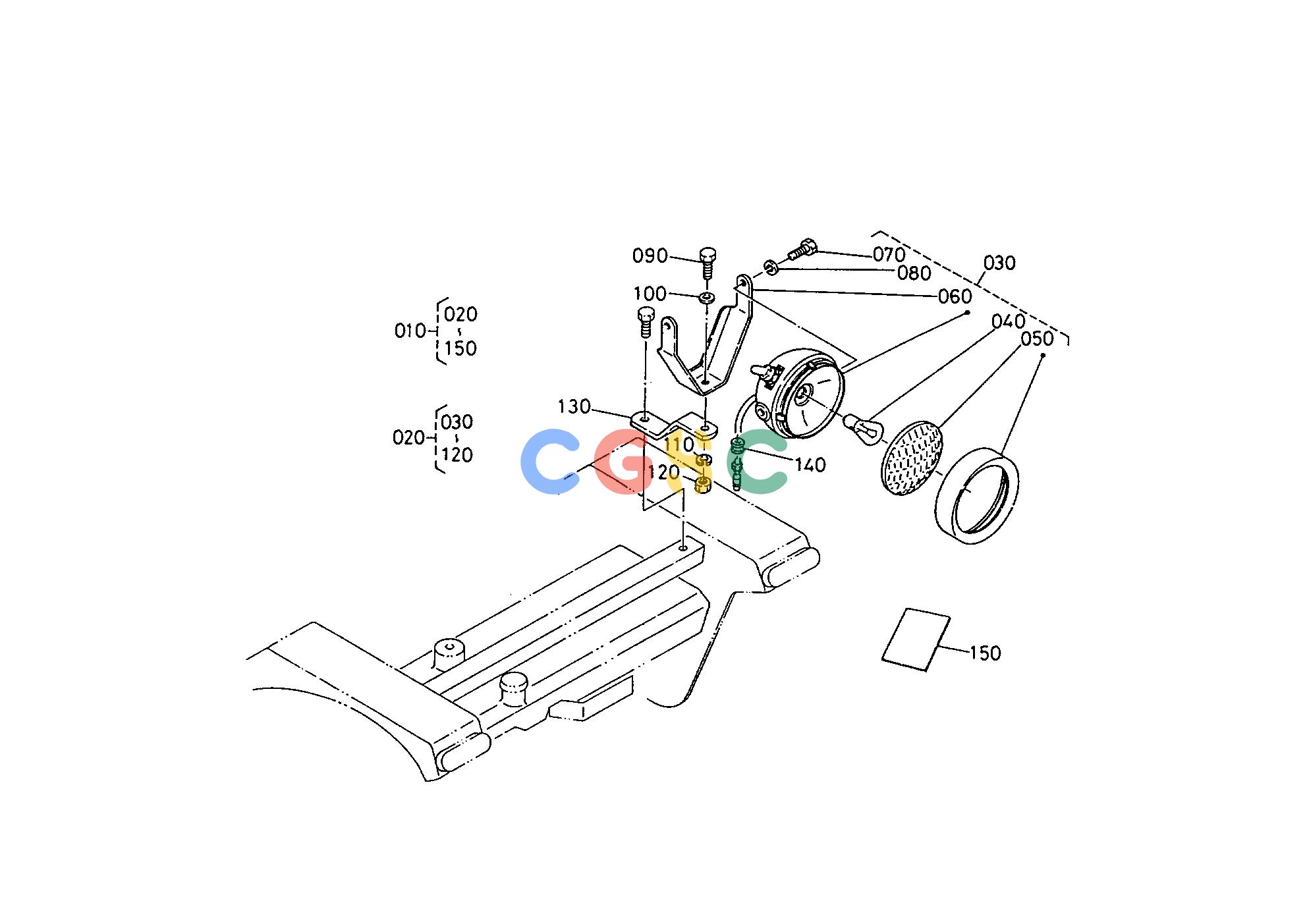

久保田零件查询T11500 WORKING LIGHT [OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
985 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3253096600
|
[1] |
KIT LIGHT WORKING
|
0.0000(lbs); 0.000
|
| 020. |
3582097600
|
[1] |
ASSY LIGHT WORKING
|
1.9800(lbs); 0.900
|
| 030. |
3586175900
|
[1] |
ASSY LIGHT WORKING
|
1.9800(lbs); 0.900
|
| 040. |
6833153360
|
[1] |
BULB LIGHT
|
0.0330(lbs); 0.015
|
| 050. |
6833153310
|
[1] |
LENS LIGHT
|
0.3300(lbs); 0.150
|
| 060. |
3586175910
|
[1] |
STAY WORKING LIGHT
|
0.5500(lbs); 0.250
|
| 070. |
0115350820
|
[2] |
BOLT
|
0.0264(lbs); 0.012
|
| 080. |
0451250080
|
[2] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 090. |
0117351020
|
[1] |
BOLT
|
0.0374(lbs); 0.017
|
| 100. |
0401350100
|
[1] |
WASHER PLAIN
|
0.0088(lbs); 0.004
|
| 110. |
0451250100
|
[1] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 120. |
0211850100
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 130. |
3253096610
|
[1] |
BRACKET
|
0.1540(lbs); 0.070
|
| 140. |
6361152330
|
[1] |
RUBBER SUPPORT
|
0.0220(lbs); 0.010
|
| 150. |
3253096620
|
[1] |
MANUAL STRUCTURE
|
0.0000(lbs); 0.000
|
