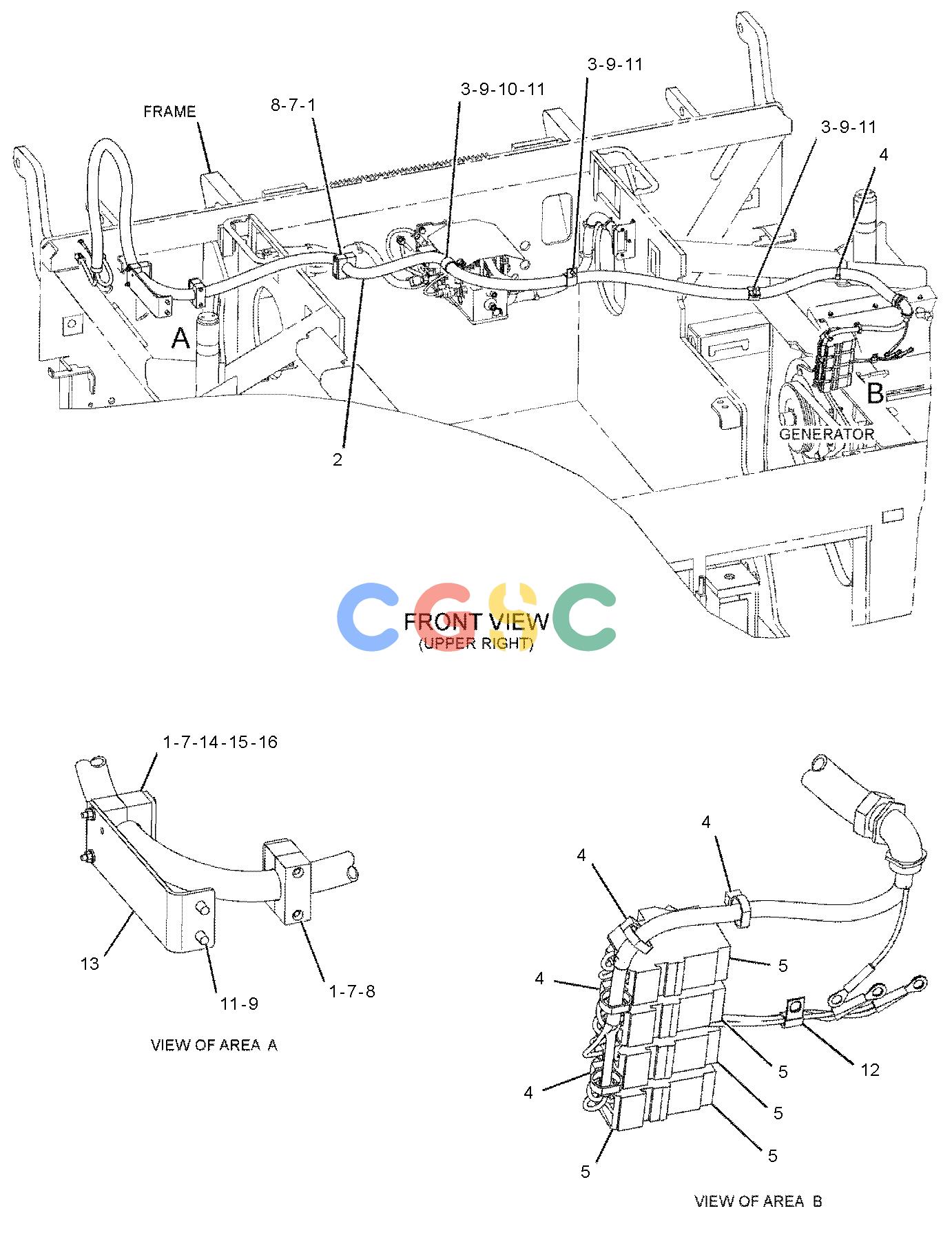

卡特零件查询（AP-655D） 288-2631: WIRING GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
484 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7R-7941 | [6] | CLAMP | |
| 2. | 308-3026Y | [1] | HARNESS AS-SCREED | |
| 3. | 4D-7388 | [3] | CLIP | |
| 4. | 7K-1181B | [5] | STRAP-CABLE | |
| 5. | 254-5092 | [4] | CIRCUIT BREAKER AS(25-AMPERE)(SCREED HEAT) | |
| | | | (EACH INCLUDES) |
| | 2L-8069 | [1] | TERMINAL-RING(2-GA TO 10-GA, 3/8-IN SCREW) | |
| 7. | 7R-7951 | [3] | PLATE | |
| 8. | 7X-2535M | [4] | BOLT(M6X1X60-MM) | |
| 9. | 8T-4121 | [6] | WASHER-HARD(11X21X2.5-MM THK) | |
| 10. | 8T-4133M | [1] | NUT(M10X1.5-THD) | |
| 11. | 8T-4137M | [5] | BOLT(M10X1.5X20-MM) | |
| 12. | 4D-7794 | [1] | CLIP | |
| 13. | 297-2669 | [1] | PLATE | |
| 14. | 8T-4205 | [2] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 15. | 5C-2890M | [2] | NUT(M6X1-THD) | |
| 16. | 8T-6974M | [2] | BOLT(M6X1X80-MM) | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
