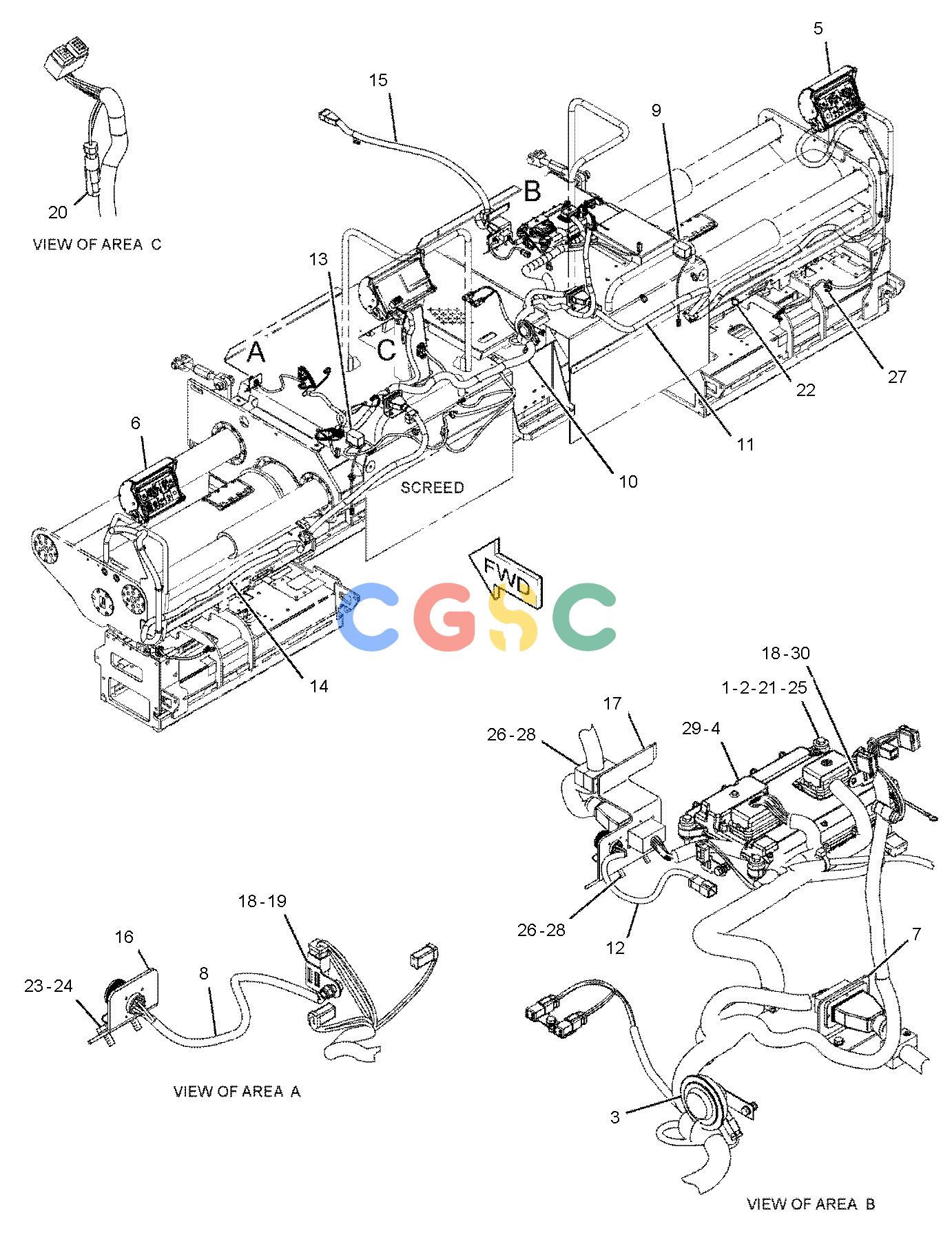

| 1. | 6I-1418 | [4] | SPACER(8.2X12.7X28.7-MM THK) | |
| 2. | 8T-9655 | [8] | MOUNT-ISOLATION(ISOLATION) | |
| 3. | 163-1201 | [1] | HORN AS(24-VOLT, LOW TONE) | |
| 4. | 304-5691 | [1] | CONTROL GP-UNPROGRAMMED(SCREED) | |
| 5. | 286-5562Y | [1] | BOX GP-SCREED CONTROL(RH) | |
| 6. | 288-1014Y | [1] | BOX GP-SCREED CONTROL(LH) | |
| 7. | 288-9418 | [2] | SUPPORT | |
| 8. | 291-3697Y | [1] | WIRING GP-SCREED(LH) | |
| 9. | 291-3698Y | [1] | LAMP GP-SIGNAL(RH) | |
| 10. | 293-4764 | [1] | HARNESS AS-SCREED(MAIN) | |
| | 7X-2537M | [1] | BOLT(M8X1.25X35-MM) | |
| | 237-0336 | [2] | COVER(CONNECTOR) | |
| | 144-1636 | [85] | PIN-CONNECTOR(14-GA TO 18-GA) | |
| | 9X-7144 | [1] | PLUG AS-CONNECTOR(24-PIN) | |
| | 3E-8558M | [1] | BOLT(M5X0.8X39.37-MM) | |
| | 3E-4367 | [1] | RING-RETAINING | |
| | 9X-3265 | [2] | SEAL-CONNECTOR(24-PIN) | |
| | 147-1445 | [1] | PLUG AS-CONNECTOR(70-PIN) | |
| | 147-1446 | [1] | PLUG AS-CONNECTOR(70-PIN) | |
| | | | (EACH PLUG AS-CONNECTOR INCLUDES) |
| | 159-9322 | [1] | SEAL-O-RING | |
| | 155-2255 | [2] | KIT-CONNECTING PLUG(12-PIN) | |
| | 155-2256 | [1] | KIT-CONNECTING PLUG(12-PIN) | |
| | 155-2260 | [1] | KIT-CONNECTING PLUG(3-PIN) | |
| | 155-2270 | [7] | KIT-CONNECTING PLUG(2-PIN) | |
| | 155-2271 | [6] | KIT-CONNECTING PLUG(4-PIN) | |
| | 155-2274 | [1] | KIT-CONNECTING PLUG(6-PIN) | |
| | 174-0503 | [1] | KIT-CONNECTING PLUG(3-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 9G-3695 | [140] | PLUG-SEAL | |
| | 102-8802 | [2] | KIT-RECEPTACLE(2-PIN) | |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | 102-8804 | [3] | KIT-RECEPTACLE(4-PIN) | |
| | | | (EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE) |
| | 9X-1343 | [2] | RECEPTACLE AS-CONNECTOR(40-PIN) | |
| | 9X-7143 | [1] | RECEPTACLE AS-CONNECTOR(24-PIN) | |
| | 126-1766 | [148] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| | 8T-4224 | [1] | WASHER-HARD(8.8X16X2-MM THK) | |
| 11. | 293-4765 | [1] | HARNESS AS-SCREED(RH) | |
| | 8T-4189M | [1] | BOLT(M8X1.25X20-MM) | |
| | 116-0118 | [1] | CLIP | |
| | 9X-0141 | [2] | PLUG AS-CONNECTOR(40-PIN) | |
| | | | (EACH INCLUDES) |
| | 3E-8557M | [1] | BOLT(M5X0.8X39.37-MM) | |
| | 3E-4367 | [1] | RING-RETAINING | |
| | 9X-3490 | [2] | SEAL-CONNECTOR(40-PIN) | |
| | 155-2270 | [1] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (INCLUDE PLUG AS, WEDGE & INTERFACE SEAL) |
| | 9G-3695 | [20] | PLUG-SEAL | |
| | 160-2250G | | SLEEVE-ABRASION(51.2-IN) | |
| | 126-1766 | [62] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| | 9M-1974 | [1] | WASHER-HARD(8.8X16X2-MM THK) | |
| 12. | 293-5341Y | [1] | WIRING GP-SCREED(RH) | |
| 13. | 293-5354Y | [1] | LIGHTING GP-ROADING(LH) | |
| 14. | 293-5775 | [1] | HARNESS AS-SCREED(LH) | |
| | 8T-4189M | [1] | BOLT(M8X1.25X20-MM) | |
| | 116-0118 | [1] | CLIP | |
| | 9X-0141 | [2] | PLUG AS-CONNECTOR(40-PIN) | |
| | | | (EACH INCLUDES) |
| | 3E-8557M | [1] | BOLT(M5X0.8X39.37-MM) | |
| | 3E-4367 | [1] | RING-RETAINING | |
| | 9X-3490 | [2] | SEAL-CONNECTOR(40-PIN) | |
| | 155-2270 | [1] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (INCLUDE PLUG AS, WEDGE & INTERFACE SEAL) |
| | 9G-3695 | [18] | PLUG-SEAL | |
| | 160-2250G | | SLEEVE-ABRASION(51.2-IN) | |
| | 126-1766 | [64] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| | 9M-1974 | [1] | WASHER-HARD(8.8X16X2-MM THK) | |
| 15. | 295-9765 | [1] | HARNESS AS-SCREED(PAVER TO SCREED) | |
| | 9X-7144 | [2] | PLUG AS-CONNECTOR(24-PIN) | |
| | | | (EACH INCLUDES) |
| | 3E-8558M | [1] | BOLT(M5X0.8X39.37-MM) | |
| | 3E-4367 | [1] | RING-RETAINING | |
| | 9X-3265 | [2] | SEAL-CONNECTOR(24-PIN) | |
| | 9G-3695 | [4] | PLUG-SEAL | |
| | 160-2250G | | SLEEVE-ABRASION(52.4-IN) | |
| | 126-1766 | [44] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| 16. | 297-1331 | [1] | SUPPORT | |
| 17. | 299-7218 | [1] | SUPPORT AS | |
| 18. | 130-5300 | [6] | CLIP | |
| 19. | 131-3540M | [4] | LOCKNUT(M8X1.25-THD) | |
| 20. | 134-2540 | [1] | RESISTOR AS-CONNECTION(3-PIN) | |
| 21. | 6V-3964 | [4] | WASHER-HARD(8.8X25.5X5-MM THK) | |
| 22. | 7K-1181 | [25] | STRAP-CABLE | |
| 23. | 8T-4189M | [13] | BOLT(M8X1.25X20-MM) | |
| 24. | 8T-4224 | [17] | WASHER-HARD(8.8X16X2-MM THK) | |
| 25. | 8T-6912M | [4] | BOLT(M8X1.25X50-MM) | |
| 26. | 1R-5396M | [10] | BOLT(M6X1X35-MM) | |
| 27. | 132-5789 | [3] | CLIP(LADDER) | |
| 28. | 139-0428 | [10] | CLAMP | |
| 29. | 296-1288Y | [1] | ELECTRONICS GP-IMPLEMENT | |
| 30. | 314-8922 | [1] | RESISTOR AS-CONNECTION | |
| | G | | ORDER BY THE INCH |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
| | Y | | SEPARATE ILLUSTRATION |
