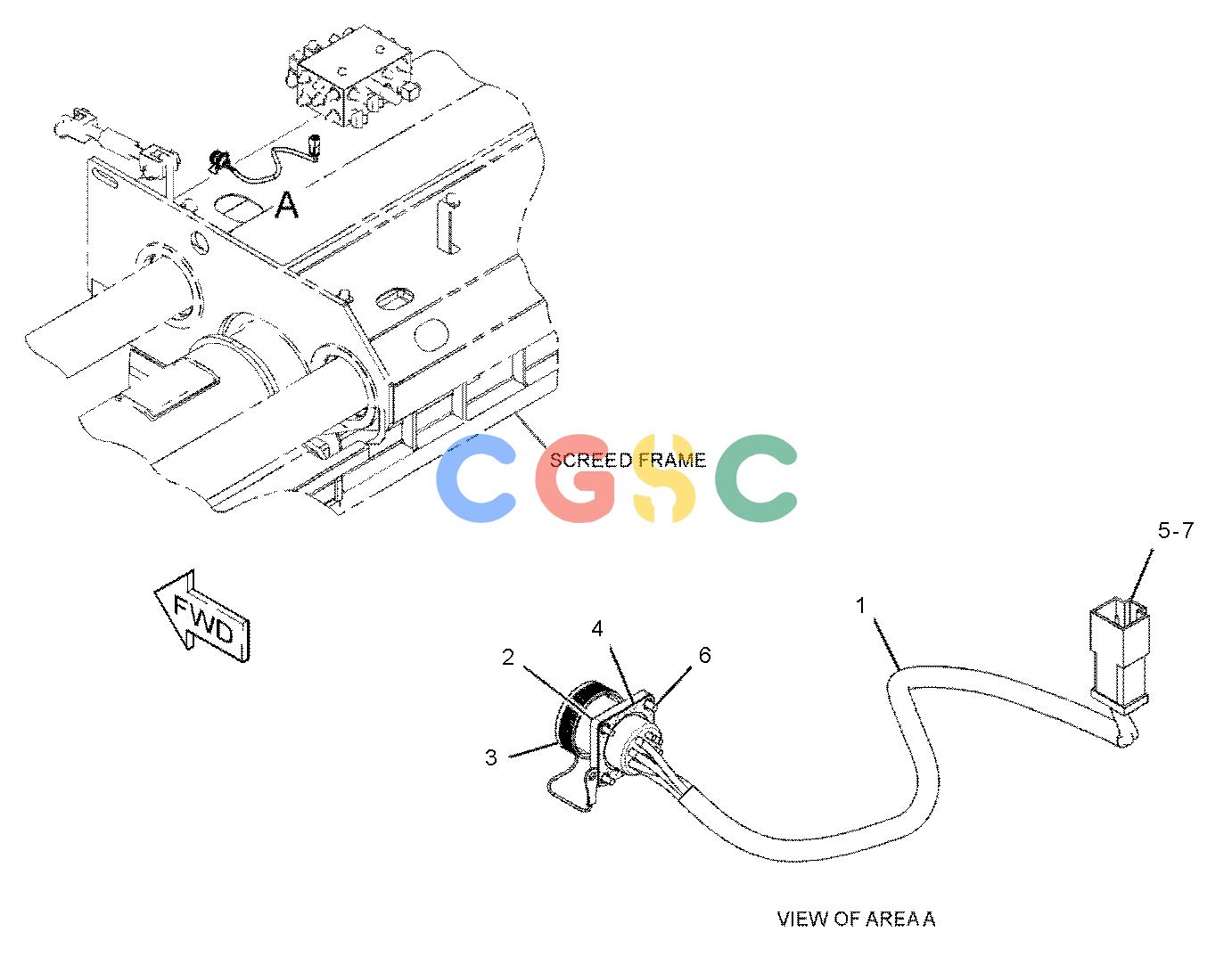

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 5P-5623BD | WIRE-ELECTRICAL(16-GA, BLACK) | ||
| 2. | 5S-3657 | [1] | RECEPTACLE AS-CONNECTOR(10-PIN) | |
| 3. | 7R-3029 | [1] | CAP-DUST | |
| 4. | 131-4888 | [1] | GASKET | |
| 5. | 9X-3401 | [4] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| 6. | 155-4098M | [4] | SCREW-BUTTON HEAD(M3X0.5X1-MM) | |
| 7. | 102-8804 | [1] | KIT-RECEPTACLE(4-PIN) | |
| (INCLUDES RECEPTACLE AS & WEDGE) | ||||
| B | USE AS REQUIRED | |||
| D | ORDER BY THE METER | |||
| M | METRIC PART | |||
