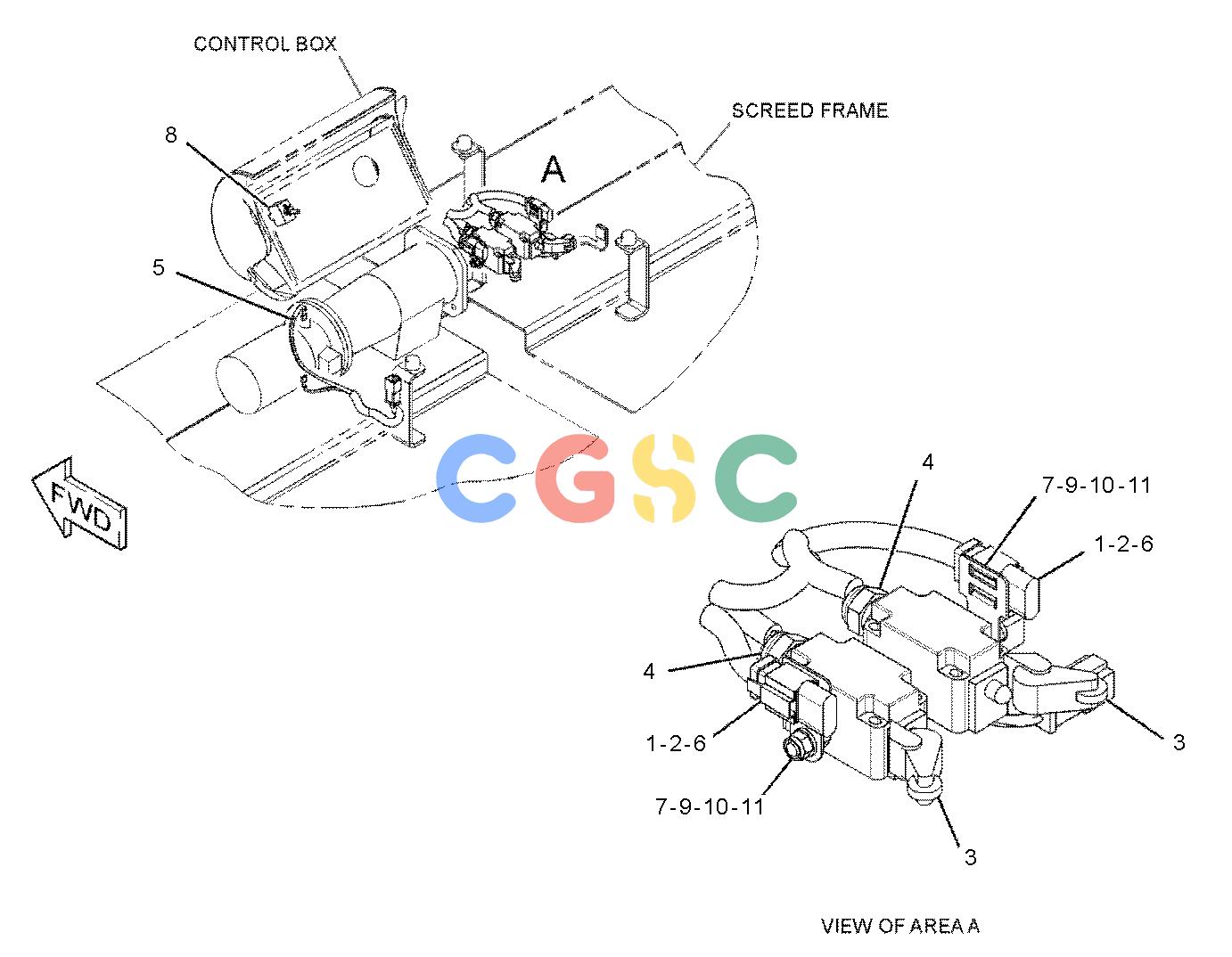

卡特零件查询（AP-655D） 299-7223: WIRING GP-CROWN
广数供应链运营团队, 17 02月, 2025，浏览：
628 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3E-3377 | [2] | WEDGE-RECEPTACLE LOCK(4-PIN) | |
| 2. | 9X-3401 | [8] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| 3. | 309-7504 | [2] | SWITCH-LIMIT(CROWN CONTROL) | |
| 4. | 287-8070 | [2] | LOCK-CABLE | |
| 5. | 304-4668 | [1] | HARNESS AS-SCREED(CROWN) | |
| | 155-2271 | [2] | KIT-CONNECTING PLUG(4-PIN) | |
| | | | (EACH INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 102-8804 | [3] | KIT-RECEPTACLE(4-PIN) | |
| | | | (EACH INCLUDES RECEPTACLE AS & WEDGE) |
| | 126-1766 | [8] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| | 5P-4571 | [2] | TERMINAL-BLADE(14-GA TO 16-GA) | |
| | 144-1636 | [12] | PIN-CONNECTOR(14-GA TO 18-GA) | |
| 6. | 304-4669 | [2] | CONNECTOR(DIODE) | |
| 7. | 130-5300 | [2] | CLIP | |
| 8. | 7N-8008 | [1] | SWITCH AS-TOGGLE(CROWN CONTROL) | |
| | 3L-8187 | [6] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [6] | SCREW-MACHINE(6-32X0.25-IN) | |
| 9. | 131-3540M | [2] | LOCKNUT(M8X1.25-THD) | |
| 10. | 8T-4200M | [2] | BOLT(M8X1.25X16-MM) | |
| 11. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| | M | | METRIC PART |
