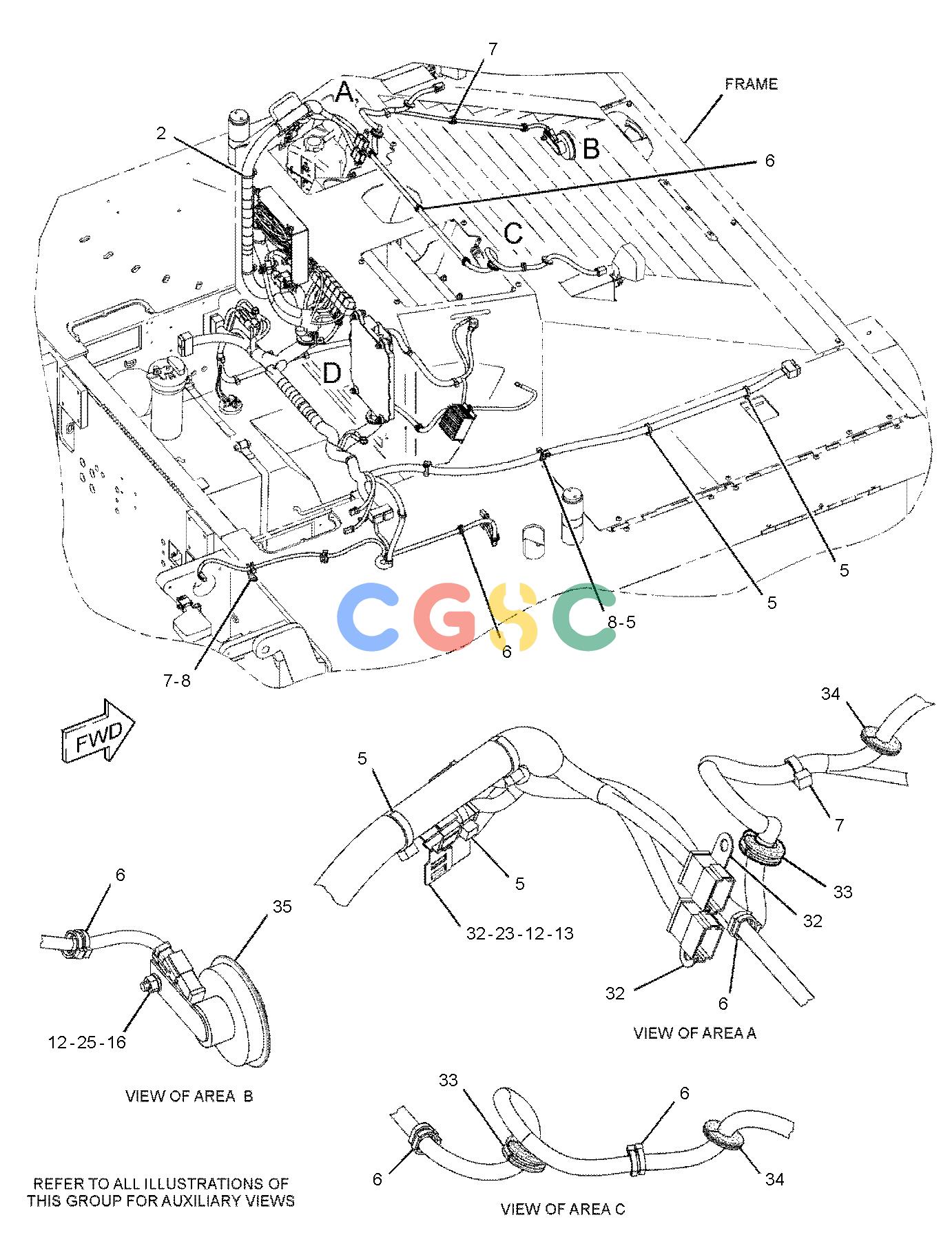

卡特零件查询（AP-655D） 272-7061: WIRING GP-ELECTRONIC CONTROL
广数供应链运营团队, 17 02月, 2025，浏览：
559 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 292-7946Y | [1] | PANEL GP-CIRCUIT BREAKER | |
| 2. | 7K-1181 | [11] | STRAP-CABLE | |
| 3. | 262-1408 | [1] | CONTROL GP-UNPROGRAMMED(MACHINE) | |
| 4. | 132-5789 | [2] | CLIP(LADDER) | |
| 5. | 7K-1181 | [6] | STRAP-CABLE | |
| 6. | 3S-2093 | [22] | STRAP-CABLE | |
| 7. | 7K-1181 | [16] | STRAP-CABLE | |
| 8. | 4P-7429 | [4] | CLIP(LADDER) | |
| 9. | 205-4285 | [1] | CONVERTER-POWER(24-VOLT TO 12-VOLT) | |
| 10. | 231-1389 | [1] | RESISTOR AS(PROPEL, RH) | |
| 11. | 231-1389 | [1] | RESISTOR AS(PROPEL, LH) | |
| | | | (EACH RESISTOR AS INCLUDES) |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 5P-5623D | | WIRE-ELECTRICAL(16-GA, BLACK)(0.3-M) | |
| 12. | 8T-4189M | [6] | BOLT(M8X1.25X20-MM) | |
| 13. | 5P-4116 | [13] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 14. | 8T-9655 | [8] | MOUNT-ISOLATION(ISOLATION) | |
| 15. | 8T-9658 | [4] | SPACER(8.2X12.7X25.4-MM THK) | |
| 16. | 5C-7261M | [11] | NUT(M8X1.25-THD) | |
| 17. | 4B-4863 | [5] | WASHER(4.7X11X1.2-MM THK) | |
| 18. | 8T-3998M | [2] | BOLT(M4X0.7X12-MM) | |
| 19. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 20. | 8T-4244M | [2] | NUT(M12X1.75-THD) | |
| 21. | 9B-1117 | [8] | LOCKWASHER | |
| 22. | 6V-9669M | [4] | SCREW-MACHINE(M3X0.5X8-MM) | |
| 23. | 4P-7581 | [1] | CLIP(LADDER) | |
| 24. | 126-1774 | [2] | COVER-CONNECTOR | |
| 25. | 8T-4224 | [10] | WASHER-HARD(8.8X16X2-MM THK) | |
| 26. | 7X-0818M | [4] | BOLT(M8X1.25X45-MM) | |
| 27. | 3C-6969M | [6] | NUT(M3X0.5-THD) | |
| 28. | 195-4973 | [2] | BRACKET | |
| 29. | 7D-7233 | [1] | CLIP | |
| 30. | 8C-8533 | [1] | CLIP | |
| 31. | 8T-4908M | [2] | BOLT(M8X1.25X25-MM) | |
| 32. | 130-5300 | [5] | CLIP | |
| 33. | 1M-4543 | [2] | GROMMET | |
| 34. | 1P-6522 | [2] | GROMMET | |
| 35. | 163-1201 | [1] | HORN AS(24-VOLT, LOW TONE) | |
| 36. | 7K-1181 | [1] | STRAP-CABLE | |
| 37. | 120-9027M | [2] | SCREW-PAN HEAD(M3X0.5X16-MM) | |
| 38. | 8T-7852M | [3] | BOLT(M4X0.7X10-MM) | |
| 39. | 8T-8799 | [1] | BOOT(RED) | |
| 40. | 286-1830 | [1] | HARNESS AS-POWER | |
| | 8N-1545 | [1] | SOCKET-CONNECTOR(8-GA) | |
| | 8N-1547 | [1] | SOCKET-CONNECTOR(6-GA) | |
| | 127-5483 | [1] | PLUG AS-CONNECTOR(1-PIN) | |
| | 127-5485 | [1] | PLUG AS-CONNECTOR(1-PIN) | |
| | 131-1489 | [2] | TERMINAL AS-RING(6-GA TO 8-GA) | |
| | 131-1492 | [1] | TERMINAL AS-RING(6-GA TO 8-GA) | |
| 41. | 6V-5746D | | TRIM(0.2-M EACH) | |
| | D | | ORDER BY THE METER |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
| | Y | | SEPARATE ILLUSTRATION |
