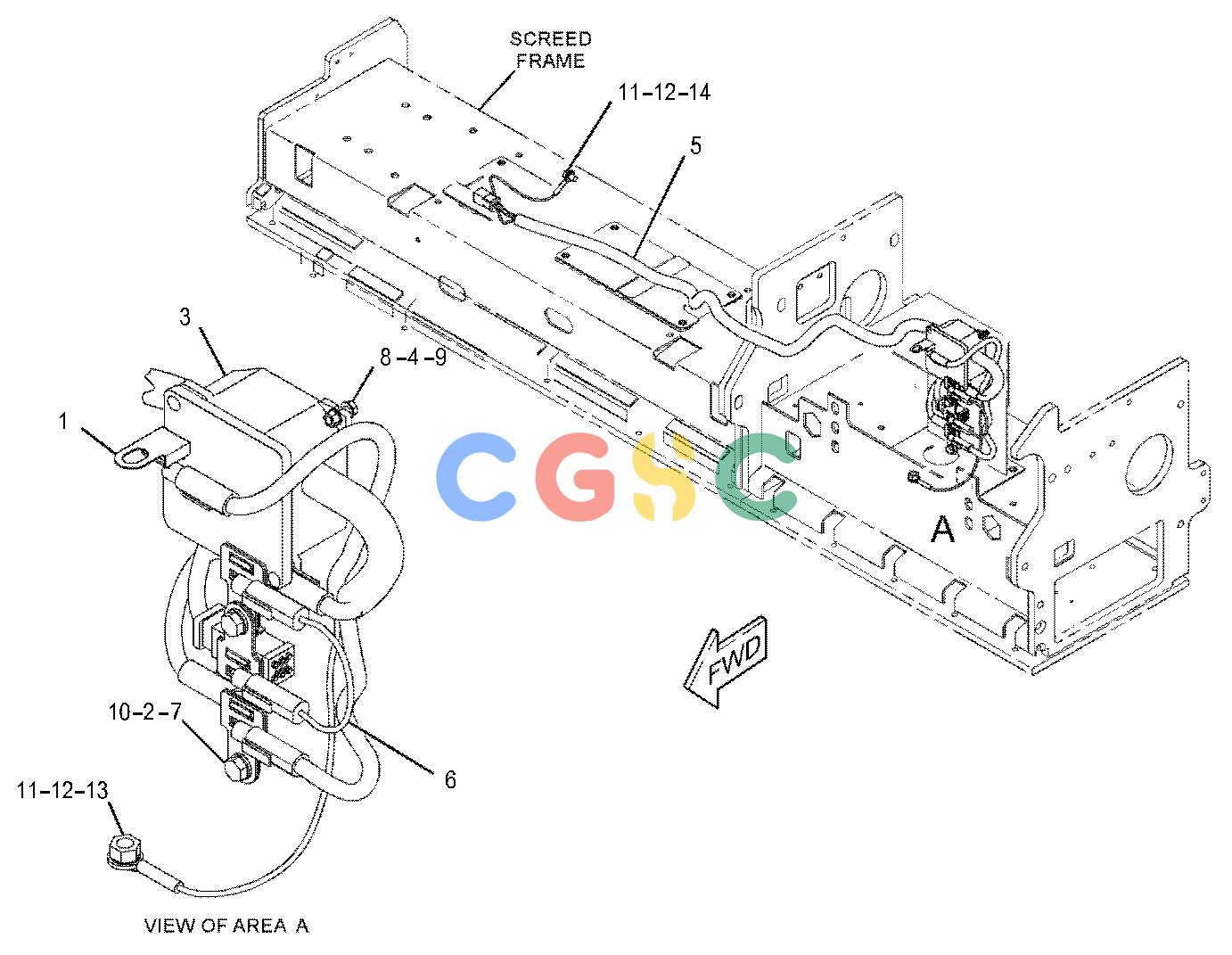

卡特零件查询（AP-655D） 304-9103: WIRING GP-HEATER
广数供应链运营团队, 17 02月, 2025，浏览：
578 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 116-0118 | [1] | CLIP | |
| 2. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 3. | 289-5816Y | [1] | BOX GP-JUNCTION | |
| 4. | 8T-0328 | [4] | WASHER-HARD(5.5X10X1-MM THK) | |
| 5. | 309-7501Y | [1] | HARNESS AS-WIRING(LH) | |
| 6. | 314-8916 | [1] | CABLE AS-POWER | |
| | 129-7163 | [2] | PLUG AS-CONNECTOR(1-PIN) | |
| | 114-8843E | | SLEEVE-PLASTIC(40-CM) | |
| | 8N-1541 | [2] | SOCKET-CONNECTOR(12-GA TO 14-GA) | |
| | 8T-2225E | | TUBE-HEAT SHRINK(25.4-MM DIA)(10-CM) | |
| 7. | 130-5300 | [6] | CLIP | |
| 8. | 7I-2273M | [2] | BOLT(M5X0.8X16-MM) | |
| 9. | 5C-2874M | [2] | NUT(M5X0.8-THD) | |
| 10. | 6V-5217M | [2] | BOLT(M8X1.25X20-MM) | |
| 11. | 7F-6998 | [2] | LOCKWASHER | |
| 12. | 101-3917 | [3] | WASHER(10.5X21X2-MM THK) | |
| 13. | 8T-4133M | [1] | NUT(M10X1.5-THD) | |
| 14. | 6V-8212M | [1] | BOLT(M10X1.5X16-MM) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
