卡特零件查询（AP-655D） 272-7057: WIRING GP-MACHINE
广数供应链运营团队, 17 02月, 2025，浏览：
778 次

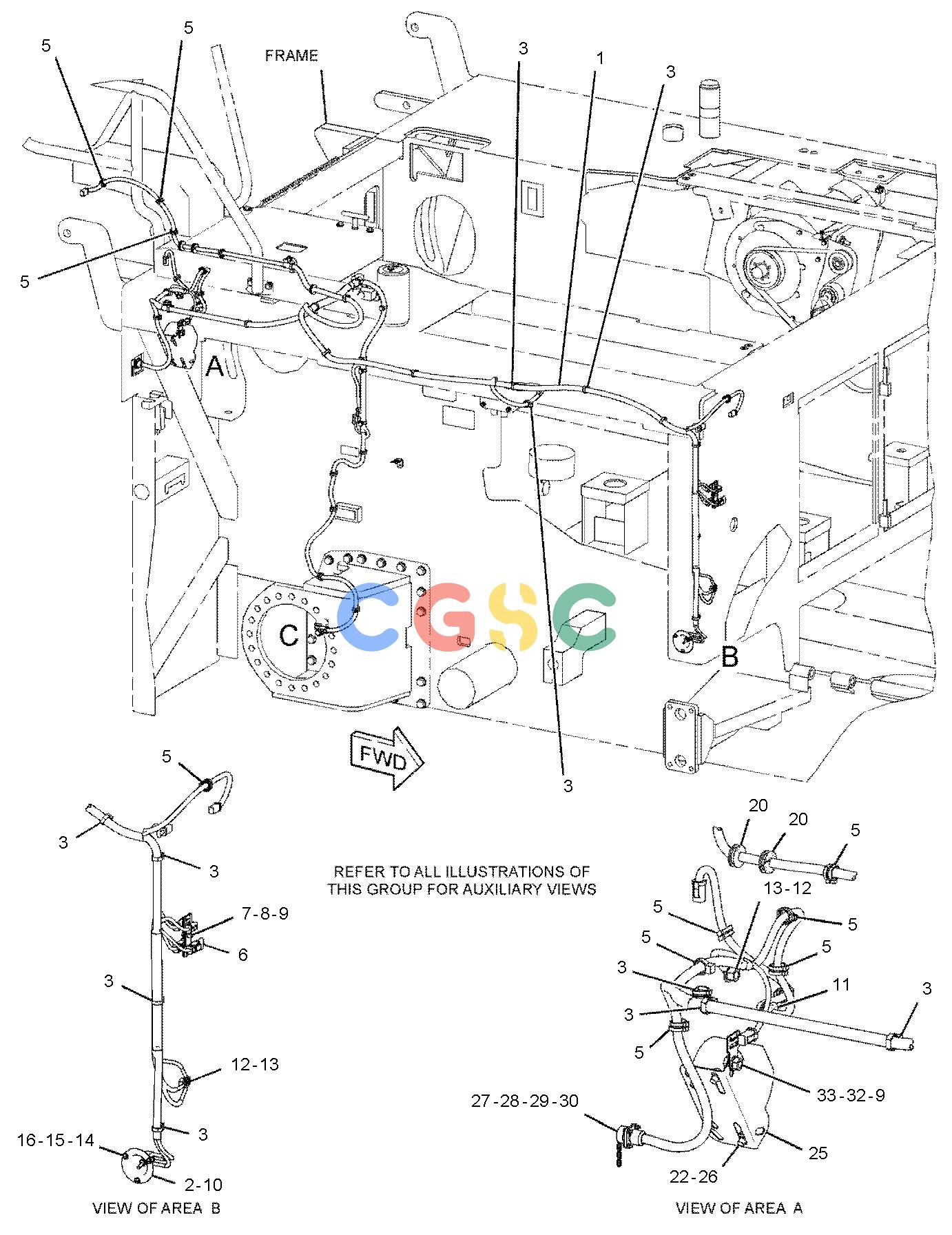

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 272-7058 | [1] | HARNESS AS-CHASSIS(RH) | |
| | 155-2260 | [2] | KIT-CONNECTING PLUG(3-PIN) | |
| | 155-2270 | [11] | KIT-CONNECTING PLUG(2-PIN) | |
| | 155-2271 | [2] | KIT-CONNECTING PLUG(4-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 102-8802 | [4] | KIT-RECEPTACLE(2-PIN) | |
| | 102-8803 | [2] | KIT-RECEPTACLE(3-PIN) | |
| | 102-8804 | [1] | KIT-RECEPTACLE(4-PIN) | |
| | | | (EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE) |
| | 7R-7029 | [1] | CONNECTOR-RECEPTACLE(6-PIN) | |
| | 8T-8737 | [35] | PLUG-SEAL | |
| | 125-7875E | | TUBE-HEAT SHRINK(7.44-MM DIA)(10-CM) | |
| | 7N-7978 | [2] | TERMINAL-FORK(10-GA TO 12-GA, NO. 6 SCREW) | |
| | 5P-2321 | [1] | TERMINAL-FORK(14-GA TO 16-GA, NO. 6 SCREW) | |
| | 131-1492 | [1] | TERMINAL AS-RING(6-GA TO 8-GA) | |
| | 2L-8071 | [3] | TERMINAL-RING(10-GA TO 12-GA, 1/2-IN SCREW) | |
| | 9X-3401 | [24] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 180-9340 | [35] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| | 183-5785 | [1] | RECEPTACLE AS(40-PIN) | |
| 2. | 112-3101 | [1] | PLATE-FACE | |
| 3. | 7K-1181 | [20] | STRAP-CABLE | |
| 4. | 8T-4137M | [1] | BOLT(M10X1.5X20-MM) | |
| 5. | 3S-2093 | [32] | STRAP-CABLE | |
| 6. | 189-3158 | [2] | SUPPRESSOR-ARC | |
| 7. | 8T-4200M | [1] | BOLT(M8X1.25X16-MM) | |
| 8. | 5P-4116 | [1] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 9. | 130-5300 | [5] | CLIP | |
| 10. | 9G-0011 | [1] | SWITCH AS-TOGGLE(FLOW CONTROL) | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6V-8374 | [3] | SCREW-MACHINE(6-32X0.25-IN) | |
| | 3L-8187 | [3] | LOCKWASHER | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| 11. | 5D-7635 | [1] | GROMMET | |
| 12. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 13. | 8T-4244M | [2] | NUT(M12X1.75-THD) | |
| 14. | 4B-4274 | [3] | WASHER(5.5X13X1.2-MM THK) | |
| 15. | 2N-3480 | [3] | SCREW-MACHINE(10-24X0.75-IN) | |
| 16. | 4B-2047 | [3] | NUT(10-24-THD) | |
| 17. | 5C-8312M | [4] | NUT(M4X0.7-THD) | |
| 18. | 096-6166 | [4] | WASHER-HARD(4.5X9X1-MM THK) | |
| 19. | 6V-9672M | [4] | SCREW-MACHINE(M4X0.7X16-MM) | |
| 20. | 7G-7053 | [3] | GROMMET | |
| 21. | 8T-4186M | [1] | BOLT(M10X1.5X40-MM) | |
| 22. | 8T-4121 | [5] | WASHER-HARD(11X21X2.5-MM THK) | |
| 23. | 116-0118 | [1] | CLIP(SLOT) | |
| 24. | 9R-5383 | [1] | BOSS | |
| 25. | 220-0230 | [1] | ALARM AS(BACKUP) | |
| | 9X-1813E | | SLEEVE(29-CM) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 5P-5623D | | WIRE-ELECTRICAL(16-GA, BLACK)(0.8-M) | |
| | 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| 26. | 7X-2621M | [2] | BOLT(M10X1.5X12-MM) | |
| 27. | 6V-9671M | [4] | SCREW-MACHINE(M3X0.5X12-MM) | |
| 28. | 9B-1117 | [4] | LOCKWASHER | |
| 29. | 3C-6969M | [4] | NUT(M3X0.5-THD) | |
| 30. | 8D-9537 | [1] | CAP-DUST | |
| 31. | 156-6175 | [1] | CLIP(LADDER) | |
| 32. | 8T-4133M | [1] | NUT(M10X1.5-THD) | |
| 33. | 8T-4191M | [1] | BOLT(M10X1.5X16-MM) | |
| | D | | ORDER BY THE METER |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
