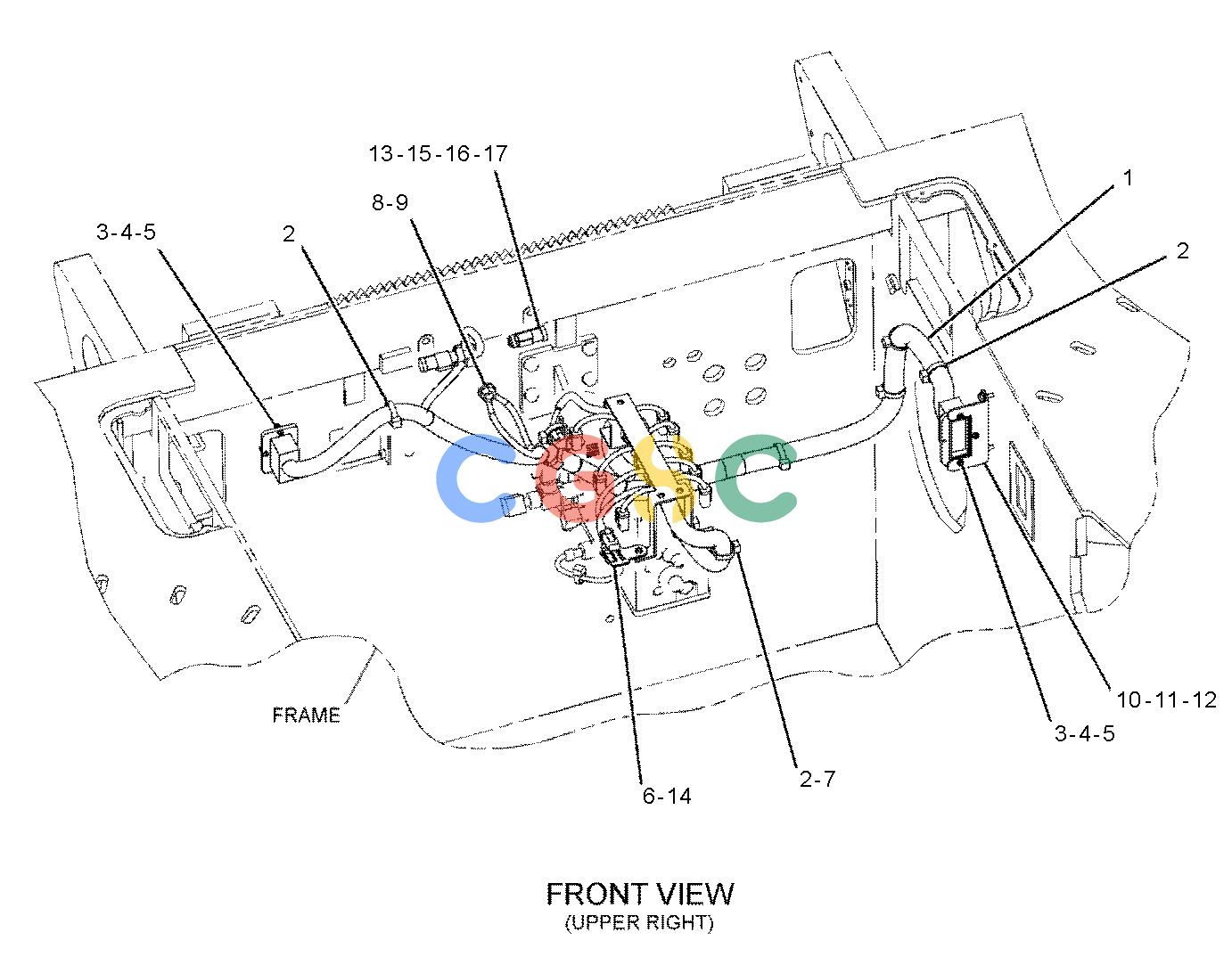

卡特零件查询（AP-655D） 272-7059: WIRING GP-MACHINE
广数供应链运营团队, 17 02月, 2025，浏览：
462 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 339-2593 | [1] | HARNESS AS-REAR CHASSIS | |
| | 9X-3401 | [59] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | | | -OR- |
| | 126-1767 | [59] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| | 155-2260 | [2] | KIT-CONNECTING PLUG(3-PIN) | |
| | 155-2270 | [9] | KIT-CONNECTING PLUG(2-PIN) | |
| | 174-0503 | [1] | KIT-CONNECTING PLUG(3-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 8T-8737 | [10] | PLUG-SEAL | |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 9X-7143 | [1] | RECEPTACLE AS-CONNECTOR(24-PIN) | |
| | 183-5785 | [1] | RECEPTACLE AS(40-PIN) | |
| | 180-9340 | [25] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| | 2L-8071 | [2] | TERMINAL-RING(10-GA TO 12-GA, 1/2-IN SCREW) | |
| | 119-3662E | | TUBE-HEAT SHRINK(10.85-MM DIA)(13-CM) | |
| | 125-7875E | | TUBE-HEAT SHRINK(7.44-MM DIA)(10-CM) | |
| 2. | 7K-1181 | [14] | STRAP-CABLE | |
| 3. | 6V-9672M | [7] | SCREW-MACHINE(M4X0.7X16-MM) | |
| 4. | 096-6166 | [7] | WASHER-HARD(4.5X9X1-MM THK) | |
| 5. | 5C-8312M | [7] | NUT(M4X0.7-THD) | |
| 6. | 283-8045 | [1] | PLATE AS | |
| 7. | 132-5789 | [2] | CLIP(LADDER) | |
| 8. | 8T-4244M | [1] | NUT(M12X1.75-THD) | |
| 9. | 8T-4223 | [1] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 10. | 5C-9553M | [2] | BOLT(M6X1X16-MM) | |
| 11. | 8T-4205 | [2] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 12. | 235-3518 | [1] | PLATE | |
| 13. | 134-2540 | [1] | RESISTOR AS-CONNECTION(3-PIN) | |
| 14. | 130-5300 | [2] | CLIP | |
| 15. | 155-2260 | [1] | KIT-CONNECTING PLUG(3-PIN) | |
| | | | (INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| 16. | 8T-8737 | [3] | PLUG-SEAL | |
| 17. | 174-0503 | [1] | KIT-CONNECTING PLUG(3-PIN) | |
| | | | (INCLUDES PLUG AS, WEDGES & INTERFACE SEAL) |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
