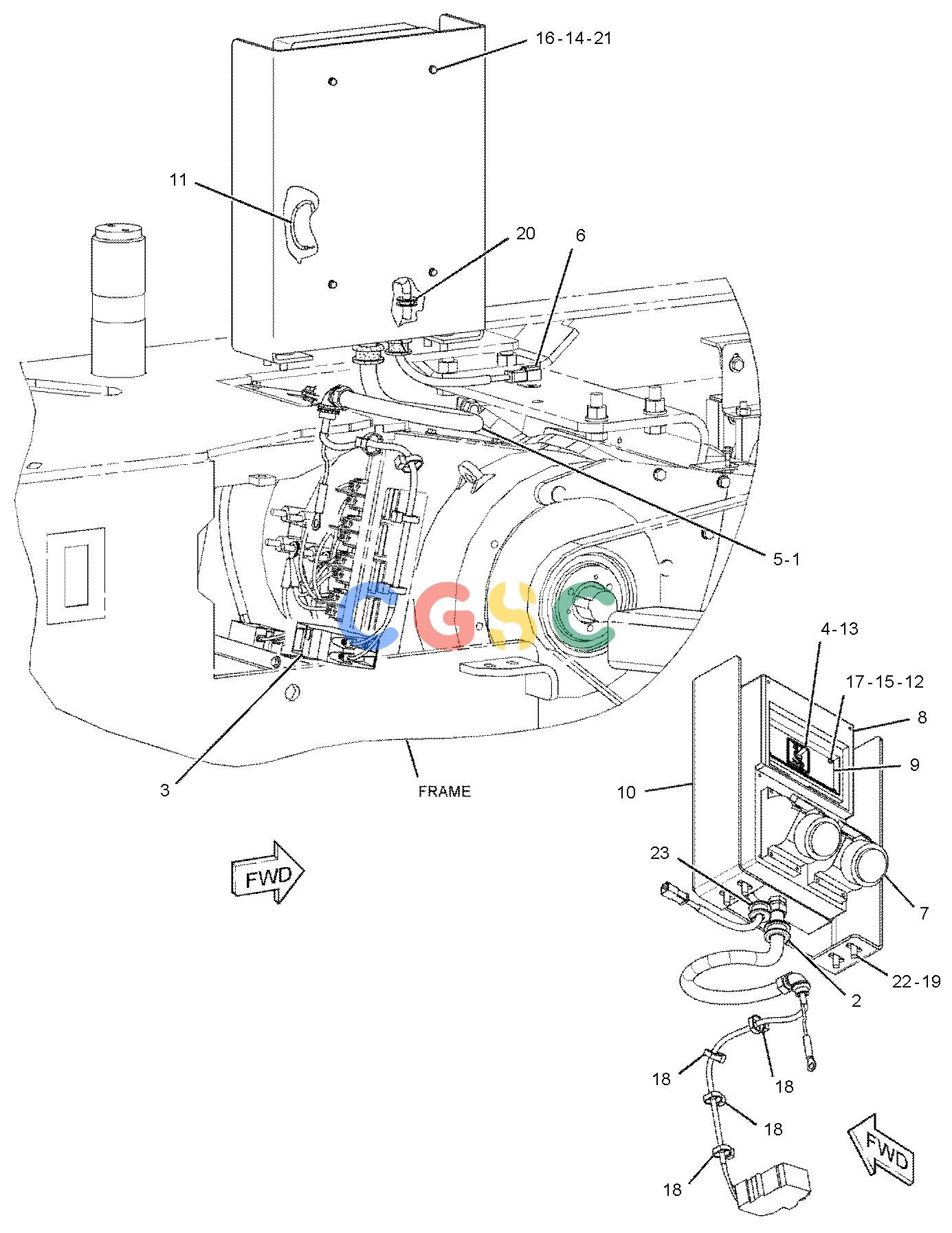

卡特零件查询（AP-655D） 299-5205: WIRING GP-PANEL
广数供应链运营团队, 17 02月, 2025，浏览：
677 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6Y-6815 | [1] | GASKET AS(CONNECTOR) | |
| 2. | 246-8370 | [1] | GROMMET | |
| 3. | 254-5092 | [1] | CIRCUIT BREAKER AS(25-AMPERE)(ALTERNATOR) | |
| | 2L-8069 | [1] | TERMINAL-RING(2-GA TO 10-GA, 3/8-IN SCREW) | |
| 4. | 286-7243 | [1] | FILM-INSTRUCTION(HOLD FREQUENCY, READ OMM) | |
| 5. | 299-5202 | [1] | CABLE AS | |
| 6. | 300-9957 | [1] | HARNESS AS-SWITCH | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 5P-2321 | [2] | TERMINAL-FORK(14-GA TO 16-GA, NO. 6 SCREW) | |
| | 180-9339 | [2] | PIN-CONNECTOR(14-GA TO 18-GA) | |
| 7. | 301-0070 | [2] | RECEPTACLE | |
| 8. | 301-0072 | [1] | ENCLOSURE GP-ELECTRICAL | |
| 9. | 301-0073 | [1] | BRACKET | |
| 10. | 301-0074 | [1] | PLATE | |
| 11. | 310-8549 | [2] | HARNESS AS-WIRING | |
| | | | (EACH INCLUDES) |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 5P-2321 | [2] | TERMINAL-FORK(14-GA TO 16-GA, NO. 6 SCREW) | |
| | 180-9339 | [2] | PIN-CONNECTOR(14-GA TO 18-GA) | |
| 12. | 3B-4501 | [4] | LOCKWASHER | |
| 13. | 4D-1836 | [1] | SWITCH-TOGGLE | |
| 14. | 5C-2874M | [4] | NUT(M5X0.8-THD) | |
| 15. | 5C-8312M | [4] | NUT(M4X0.7-THD) | |
| 16. | 7I-2273M | [4] | BOLT(M5X0.8X16-MM) | |
| 17. | 6V-5210M | [4] | SCREW-MACHINE(M4X0.7X10-MM) | |
| 18. | 7K-1181 | [4] | STRAP-CABLE | |
| 19. | 7X-7729 | [4] | WASHER(11X25X3-MM THK) | |
| 20. | 8P-8540 | [1] | GROMMET | |
| 21. | 8T-0328 | [8] | WASHER-HARD(5.5X10X1-MM THK) | |
| 22. | 8T-4136M | [4] | BOLT(M10X1.5X25-MM) | |
| 23. | 9G-4191 | [1] | GROMMET | |
| | M | | METRIC PART |
