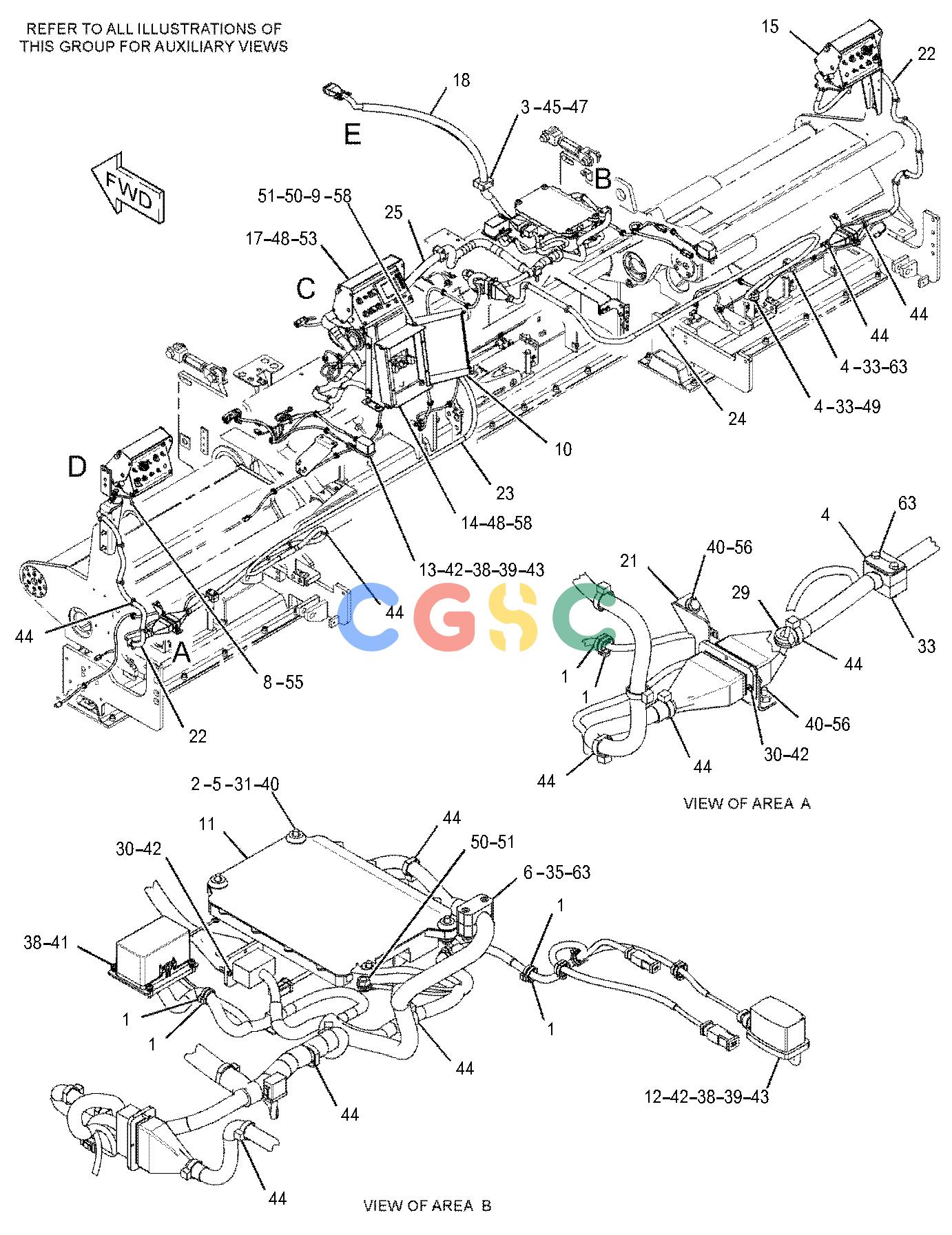

卡特零件查询（AP-655D） 351-0903: WIRING GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
484 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [70] | STRAP-CABLE | |
| 2. | 6I-1418 | [4] | SPACER(8.2X12.7X28.7-MM THK) | |
| 3. | 7R-7951 | [1] | PLATE | |
| 4. | 7V-5628 | [3] | PLATE | |
| 5. | 8T-9655 | [8] | MOUNT-ISOLATION(ISOLATION) | |
| 6. | 143-9644 | [3] | PLATE-RETAINER | |
| 7. | 163-1201 | [1] | HORN AS(24-VOLT, LOW TONE) | |
| 8. | 203-3977 | [2] | LEVER | |
| 9. | 236-5149 | [2] | WASHER-NYLON(11.17X19.05X1.6MM THK) | |
| 10. | 276-4615 | [1] | COVER | |
| 11. | 304-5687 | [1] | CONTROL GP-UNPROGRAMMED(ACCUGRADE) | |
| 12. | 327-6125 | [1] | LAMP GP-SIGNAL(24-VOLT, RH) | |
| 13. | 327-8515 | [1] | LAMP GP-SIGNAL(24-VOLT, LH) | |
| 14. | 350-5943 | [1] | SUPPORT AS | |
| 15. | 352-0657Y | [1] | BOX GP-CONTROL(RH) | |
| 16. | 352-0658Y | [1] | BOX GP-CONTROL(LH) | |
| 17. | 352-0659Y | [1] | BOX GP-CONTROL(SCREED) | |
| 18. | 352-0668Y | [1] | HARNESS AS-SCREED(PAVER TO SCREED) | |
| 19. | 356-5491 | [1] | COVER AS | |
| 20. | 356-6008 | [1] | BRACKET AS | |
| 21. | 356-7861 | [2] | PLATE AS | |
| 22. | 362-6636Y | [2] | HARNESS AS-CONTROL(SCREED) | |
| 23. | 362-6637Y | [1] | HARNESS AS-SCREED(EXTENDER, LH) | |
| 24. | 362-6638Y | [1] | HARNESS AS-SCREED(EXTENDER, RH) | |
| 25. | 362-6639Y | [1] | HARNESS AS-SCREED(MAIN) | |
| 26. | 362-8408 | [2] | MOUNT AS | |
| 27. | 362-8411 | [2] | BRACKET AS | |
| 28. | 367-1953 | [2] | BRACKET | |
| 29. | 061-8844 | [1] | GROMMET | |
| 30. | 096-6166 | [10] | WASHER-HARD(4.5X9X1-MM THK) | |
| 31. | 099-3649M | [4] | BOLT(M8X1.25X40-MM) | |
| 32. | 139-0428 | [2] | CLAMP | |
| 33. | 1G-9959 | [6] | CLAMP | |
| 34. | 206-1511 | [2] | CLAMP-HALF | |
| 35. | 208-0075 | [2] | CLAMP-HALF | |
| 36. | 352-3968 | [1] | CLIP | |
| 37. | 352-3969 | [2] | CLIP(LADDER) | |
| 38. | 4B-4863 | [8] | WASHER(4.7X11X1.2-MM THK) | |
| 39. | 5C-8312M | [8] | NUT(M4X0.7-THD) | |
| 40. | 5P-4116 | [14] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 41. | 6V-7978 | [4] | SCREW-MACHINE(10-32X0.375-IN) | |
| 42. | 6V-9491M | [12] | SCREW-MACHINE(M4X0.7X20-MM) | |
| 43. | 6V-9672M | [2] | SCREW-MACHINE(M4X0.7X16-MM) | |
| 44. | 7K-1181 | [49] | STRAP-CABLE | |
| 45. | 7R-7941 | [2] | CLAMP | |
| 46. | 7X-2534M | [4] | BOLT(M6X1X50-MM) | |
| 47. | 7X-2535M | [2] | BOLT(M6X1X60-MM) | |
| 48. | 7X-7729 | [14] | WASHER(11X25X3-MM THK) | |
| 49. | 8C-8451M | [2] | BOLT(M6X1X40-MM) | |
| 50. | 8T-4121 | [6] | WASHER-HARD(11X21X2.5-MM THK) | |
| 51. | 8T-4133M | [6] | NUT(M10X1.5-THD) | |
| 52. | 8T-4136M | [4] | BOLT(M10X1.5X25-MM) | |
| 53. | 8T-4137M | [6] | BOLT(M10X1.5X20-MM) | |
| 54. | 8T-4139M | [4] | BOLT(M12X1.75X30-MM) | |
| 55. | 8T-4179M | [2] | BOLT(M12X1.75X20-MM) | |
| 56. | 8T-4189M | [6] | BOLT(M8X1.25X20-MM) | |
| 57. | 8T-4191M | [1] | BOLT(M10X1.5X16-MM) | |
| 58. | 8T-4195M | [6] | BOLT(M10X1.5X30-MM) | |
| 59. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 60. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 61. | 8T-4908M | [4] | BOLT(M8X1.25X25-MM) | |
| 62. | 8T-7547M | [4] | BOLT(M8X1.25X30-MM) | |
| 63. | 9X-2480M | [6] | BOLT(M6X1X45-MM) | |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
| | Y | | SEPARATE ILLUSTRATION |
